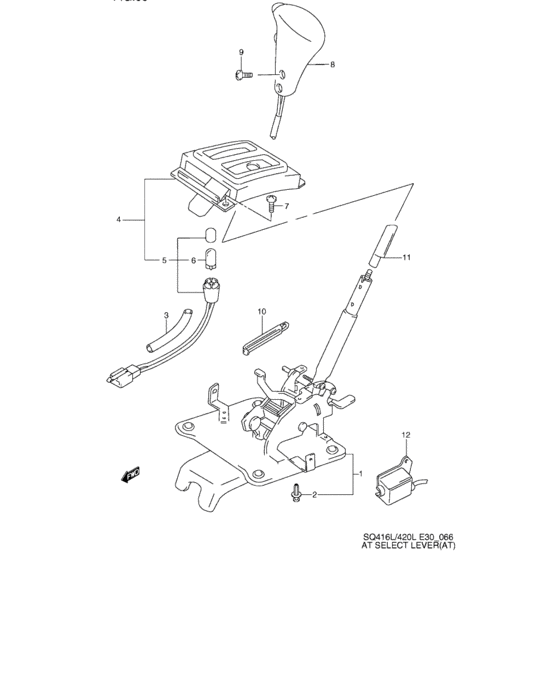

At select lever (AT) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-65D10-000
LEVER ASSY,SELECT
|
28110-65D10-000 |
— | ||
|
2
|
2
09409-06313-000 CLIP |
09409-06313-000 |
from US $3.20 |
||
|
3
|
3
28118-64B60-000
チューブ,スイッチワイヤ
|
28118-64B60-000 |
— | ||
| replacement | |||||
|
3
|
3
28118-64B61-000 TUBE,SWITCH WIRE HARNESS |
28118-64B61-000 |
US $1.88 |
||
|
4
|
4
28150-65D10-000 INDICATOR ASSY,SELECT LEVER |
28150-65D10-000 |
US $125.60 |
||
|
5
|
5
28180-65D10-000 LAMP ASSY,ILLUM |
28180-65D10-000 |
US $13.17 |
||
|
6
|
6
09471-12077-000 BULB(12V1.7W,T10,WB121) |
09471-12077-000 |
from US $1.52 |
||
|
7
|
7
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
8
|
8
28160-65D10-5PK
ノブアッシ,セレクトレバー(ブラック)
|
28160-65D10-5PK |
— | ||
| replacements | |||||
|
8
|
8
28160-65D10-000
KNOB ASSY,SEL LEVER
|
28160-65D10-000 |
— | ||
|
8
|
8
28160-65D11-000 KNOB ASSY,SEL LEVER |
28160-65D11-000 |
US $78.75 |
||
|
9
|
9
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
10
|
10
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
11
|
11
28164-62B50-000 GUIDE,DETENT RELEASE ROD |
28164-62B50-000 |
US $6.18 |
||
|
12
|
12
28610-65D10-000
ソレノイド,シフトロック
|
28610-65D10-000 |
— | ||
| replacement | |||||
|
12
|
12
28610-76G30-000 SOLENOID,SHIFT LOCK |
28610-76G30-000 |
US $62.93 |
||
