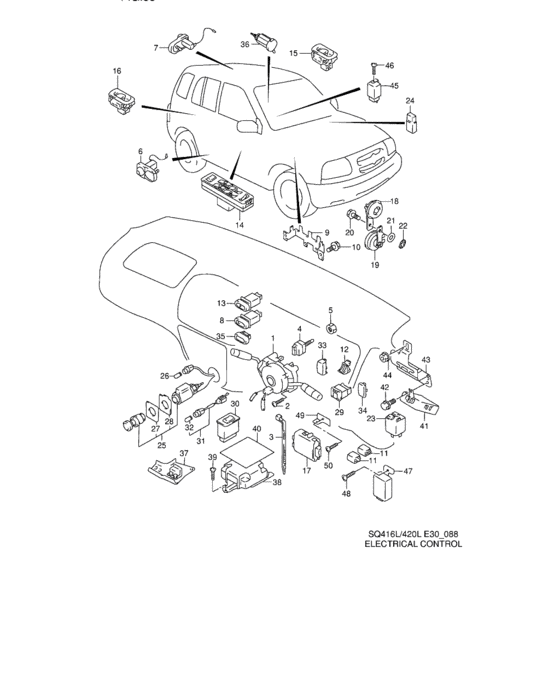

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-65D20-000
SWITCH ASSY,COMB
N/AIR BAG |
37400-65D20-000 |
— | ||
|
1
|
1
37400-65D30-000 SWITCH ASSY,COMBW/AIR BAG |
37400-65D30-000 |
US $1,257.04 |
||
|
2
|
2
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
4
|
4
37740-60A20-000
スイッチアッシ,ストップランプ/ロックアップ
AT |
37740-60A20-000 |
— | ||
| replacement | |||||
|
4
|
4
37740-60G10-000 SWITCH ASSY,STOP LAMPAT |
37740-60G10-000 |
US $61.60 |
||
|
5
|
5
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
6
|
6
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
7
|
7
37670-65D00-000
Switch assy,door
|
37670-65D00-000 |
— | ||
| replacement | |||||
|
7
|
7
37670-65D01-000 SWITCH ASSY,DOOR |
37670-65D01-000 |
from US $8.75 |
||
|
8
|
8
37860-64G00-000 SWITCH ASSY,RR DEFOGGER |
37860-64G00-000 |
US $52.62 |
||
|
9
|
9
33458-77E00-000
ブラケット,リレー
|
33458-77E00-000 |
— | ||
| replacement | |||||
|
9
|
9
33458-77E01-000
BRACKET,MONITOR CONNECTOR
|
33458-77E01-000 |
— | ||
|
10
|
10
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
38860-65D00-000
Relay, fuel pump
|
38860-65D00-000 |
— | ||
| replacement | |||||
|
11
|
11
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $24.91 |
||
|
12
|
12
37285-64G00-000 CASE,COIN |
37285-64G00-000 |
US $9.60 |
||
|
13
|
13
37430-64G00-000 SWITCH ASSY,HAZARD WARNING |
37430-64G00-000 |
US $52.62 |
||
|
14
|
14
37990-65D00-T01
スイッチアッシ,パワーウィンド,マスタ(グレー)
|
37990-65D00-T01 |
— | ||
| replacement | |||||
|
14
|
14
37990-65D01-T01 SWITCH ASSY,P/W MASTER |
37990-65D01-T01 |
US $287.04 |
||
|
15
|
15
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $65.66 |
||
|
16
|
16
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $65.66 |
||
|
17
|
17
38700-60G00-000 CONTROLLER ASSY,DR LOCK |
38700-60G00-000 |
US $239.20 |
||
|
18
|
18
38500-65D30-000
ホーンアッシ,ハイピッチド
|
38500-65D30-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-65D31-000 HORN ASSY |
38500-65D31-000 |
US $44.16 |
||
|
19
|
19
38500-65D10-000
ホーンアッシ,ローピッチド
|
38500-65D10-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-65D50-000 HORN ASSY,LOW PITCHED |
38500-65D50-000 |
US $73.97 |
||
|
20
|
20
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
20
|
20
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
21
|
21
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
22
|
22
38570-65D00-000 STOPPER,HORN |
38570-65D00-000 |
US $1.62 |
||
|
23
|
23
38610-84001-000
リレー,ターンシグナル/4ウェイ
|
38610-84001-000 |
— | ||
| replacement | |||||
|
23
|
23
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
24
|
24
38860-70E20-000 RELAY ASSY,HORN |
38860-70E20-000 |
US $29.60 |
||
|
25
|
25
39400-86821-000 LIGHTER ASSY,CIGARETTE |
39400-86821-000 |
US $27.20 |
||
|
26
|
26
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
27
|
27
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
28
|
28
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
29
|
29
37950-75F00-000 SWITCH ASSY,MIRROR |
37950-75F00-000 |
US $60.05 |
||
|
30
|
30
37865-65D00-000
SWITCH ASSY,AT MODE
AT |
37865-65D00-000 |
— | ||
|
31
|
31
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
US $21.90 |
||
|
32
|
32
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
33
|
33
37285-75F00-000 CAP,OPTION SW HOLE |
37285-75F00-000 |
US $2.28 |
||
|
34
|
34
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
US $2.80 |
||
|
35
|
35
37285-65D00-000 CAP,OPTION SW HOLE |
37285-65D00-000 |
US $2.24 |
||
|
36
|
36
39410-60A00-000
ソケットアッシ
|
39410-60A00-000 |
— | ||
| replacement | |||||
|
36
|
36
39410-60A01-000 SOCKET ASSY |
39410-60A01-000 |
US $33.60 |
||
|
37
|
37
33945-70E10-000
センサアッシ,G
W/ABS |
33945-70E10-000 |
— | ||
| replacement | |||||
|
37
|
37
33945-70E11-000 SENSOR ASSY,GW/ABS |
33945-70E11-000 |
US $401.28 |
||
|
38
|
38
38910-65D11-000
CONTROLLER ASSY,AIR BAG
W/AIR BAG |
38910-65D11-000 |
— | ||
|
39
|
39
09115-06003-000 BOLT(6X16)W/AIR BAG |
09115-06003-000 |
US $10.70 |
||
|
40
|
40
38912-77E00-000
COVER,CONTROLLER
W/AIR BAG |
38912-77E00-000 |
— | ||
|
41
|
41
38885-65D00-000
コントローラアッシ,4WD
|
38885-65D00-000 |
— | ||
| replacement | |||||
|
41
|
41
38885-65D02-000
CONTROLLER,4WD
|
38885-65D02-000 |
— | ||
|
42
|
42
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
42
|
42
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
43
|
43
33946-65D01-000
BRACKET,CONT
|
33946-65D01-000 |
— | ||
|
44
|
44
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
44
|
44
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
45
|
45
38650-65D00-000 RELAY ASSY,RR WIPER |
38650-65D00-000 |
US $84.64 |
||
|
46
|
46
03141-05083-000
Screw
|
03141-05083-000 |
— | ||
| replacement | |||||
|
46
|
46
03141-0508A-000 SCREW |
03141-0508A-000 |
US $7.70 |
||
|
47
|
47
37190-65D00-000 CONTROLLER ASSY,KEY LESS |
37190-65D00-000 |
US $185.84 |
||
|
48
|
48
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
48
|
48
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
49
|
49
38701-65D10-000
BRACKET,CONT
|
38701-65D10-000 |
— | ||
|
50
|
50
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
50
|
50
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
