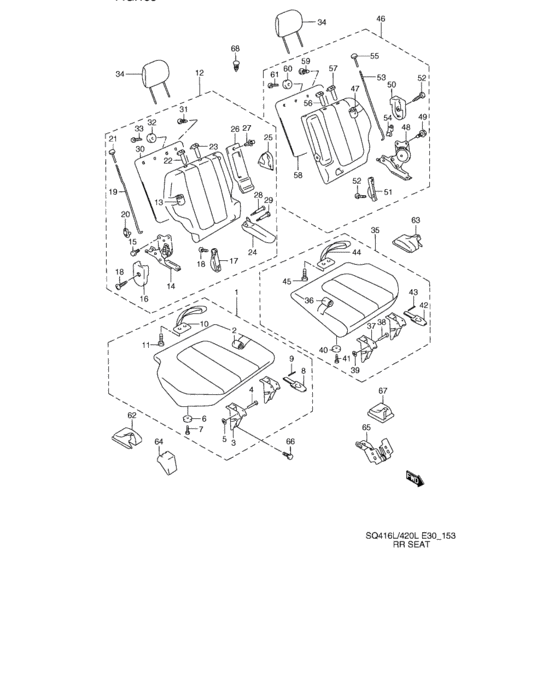

Rear seat (REAR SEAT) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-65DA1-K4P
クッションアッシ,リヤ,ライト
|
87101-65DA1-K4P |
— | ||
| replacement | |||||
|
1
|
1
87101-65DA2-K4P
CUSHION ASSY,RR,R(BEIGE)
|
87101-65DA2-K4P |
— | ||
|
2
|
2
87107-65DA0-K4P
Trim sub assy,rr cush,r
|
87107-65DA0-K4P |
— | ||
|
3
|
3
87151-65DA1-000 LEG,RR CUSH |
87151-65DA1-000 |
US $18.77 |
||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
5
|
5
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
5
|
5
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
6
|
6
87159-65DA0-000 CUSHION,RR CUSH |
87159-65DA0-000 |
US $3.90 |
||
|
7
|
7
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
87420-65DA0-000 BAND,RR STOPPER |
87420-65DA0-000 |
US $18.77 |
||
|
9
|
9
87423-65DA0-000 PIN,REAR STOPPER BAND |
87423-65DA0-000 |
US $1.60 |
||
|
10
|
10
87460-65DA0-000 LOCK,RR CUSH |
87460-65DA0-000 |
US $29.62 |
||
|
11
|
11
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
12
|
12
87301-65DK0-K4P
BACK ASSY,RR,R
|
87301-65DK0-K4P |
— | ||
|
13
|
13
87307-65DD0-K4P
トリムサブアッシ,リヤバック,ライト
|
87307-65DD0-K4P |
— | ||
|
14
|
14
87210-65DC0-000
リクライニングアッシ,リヤ,ライト
|
87210-65DC0-000 |
— | ||
| replacement | |||||
|
14
|
14
87210-65DC1-000 RECLINING ASSY,RR,R |
87210-65DC1-000 |
US $117.39 |
||
|
15
|
15
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
16
|
16
87221-65DA0-T01
COVER,RR RECL,OUTSIDE,R
|
87221-65DA0-T01 |
— | ||
|
17
|
17
87241-65DA0-T01 COVER,RR RECL,INSIDE,R |
87241-65DA0-T01 |
US $8.10 |
||
|
18
|
18
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
19
|
19
87215-65DA0-000 ROD,RR RCLNG |
87215-65DA0-000 |
US $7.07 |
||
|
20
|
20
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
21
|
21
87211-70E00-T01 KNOB,RR RECL |
87211-70E00-T01 |
US $2.56 |
||
|
22
|
22
85341-72C10-T01 GUIDE,HEADRESTRAINT |
85341-72C10-T01 |
US $6.04 |
||
|
23
|
23
85840-72C10-T01 GUIDE,HEADRESTRAINT |
85840-72C10-T01 |
US $15.12 |
||
|
24
|
24
87501-65DC0-K4P
アームレストアッシ,リヤ,ライト
|
87501-65DC0-K4P |
— | ||
|
25
|
25
87552-65DC1-T01
COVER,RR BACK ARMREST
|
87552-65DC1-T01 |
— | ||
|
26
|
26
87554-65DC0-T01
BOARD,ARMREST
|
87554-65DC0-T01 |
— | ||
|
27
|
27
87571-65DC0-000
SHAFT,ARMREST
|
87571-65DC0-000 |
— | ||
|
28
|
28
87572-65DC0-000
SHAFT,ARMREST LOCK
|
87572-65DC0-000 |
— | ||
|
29
|
29
87390-65DA0-T19
カーペット,リヤバック,ライト(グレー)
|
87390-65DA0-T19 |
— | ||
|
30
|
30
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
US $1.22 |
||
|
31
|
31
87429-65DA0-000
ガイド,ストッパバンド
|
87429-65DA0-000 |
— | ||
| replacement | |||||
|
31
|
31
87429-65DA0-T01 GUIDE,STOPPER BAND |
87429-65DA0-T01 |
US $2.13 |
||
|
32
|
32
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
33
|
33
86401-65DA0-V02
ヘッドレストレイントアッシ(ベージュ)
|
86401-65DA0-V02 |
— | ||
| replacement | |||||
|
33
|
33
86401-65DL0-V02
HEADRESTRAINT ASSY
|
86401-65DL0-V02 |
— | ||
|
34
|
34
87102-65DA1-K4P
クッションアッシ,リヤ,レフト
|
87102-65DA1-K4P |
— | ||
| replacement | |||||
|
34
|
34
87102-65DA2-K4P
Cushion assy,rr l(beige)
|
87102-65DA2-K4P |
— | ||
|
35
|
35
87108-65DA0-K4P
Trim sub assy,rr cush,l
|
87108-65DA0-K4P |
— | ||
|
36
|
36
87151-65DA1-000 LEG,RR CUSH |
87151-65DA1-000 |
US $18.77 |
||
|
37
|
37
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
38
|
38
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
38
|
38
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
39
|
39
87159-65DA0-000 CUSHION,RR CUSH |
87159-65DA0-000 |
US $3.90 |
||
|
40
|
40
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
40
|
40
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
41
|
41
87420-65DA0-000 BAND,RR STOPPER |
87420-65DA0-000 |
US $18.77 |
||
|
42
|
42
87423-65DA0-000 PIN,REAR STOPPER BAND |
87423-65DA0-000 |
US $1.60 |
||
|
43
|
43
87460-65DA0-000 LOCK,RR CUSH |
87460-65DA0-000 |
US $29.62 |
||
|
44
|
44
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
44
|
44
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
45
|
45
87302-65DH0-K4P
バックアッシ,リヤ,レフト
|
87302-65DH0-K4P |
— | ||
|
46
|
46
87308-65DB0-K4P
トリムサブアッシ,リヤバック,レフト
|
87308-65DB0-K4P |
— | ||
|
47
|
47
87710-65DC0-000
リクライニングアッシ,リヤ,レフト
|
87710-65DC0-000 |
— | ||
| replacement | |||||
|
47
|
47
87710-65DC1-000 RECLINING ASSY,RR,L |
87710-65DC1-000 |
US $117.39 |
||
|
48
|
48
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
48
|
48
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
49
|
49
87721-65DA0-T01
COVER,RR RECL,OUTSIDE,L
|
87721-65DA0-T01 |
— | ||
|
50
|
50
87741-65DA0-T01 COVER,RR RECL,INSIDE,L |
87741-65DA0-T01 |
US $8.10 |
||
|
51
|
51
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
51
|
51
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
52
|
52
87215-65DA0-000 ROD,RR RCLNG |
87215-65DA0-000 |
US $7.07 |
||
|
53
|
53
09403-04306-000 CLAMPConnector, choke rod |
09403-04306-000 |
US $20.20 |
||
|
54
|
54
87211-70E00-T01 KNOB,RR RECL |
87211-70E00-T01 |
US $2.56 |
||
|
55
|
55
85341-72C10-T01 GUIDE,HEADRESTRAINT |
85341-72C10-T01 |
US $6.04 |
||
|
56
|
56
85840-72C10-T01 GUIDE,HEADRESTRAINT |
85840-72C10-T01 |
US $15.12 |
||
|
57
|
57
87890-65DA0-T19
CARPET,RR BACK,L
|
87890-65DA0-T19 |
— | ||
|
58
|
58
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
US $1.22 |
||
|
59
|
59
87429-65DA0-000
ガイド,ストッパバンド
|
87429-65DA0-000 |
— | ||
| replacement | |||||
|
59
|
59
87429-65DA0-T01 GUIDE,STOPPER BAND |
87429-65DA0-T01 |
US $2.13 |
||
|
60
|
60
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
60
|
60
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
61
|
61
87222-65DA0-T01 COVER,RR RECL BRKT,R |
87222-65DA0-T01 |
US $7.54 |
||
|
62
|
62
87722-65DA0-T01 COVER,RR RECL BRKT,L |
87722-65DA0-T01 |
US $7.54 |
||
|
63
|
63
87285-65D00-T01 COVER,RR CUSHION LEG |
87285-65D00-T01 |
US $7.54 |
||
|
64
|
64
87950-65DA0-000 HINGE,RR SEAT CTR |
87950-65DA0-000 |
US $35.33 |
||
|
65
|
65
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
65
|
65
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
66
|
66
87995-65D00-T01 COVER,RR CENTER HINGE |
87995-65D00-T01 |
US $7.54 |
||
|
67
|
67
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
US $1.22 |
||
