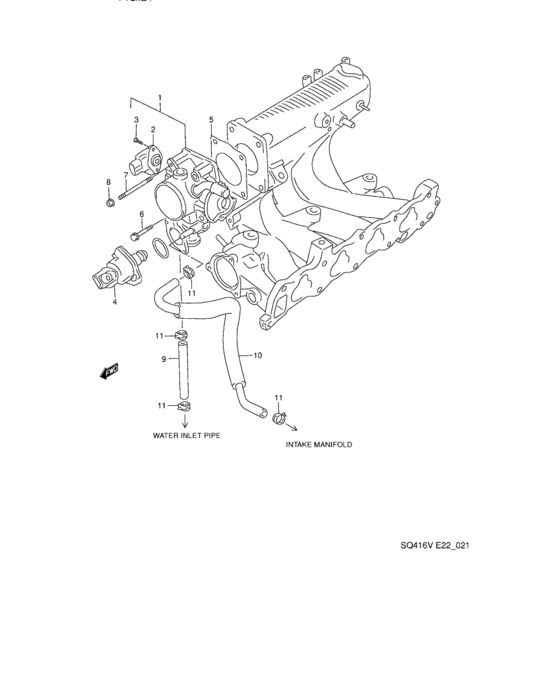

Throttle body (SQ416V) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-66D00-000 BODY ASSY,THROTTLE |
13400-66D00-000 |
US $1,136.96 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
|
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITION |
13420-65D01-000 |
US $192 |
||
|
3
|
3
13428-65D00-000 SCREW,TP-SENSOR |
13428-65D00-000 |
US $2.10 |
||
|
4
|
4
18137-65D00-000 VALVE,IAC |
18137-65D00-000 |
US $349.60 |
||
|
5
|
5
13421-65D00-000 GASKET,THROTTLE BODY |
13421-65D00-000 |
from US $3.56 |
||
|
6
|
6
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.28 |
||
|
7
|
7
01421-08503-000
Bolt, stud
|
01421-08503-000 |
— | ||
| replacement | |||||
|
7
|
7
01421-0850A-000 BOLT,STUD |
01421-0850A-000 |
US $14.40 |
||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
09352-70131-600
HOSE(7X13X600)
L:600->100,->09356-75141-600,USED WITH 09401-12410(2PCS) |
09352-70131-600 |
— | ||
|
9
|
9
09356-75141-600 HOSE(7.5X14.5X600)L:600->100,JSAFTA03V00100237~,JSAFTA03VW4100207~,JSAFTA03VW0100001~,JS3TA03V X4100207~ |
09356-75141-600 |
from US $5.11 |
||
|
10
|
10
13494-66D00-000
ホース,ウォータスロットルボディ,アウトレット
->13494-66D01,USED WITH 09401-12410(2PCS) |
13494-66D00-000 |
— | ||
| replacements | |||||
|
10
|
10
09401-12410-000 CLIPClip, filter outlet ->13494-66D01,USED WITH 09401-12410(2PCS) |
09401-12410-000 |
from US $1.52 |
||
|
10
|
10
13494-66D01-000 HOSE,WTR THROTTLE BODY OUTLET->13494-66D01,USED WITH 09401-12410(2PCS) |
13494-66D01-000 |
US $17.96 |
||
|
10
|
10
13494-66D01-000 HOSE,WTR THROTTLE BODY OUTLETJSAFTA03V00100237~,JSAFTA03VW4100207~,JSAFTA03VW0100001~,JS3TA03V X4100207~ |
13494-66D01-000 |
US $17.96 |
||
|
11
|
11
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
11
|
11
09401-12410-000 CLIPClip, filter outlet JSAFTA03V00100237~,JSAFTA03VW4100207~,JSAFTA03VW0100001~,JS3TA03V X4100207~ |
09401-12410-000 |
from US $1.52 |
||
