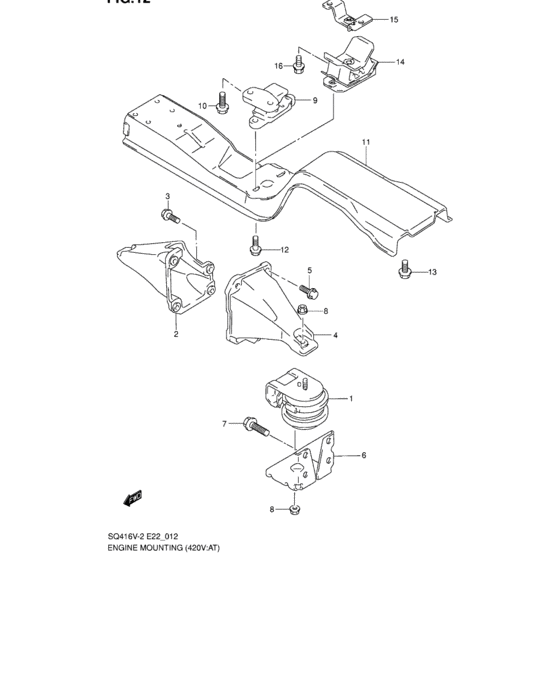

Engine mounting (SQ420:AT) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-65D00-000 MOUNTING,ENG FR |
11610-65D00-000 |
US $243.20 |
||
|
2
|
2
11641-65D00-000 BRACKET,ENG FR MTG,R |
11641-65D00-000 |
US $116.29 |
||
|
3
|
3
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 Bolt |
01560-1030A-000 |
US $1.12 |
||
|
4
|
4
11651-65D00-000 BRACKET,ENG FR MTG,L |
11651-65D00-000 |
US $104.88 |
||
|
5
|
5
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01560-1030A-000 Bolt |
01560-1030A-000 |
US $1.12 |
||
|
6
|
6
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-65D00-000 |
US $67.20 |
||
|
7
|
7
09112-12001-000 BOLT(12X35) |
09112-12001-000 |
US $22.40 |
||
|
8
|
8
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-77E11-000 MOUNTING,ENG RR~JSAFTA52V00151030,~JSAFTA52V24150009,~JS3TA52V 14150146,~JSAFTB52V00150685,Australia:~JSAFTB52V00170003,~JSAFTB52V24150002,~JS3TB52V 24150026 |
11710-77E11-000 |
US $180.80 |
||
|
10
|
10
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1030A-000 Bolt |
01560-1030A-000 |
US $1.12 |
||
|
11
|
11
11730-65D02-000
メンバ,エンジンリヤマウンチング
|
11730-65D02-000 |
— | ||
| replacement | |||||
|
11
|
11
11730-68D02-000 MEMBER,ENG RR |
11730-68D02-000 |
US $215.28 |
||
|
12
|
12
01560-10163-000
ボルト
|
01560-10163-000 |
— | ||
| replacement | |||||
|
12
|
12
01560-1016A-000 Bolt |
01560-1016A-000 |
US $0.96 |
||
|
13
|
13
09112-10006-000 BOLT(10X25) |
09112-10006-000 |
US $1.38 |
||
|
14
|
14
11710-65D01-000
マウンチング,エンジン,リヤ
|
11710-65D01-000 |
— | ||
| replacement | |||||
|
14
|
14
11710-65D03-000 MOUNTING,ENG RR |
11710-65D03-000 |
US $122.40 |
||
|
15
|
15
11741-65D00-000 BRACKET,ENG RR MTGJSAFTA52V00151031~,JSAFTA52V24150010~,JS3TA52V 14150147~,JSAFTB52V00150686~,Australia:JSAFTB52V00170004~,JSAFTB52V24150003~,JS3TB52V 24150027~ |
11741-65D00-000 |
US $10.56 |
||
|
16
|
16
01560-10253-000
ボルト
JSAFTA52V00151031~,JSAFTA52V24150010~,JS3TA52V 14150147~,JSAFTB52V00150686~,Australia:JSAFTB52V00170004~,JSAFTB52V24150003~,JS3TB52V 24150027~ |
01560-10253-000 |
— | ||
| replacement | |||||
|
16
|
16
01560-1025A-000 BoltJSAFTA52V00151031~,JSAFTA52V24150010~,JS3TA52V 14150147~,JSAFTB52V00150686~,Australia:JSAFTB52V00170004~,JSAFTB52V24150003~,JS3TB52V 24150027~ |
01560-1025A-000 |
US $1.07 |
||
