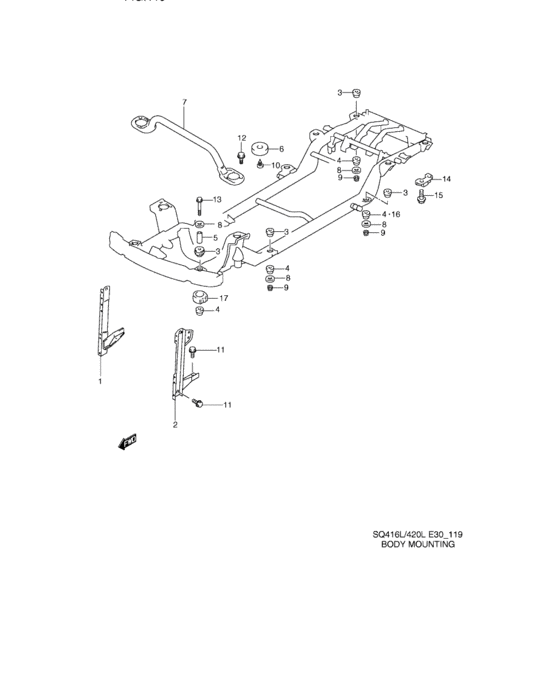

Body mounting (BODY MOUNTING) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71410-65D00-000 STAY,RADIATOR,R |
71410-65D00-000 |
US $46 |
||
|
2
|
2
71420-65D10-000 STAY,RADIATOR,L |
71420-65D10-000 |
US $50.42 |
||
|
3
|
3
71511-65D00-000 CUSHION,BODY MTG NO.1 |
71511-65D00-000 |
from US $13.86 |
||
|
4
|
4
71512-65D00-000 CUSHION,BODY MTG NO.2 |
71512-65D00-000 |
from US $8.64 |
||
|
5
|
5
71515-65D00-000
COLLAR BODY 1ST MOUNTING
|
71515-65D00-000 |
— | ||
| replacement | |||||
|
5
|
5
71515-65D01-000 COLLAR,BODY 1ST MOUNTING |
71515-65D01-000 |
from US $2.72 |
||
|
6
|
6
71521-56B00-000 PAD,BODY MOUNTING |
71521-56B00-000 |
US $11.52 |
||
|
7
|
7
71530-65D00-000 BAR,STRUTSQ420L |
71530-65D00-000 |
US $150.14 |
||
|
8
|
8
71632-83010-000
ボトム,ボディマウンチング
|
71632-83010-000 |
— | ||
| replacement | |||||
|
8
|
8
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
9
|
9
09159-10060-000 NUT |
09159-10060-000 |
from US $1.28 |
||
|
10
|
10
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
11
|
11
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
12
|
12
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
13
|
13
09103-10299-000 BOLT(10X95) |
09103-10299-000 |
from US $3.83 |
||
|
14
|
14
71451-77E00-000
フック,シッピング,リヤ
|
71451-77E00-000 |
— | ||
| replacement | |||||
|
14
|
14
71450-52D00-000 HOOK,SHIPPING RR |
71450-52D00-000 |
US $28.15 |
||
|
15
|
15
09103-12043-000 BOLT(12X20) |
09103-12043-000 |
US $1.92 |
||
|
16
|
16
71512-65D10-000 CUSHION,BODY 3RD MTG NO.2 |
71512-65D10-000 |
US $11 |
||
|
17
|
17
71516-65D00-000 CUSHION,BODY MTG NO.3 |
71516-65D00-000 |
from US $21.58 |
||
