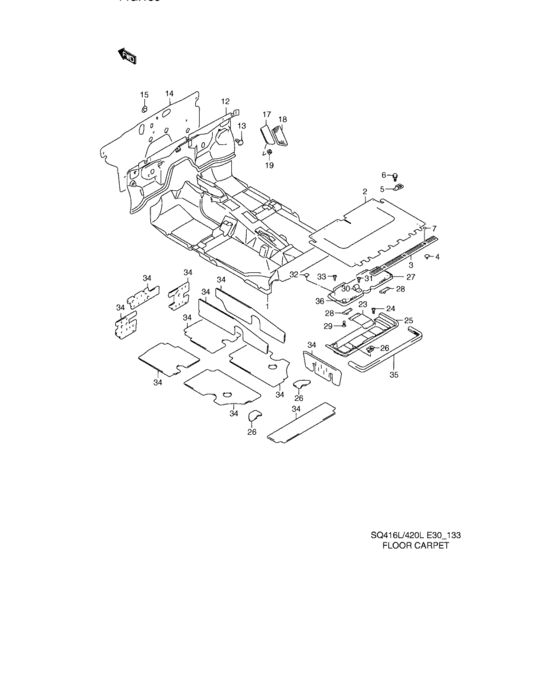

Floor carpet (FLOOR CARPET) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-65D10-T19
カーペット,フロントフロア(グレー)
|
75160-65D10-T19 |
— | ||
| replacement | |||||
|
1
|
1
75160-65D30-T19
CARPET,FR FL
|
75160-65D30-T19 |
— | ||
|
2
|
2
75180-65D10-T19
CARPET,RR FL
|
75180-65D10-T19 |
— | ||
|
3
|
3
75191-65D00-T01 GARNISH,LUGGAGE MAT END |
75191-65D00-T01 |
US $60.80 |
||
|
4
|
4
77259-71B00-000 CLIP |
77259-71B00-000 |
US $2.08 |
||
|
5
|
5
75510-54F00-000
フック,ラゲッジフロア
|
75510-54F00-000 |
— | ||
| replacement | |||||
|
5
|
5
75510-54F01-000 HOOK,LUGGAGE FLOOR |
75510-54F01-000 |
US $10.52 |
||
|
6
|
6
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
75192-65D00-T01 CAP,MAT END GARNISH |
75192-65D00-T01 |
US $3.42 |
||
|
8
|
8
75210-65D11-000
サイレンサ,ダッシュパネル
|
75210-65D11-000 |
— | ||
| replacement | |||||
|
8
|
8
75210-65D12-000
SILENCER,DASH PANEL
|
75210-65D12-000 |
— | ||
|
9
|
9
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
10
|
10
75280-65D10-000
Silencer, dash outer
SQ420L |
75280-65D10-000 |
— | ||
| replacement | |||||
|
10
|
10
75280-65D11-000
SILENCER,DASH OUTER
SQ420L |
75280-65D11-000 |
— | ||
|
11
|
11
09148-05037-000 CLIPSQ420L |
09148-05037-000 |
US $1.28 |
||
|
12
|
12
75810-56B00-000
PEDAL,FOOTREST
|
75810-56B00-000 |
— | ||
|
13
|
13
75821-56B00-000 PAD,FOOTREST PEDAL |
75821-56B00-000 |
US $11 |
||
|
14
|
14
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
15
|
15
75561-65D10-000 MEMBER,RR UNDER BOX |
75561-65D10-000 |
US $26.50 |
||
|
16
|
16
09119-10071-000 BOLT |
09119-10071-000 |
US $21 |
||
|
17
|
17
75571-65D10-T01
GARNISH,RR UNDER BOX
|
75571-65D10-T01 |
— | ||
|
18
|
18
75572-65D10-000 LATCH,RR UNDER BOX,LWR |
75572-65D10-000 |
US $2.83 |
||
|
19
|
19
75541-65D10-5PK
リッド,リヤアンダボックス(ブラック)
|
75541-65D10-5PK |
— | ||
| replacement | |||||
|
19
|
19
75540-65D10-5PK LID,RR UNDER BOX |
75540-65D10-5PK |
US $98.26 |
||
|
20
|
20
75542-65D10-000 STRIKER,RR UNDER BOX |
75542-65D10-000 |
US $3.09 |
||
|
21
|
21
03541-04103-000
Screw
|
03541-04103-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
22
|
22
75481-85520-000 BAND,SEAT UNDER BOX LID |
75481-85520-000 |
US $3.83 |
||
|
23
|
23
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
23
|
23
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
23
|
23
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
24
|
24
75171-65D00-000 CLIP,FL CARPET |
75171-65D00-000 |
US $3.42 |
||
|
25
|
25
03141-06303-000
Screw
|
03141-06303-000 |
— | ||
| replacement | |||||
|
25
|
25
03141-0630B-000 SCREW |
03141-0630B-000 |
US $12.90 |
||
|
26
|
26
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED |
99611-60A01-000 |
US $62.40 |
||
|
27
|
27
94631-49300-000 MOLD,COWLINGMcul L:1000->630 |
94631-49300-000 |
from US $14.57 |
||
|
28
|
28
75543-65D00-000
FASTENER,MALE
|
75543-65D00-000 |
— | ||
