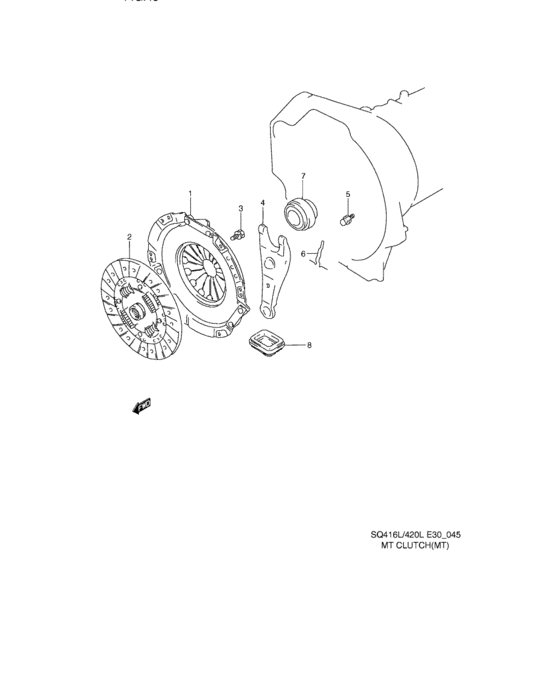

Mt clutch (MT) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-57B10-000
Clutch cover assy
|
22100-57B10-000 |
— | ||
|
2
|
2
22400-57B10-000
ディスク,クラッチ
|
22400-57B10-000 |
— | ||
| replacement | |||||
|
2
|
2
22400-57810-000 CLUTCH DISC and COVER SET |
22400-57810-000 |
from US $196.49 |
||
|
3
|
3
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
from US $1.28 |
||
|
4
|
4
23211-66D00-000
フォーク,クラッチレリーズ
|
23211-66D00-000 |
— | ||
| replacement | |||||
|
4
|
4
23211-66D01-000 FORK,CLUTCH RELEASE |
23211-66D01-000 |
from US $36.29 |
||
|
5
|
5
23221-78A00-000 SUPPORT,CLUTCH RELEASE FORK |
23221-78A00-000 |
from US $6.98 |
||
|
6
|
6
23241-50F00-000 CLIP,CLUTCH RELEASE FORK |
23241-50F00-000 |
from US $3.92 |
||
|
7
|
7
23265-65D00-000 BEARING,CLUTCH RELEASE |
23265-65D00-000 |
US $130.40 |
||
|
8
|
8
23268-50F00-000
ブーツ,クラッチレリーズフォーク
|
23268-50F00-000 |
— | ||
| replacement | |||||
|
8
|
8
23268-50F01-000 BOOT,CLUTCH RELEASE FORK |
23268-50F01-000 |
from US $6.50 |
||
