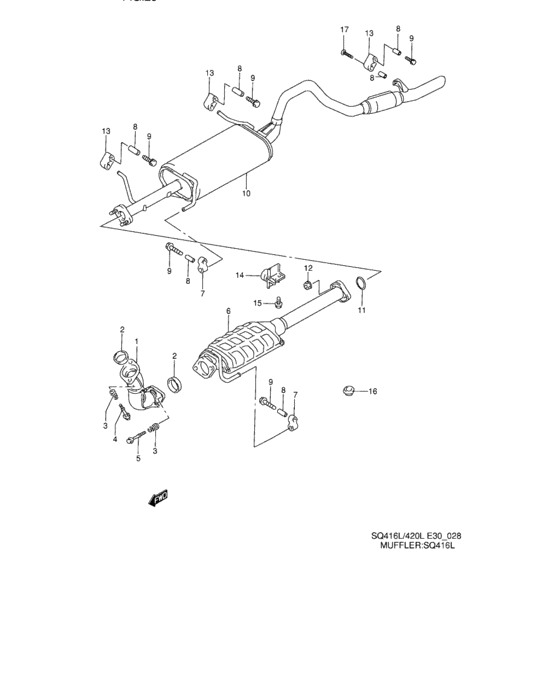

Muffler (SQ416L) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-66D00-000 PIPE,EXH NO.1 |
14190-66D00-000 |
US $358.80 |
||
|
2
|
2
14183-58B02-000
Ring,seal exh pipe
|
14183-58B02-000 |
— | ||
| replacements | |||||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14183-58B10-000 RING,SEAL EXH PIPE |
14183-58B10-000 |
from US $18.27 |
||
|
3
|
3
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
3
|
3
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
4
|
4
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
5
|
5
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
5
|
5
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
6
|
6
14250-65D00-000 PIPE,EXH NO.2 |
14250-65D00-000 |
US $665.28 |
||
|
7
|
7
14281-71C00-000
マウンチング,マフラ
|
14281-71C00-000 |
— | ||
| replacement | |||||
|
7
|
7
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
8
|
8
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
8
|
8
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
9
|
9
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
9
|
9
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
14300-65D01-000 MUFFLER,EXH |
14300-65D01-000 |
US $549.12 |
||
|
11
|
11
14182-58B10-000 GASKET,MUFFLER |
14182-58B10-000 |
from US $4.79 |
||
|
12
|
12
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
13
|
13
14281-58B00-000
マウンチング,マフラ
|
14281-58B00-000 |
— | ||
| replacement | |||||
|
13
|
13
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
14
|
14
14260-65D01-000 DAMPER,EXH PIPE |
14260-65D01-000 |
US $48.58 |
||
|
15
|
15
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
|
17
|
17
09139-08019-000 SCREW(8X35) |
09139-08019-000 |
US $23.60 |
||
