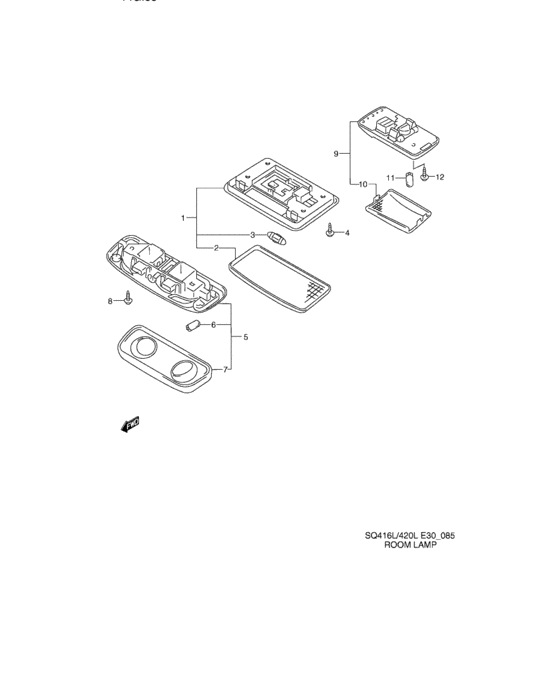

Room lamp (ROOM LAMP) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-60G00-6GS
ランプアッシ,ルーム(グレー)
|
36210-60G00-6GS |
— | ||
| replacement | |||||
|
1
|
1
36210-60G01-6GS LAMP ASSY,ROOM |
36210-60G01-6GS |
US $53.97 |
||
|
2
|
2
36212-60G00-000 LENS,ROOM LAMP |
36212-60G00-000 |
US $11.20 |
||
|
3
|
3
09471-12187-000 BULB(12V8W,TOKAI DENSO) |
09471-12187-000 |
from US $2.50 |
||
|
4
|
4
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
5
|
5
36230-65D00-6GS
ランプアッシ,スポット(グレー)
|
36230-65D00-6GS |
— | ||
| replacement | |||||
|
5
|
5
36230-65D01-6GS LAMP ASSY,SPOT |
36230-65D01-6GS |
US $194.56 |
||
|
6
|
6
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
7
|
7
36232-65D00-000 LENS,SPOT LAMP |
36232-65D00-000 |
US $8.98 |
||
|
8
|
8
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
36210-74F02-6GS LAMP ASSY,RR ROOM |
36210-74F02-6GS |
from US $20.97 |
||
|
10
|
10
36212-74F00-000 LENS,ROOM LAMP |
36212-74F00-000 |
US $4.05 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
