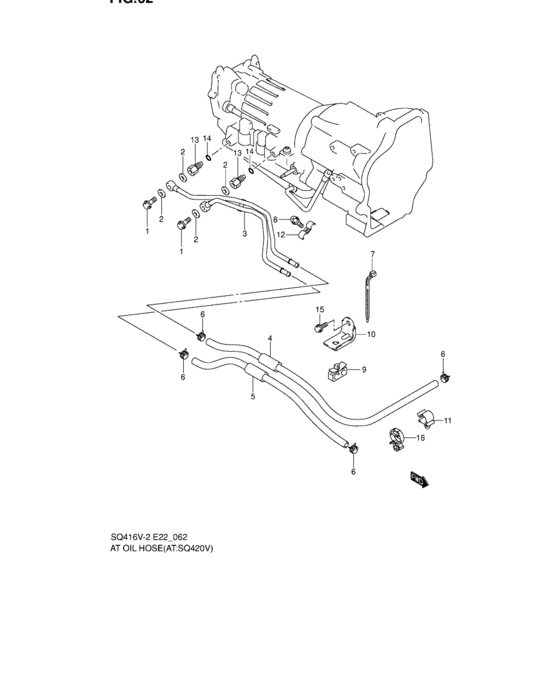

At oil hose (AT:SQ420) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-14012-000 BOLT,14X27Bolt, union (14x27) |
09360-14012-000 |
from US $6.88 |
||
|
2
|
2
22913-65D30-000
Gasket
|
22913-65D30-000 |
— | ||
| replacements | |||||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.9 |
22913-59J10-000 |
from US $1.51 |
||
|
2
|
2
22910-65810-000 BOLT&GASKET SET |
22910-65810-000 |
from US $9.38 |
||
|
3
|
3
22910-77EA0-000
パイプ,オイル
|
22910-77EA0-000 |
— | ||
| replacement | |||||
|
3
|
3
22910-77EA1-000 PIPE,OIL |
22910-77EA1-000 |
US $116 |
||
|
4
|
4
22931-56X51-000 HOSE,OILL:1000->900 |
22931-56X51-000 |
from US $32.92 |
||
|
5
|
5
22931-56X51-000 HOSE,OILL:1000->720 |
22931-56X51-000 |
from US $32.92 |
||
|
6
|
6
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
7
|
7
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
09403-14313-000 CLAMP |
09403-14313-000 |
US $2.40 |
||
|
10
|
10
22935-65D10-000
BRACKET,OIL HOSE CLAMP N0.2
|
22935-65D10-000 |
— | ||
|
11
|
11
09403-14315-000 CLAMPClamp, harness ~JSAFTA52V00151026,~JS3TA52V 14150146,~JSAFTA52V14150189,~JSAFTB52V00150089,~JS3TB52V 14150046 |
09403-14315-000 |
US $17.70 |
||
|
12
|
12
24899-85500-000
PLATE,OIL PIPE
|
24899-85500-000 |
— | ||
|
13
|
13
24743-57B10-000 UNION,OIL |
24743-57B10-000 |
US $46.36 |
||
|
14
|
14
29737-57B00-000 O-RING,OIL PIPE |
29737-57B00-000 |
from US $2.28 |
||
|
15
|
15
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
15
|
15
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
16
|
16
09403-14315-000 CLAMPClamp, harness JSAFTA52V00151027~,JS3TA52V 14150147~,JSAFTA52V14150190~,JSAFTB52V00150090~,JS3TB52V 14150047~ |
09403-14315-000 |
US $17.70 |
||
