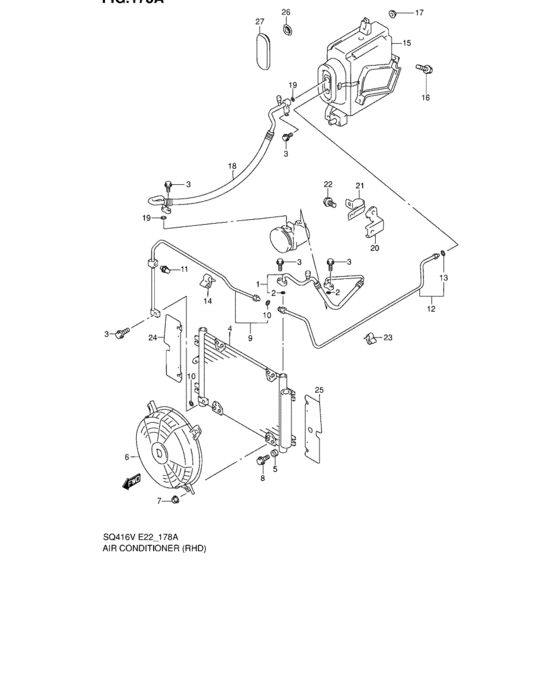

Air con piping (RHD) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95720-65D20-000 HOSE,DISCHARGESQ416V |
95720-65D20-000 |
from US $125.12 |
||
|
1
|
1
95720-65D00-000
HOSE,DISCHARGE
SQ420V |
95720-65D00-000 |
— | ||
|
2
|
2
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
3
|
3
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
4
|
4
95310-65D10-000
コンデンサ
|
95310-65D10-000 |
— | ||
| replacement | |||||
|
4
|
4
95310-65D30-000 CONDENSER |
95310-65D30-000 |
from US $434.14 |
||
|
5
|
5
95851-60B00-000
BUSH,COND
|
95851-60B00-000 |
— | ||
|
6
|
6
95560-65D00-000
Fan assy, condenser
|
95560-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
95560-65D03-000 CONDENSER FAN ASSY |
95560-65D03-000 |
from US $266.09 |
||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
9
|
9
95732-65D20-000
PIPE,CONDENSER OUTLET
|
95732-65D20-000 |
— | ||
|
10
|
10
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
11
|
11
95526-50G10-000
Switch, dual pressure
|
95526-50G10-000 |
— | ||
| replacement | |||||
|
11
|
11
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
US $44.84 |
||
|
12
|
12
95731-65D01-000 PIPE,LIQUID |
95731-65D01-000 |
US $129.17 |
||
|
13
|
13
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
14
|
14
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
15
|
15
95400-65D22-000
クーリングユニット
|
95400-65D22-000 |
— | ||
| replacement | |||||
|
15
|
15
95400-65D23-000 COOLING UNIT |
95400-65D23-000 |
US $693.44 |
||
|
16
|
16
09136-06140-000 SCREW(6X25) |
09136-06140-000 |
US $18.80 |
||
|
17
|
17
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
17
|
17
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
18
|
18
95710-65D21-000 HOSE,SUCTIONSQ416V |
95710-65D21-000 |
US $57.60 |
||
|
18
|
18
95710-65D01-000 HOSE,SUCTIONSQ420V |
95710-65D01-000 |
US $122.91 |
||
|
19
|
19
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
20
|
20
95781-65D00-000
STAY,SUCT HOSE CLAMP
|
95781-65D00-000 |
— | ||
|
21
|
21
95772-70C51-000 CLAMP,SUCT HOSE |
95772-70C51-000 |
US $9.83 |
||
|
22
|
22
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
23
|
23
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
24
|
24
95821-65D00-000 INSULATOR,RDTR SIDE,R |
95821-65D00-000 |
US $24.84 |
||
|
25
|
25
95822-65D00-000 INSULATOR,RDTR SIDE,L |
95822-65D00-000 |
US $24.84 |
||
|
26
|
26
09250-25007-000 CAP(OD:25.0)N/AIR CON |
09250-25007-000 |
from US $0.97 |
||
|
27
|
27
95762-65D00-000 GROMMET,EVAPO HOLEN/AIR CON |
95762-65D00-000 |
US $6.81 |
||
