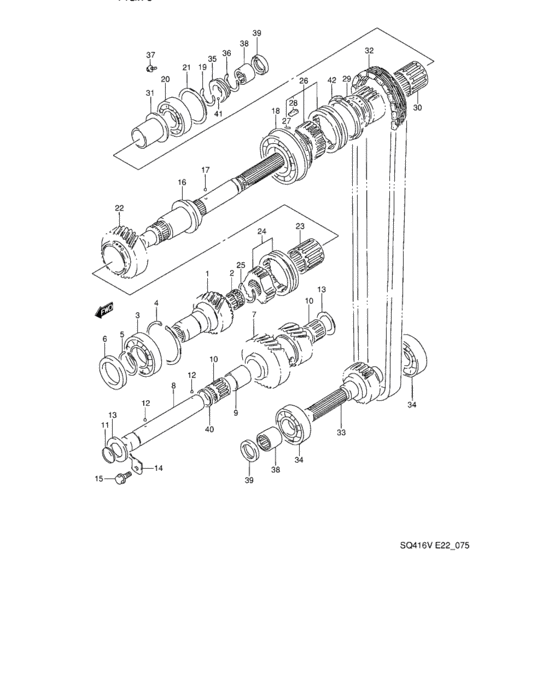

Transfer gear (TRANSFER GEAR) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-60A03-000 GEAR,T/F INPUT |
29110-60A03-000 |
US $198.72 |
||
|
2
|
2
09263-24022-000 BEARING(24X30X17) |
09263-24022-000 |
US $19.01 |
||
|
3
|
3
09262-35051-000 BEARING(35X72X17) |
09262-35051-000 |
US $48.21 |
||
|
4
|
4
09381-72001-000 RING,SNAP |
09381-72001-000 |
from US $13.77 |
||
|
5
|
5
08331-31356-000
Circlip 35mm
|
08331-31356-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31359-000 CIRCLIP |
08331-31359-000 |
from US $4.45 |
||
|
6
|
6
09282-35002-000 SEAL,OIL(35X55X9) |
09282-35002-000 |
from US $10.08 |
||
|
7
|
7
29121-78E00-000 GEAR,T/F COUNTER |
29121-78E00-000 |
US $235.52 |
||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER |
29131-60A02-000 |
US $44.16 |
||
|
9
|
9
09180-26004-000 SPACER(26X31X33.7) |
09180-26004-000 |
from US $3.74 |
||
|
10
|
10
09263-25051-000 BEARING(25.4X33.3X31.7) |
09263-25051-000 |
US $25.60 |
||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) |
09280-21008-000 |
from US $0.95 |
||
|
12
|
12
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25012-000 WASHER |
09166-25012-000 |
from US $9.77 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT |
29136-60A01-000 |
US $2.08 |
||
|
15
|
15
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
16
|
16
29141-60A20-000
シャフト,トランスファアウトプツト,リヤ
|
29141-60A20-000 |
— | ||
| replacement | |||||
|
16
|
16
29141-60A22-000 SHAFT,T/F OUTPUT RR |
29141-60A22-000 |
US $195.04 |
||
|
17
|
17
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
18
|
18
08173-62100-000 BEARING |
08173-62100-000 |
US $64.40 |
||
|
19
|
19
09380-30007-000 RING,SNAP |
09380-30007-000 |
US $21.70 |
||
|
20
|
20
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
21
|
21
09181-62003-000 SHIM(62X71X0.1) |
09181-62003-000 |
from US $0.97 |
||
|
21
|
21
09181-62008-000 SHIM(62X71X0.2) |
09181-62008-000 |
from US $1.69 |
||
|
21
|
21
09181-62004-000 SHIM(62X71X0.3) |
09181-62004-000 |
from US $1.04 |
||
|
22
|
22
29211-78E00-000 GEAR,T/F OUTPUT LOW |
29211-78E00-000 |
US $173.70 |
||
|
23
|
23
09263-38006-000 BEARING(38.1X47.6X44.4) |
09263-38006-000 |
US $74.40 |
||
|
24
|
24
29230-60A01-000 HUB ASSY,REDUCTION |
29230-60A01-000 |
US $127.70 |
||
|
25
|
25
09380-34003-000 CIRCLIP |
09380-34003-000 |
US $27.20 |
||
|
26
|
26
29230-85F42-000
HUB ASSY,REDUCTION
|
29230-85F42-000 |
— | ||
|
27
|
27
24441-85F41-000
スプリング
|
24441-85F41-000 |
— | ||
| replacement | |||||
|
27
|
27
09388-00017-000 SPRING |
09388-00017-000 |
from US $2.05 |
||
|
28
|
28
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync |
24472-60B00-000 |
from US $1.92 |
||
|
29
|
29
29221-85F50-000
スプロケット,トランスファドライブ
->29221-85F52,USED WITH 24430-65D40 |
29221-85F50-000 |
— | ||
| replacements | |||||
|
29
|
29
29221-85F52-000 SPROCKET,T/F DRIVE->29221-85F52,USED WITH 24430-65D40 |
29221-85F52-000 |
US $321.60 |
||
|
29
|
29
24430-65D40-000
RING ASSY,T/F DRIVE
->29221-85F52,USED WITH 24430-65D40 |
24430-65D40-000 |
— | ||
|
29
|
29
29221-85F52-000 SPROCKET,T/F DRIVEJSAFTA03V00101205~,JS3TA03V X4101780~,JSAFTA03VX4100021~,JSAFTA52V00100504~,JS3TA52V X4100746~,JSAFTA52VX4100105~ |
29221-85F52-000 |
US $321.60 |
||
|
30
|
30
09263-38007-000 BEARING(38.1X47.43X51.1) |
09263-38007-000 |
US $28.88 |
||
|
31
|
31
29222-60A10-000 BUSH,T/F SPROCKET |
29222-60A10-000 |
US $144 |
||
|
32
|
32
29225-78E00-000 CHAIN,T/F DRIVE |
29225-78E00-000 |
from US $368.42 |
||
|
33
|
33
29151-78E10-000 SHAFT,T/F OUTPUT FR |
29151-78E10-000 |
US $154.19 |
||
|
34
|
34
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
35
|
35
29411-85F10-000 GEAR,SPDOM DRIVESQ420V:MT |
29411-85F10-000 |
US $56.80 |
||
|
36
|
36
09380-27002-000 CIRCLIP |
09380-27002-000 |
from US $1.98 |
||
|
37
|
37
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
37
|
37
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
38
|
38
09263-40006-000 BEARING(40X47X30) |
09263-40006-000 |
from US $33.93 |
||
|
39
|
39
09283-40021-000 SEAL,OIL(40X54X10)Oil seal, final drive,fr |
09283-40021-000 |
from US $12.83 |
||
|
40
|
40
29133-60A00-000 RING,T/F COUNTER GEAR FRICTION |
29133-60A00-000 |
US $29.60 |
||
|
41
|
41
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
42
|
42
24430-85F40-000
RING ASSY,T/F SYNC
|
24430-85F40-000 |
— | ||
| replacement | |||||
|
42
|
42
24430-65D40-000
RING ASSY,T/F DRIVE
|
24430-65D40-000 |
— | ||
|
42
|
42
24430-65D40-000
RING ASSY,T/F DRIVE
JSAFTA03V00101205~,JS3TA03V X4101780~,JSAFTA03VX4100021~,JSAFTA52V00100504~,JS3TA52V X4100746~,JSAFTA52VX4100105~ |
24430-65D40-000 |
— | ||
