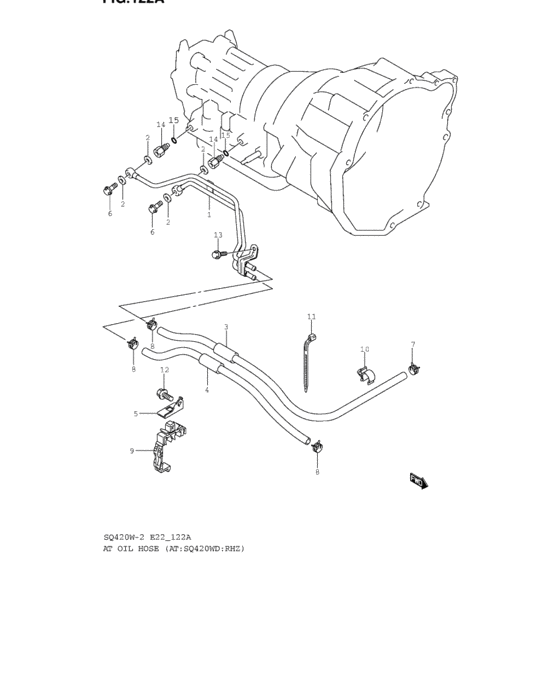

At oil hose (AT:SQ420WD:RHZ) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-52D10-000 PIPE,OIL |
22910-52D10-000 |
from US $73.71 |
||
|
2
|
2
22913-65D30-000
Gasket
|
22913-65D30-000 |
— | ||
| replacements | |||||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.9 |
22913-59J10-000 |
from US $1.51 |
||
|
2
|
2
22910-65810-000 BOLT&GASKET SET |
22910-65810-000 |
from US $9.38 |
||
|
3
|
3
22931-68D70-000
Hose,oil inlet
,2,Israel |
22931-68D70-000 |
— | ||
|
3
|
3
22931-68D90-000
HOSE,OIL INLET
,JSAFTD82V00103602~ |
22931-68D90-000 |
— | ||
|
4
|
4
22932-68D70-000
Hose,oil outlet
|
22932-68D70-000 |
— | ||
|
5
|
5
22935-68D71-000
BRACKET,OIL HOSE CLAMP
|
22935-68D71-000 |
— | ||
|
6
|
6
09360-14012-000 BOLT,14X27Bolt, union (14x27) |
09360-14012-000 |
from US $6.88 |
||
|
7
|
7
09401-15408-000 CLIPClip, 2nd air cleaner hose no.2 |
09401-15408-000 |
from US $3.26 |
||
|
8
|
8
09401-15410-000 CLIP |
09401-15410-000 |
from US $2.24 |
||
|
9
|
9
09403-14313-000 CLAMP |
09403-14313-000 |
US $2.40 |
||
|
10
|
10
09403-14315-000 CLAMPClamp, harness |
09403-14315-000 |
US $17.70 |
||
|
11
|
11
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
12
|
12
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
14
|
14
24743-57B10-000 UNION,OIL |
24743-57B10-000 |
US $46.36 |
||
|
15
|
15
29737-57B00-000 O-RING,OIL PIPE |
29737-57B00-000 |
from US $2.28 |
||
