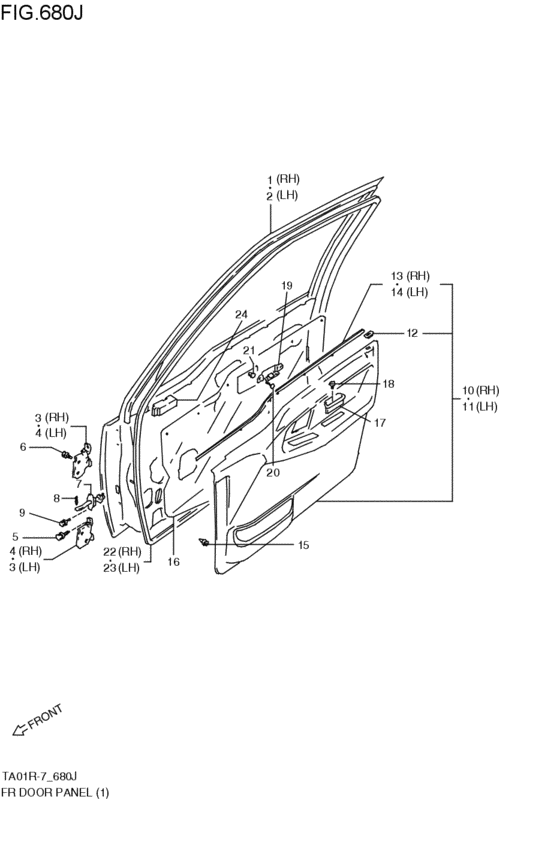

front door panel (3DR; 1996-10-01~1997-10-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- G
- body
- R
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-78E11-000
パネルアッシ,フロントドア,ライト
3DR:G; 1996-10-01~1997-08-01 |
68001-78E11-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-78811-000 PANEL ASSY,FRONT DOOR,R3DR:G; 1996-10-01~1997-08-01 |
68001-78811-000 |
US $647.68 |
||
|
2
|
2
68002-78E11-000
パネルアッシ,フロントドア,レフト
3DR:G; 1996-10-01~1997-08-01 |
68002-78E11-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-78811-000 PANEL ASSY,FRONT DOOR,L3DR:G; 1996-10-01~1997-08-01 |
68002-78811-000 |
US $777.92 |
||
|
3
|
3
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH アッパ ライト; 3DR; 1996-10-01~1997-10-01 |
69310-60A10-000 |
from US $36.32 |
||
|
4
|
4
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH アッパ レフト; 3DR; 1996-10-01~1997-10-01 |
69340-60A11-000 |
from US $43.56 |
||
|
5
|
5
01570-08203-000
Bolt
3DR; 1996-10-01~1997-10-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0820B-000 Bolt3DR; 1996-10-01~1997-10-01 |
01570-0820B-000 |
US $17.30 |
||
|
5
|
5
01570-0820A-000 BOLT3DR; 1996-10-01~1997-10-01 |
01570-0820A-000 |
from US $0.96 |
||
|
6
|
6
09118-08156-000 BOLT(8X25)3DR; 1996-10-01~1997-10-01 |
09118-08156-000 |
US $19.50 |
||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN3DR; 1996-10-01~1997-10-01 |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY3DR; 1996-10-01~1997-10-01 |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06163-000
Bolt
3DR; 1996-10-01~1997-10-01 |
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT3DR; 1996-10-01~1997-10-01 |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
83701-68A10-T02
TRIM ASSY,FR DOOR,R
グレ-; 3DR; 1996-10-01~1997-10-01 |
83701-68A10-T02 |
— | ||
|
11
|
11
83702-68A10-T02
トリムアッシ,フロントドア,レフト(グレー)
グレ-; 3DR; 1996-10-01~1997-10-01 |
83702-68A10-T02 |
— | ||
|
12
|
12
83723-61A00-T01 CAP,DR INSIDE LOCK KNOBグレ-; 3DR; 1996-10-01~1997-10-01 |
83723-61A00-T01 |
US $3.90 |
||
|
13
|
13
83721-61A00-000 WEATHERSTRIP,FR DR INR,R3DR; 1996-10-01~1997-10-01 |
83721-61A00-000 |
US $70.40 |
||
|
14
|
14
83741-61A00-000 WEATHERSTRIP,FR DR INR,L3DR; 1996-10-01~1997-10-01 |
83741-61A00-000 |
US $70.40 |
||
|
15
|
15
09409-08320-000 CLIP3DR; 1996-10-01~1997-10-01 |
09409-08320-000 |
from US $1.15 |
||
|
16
|
16
83911-60X50-000
カバー,ドアシーリング,600X1200
3DR; 1996-10-01~1997-10-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING3DR; 1996-10-01~1997-10-01 |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
84481-68A00-T01 CASE,DR INS PULL HANDLEグレ-; 3DR; 1996-10-01~1997-10-01 |
84481-68A00-T01 |
US $10.12 |
||
|
18
|
18
03142-04123-000
スクリュ
3DR; 1996-10-01~1997-10-01 |
03142-04123-000 |
— | ||
| replacement | |||||
|
18
|
18
03142-0412B-000 SCREW3DR; 1996-10-01~1997-10-01 |
03142-0412B-000 |
from US $0.80 |
||
|
19
|
19
84482-68A00-000 BRACKET,DR INSIDE PULL HANDLE3DR; 1996-10-01~1997-10-01 |
84482-68A00-000 |
US $7.65 |
||
|
20
|
20
03241-06163-000
スクリュ
3DR; 1996-10-01~1997-10-01 |
03241-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0616C-000 SCREW3DR; 1996-10-01~1997-10-01 |
03241-0616C-000 |
from US $0.76 |
||
|
21
|
21
09148-06007-000 NUT3DR; 1996-10-01~1997-10-01 |
09148-06007-000 |
from US $0.86 |
||
|
22
|
22
84641-65A02-000 WEATHERSTRIP,FR DR OPNG,R3DR; 1996-10-01~1997-10-01 |
84641-65A02-000 |
US $152 |
||
|
23
|
23
84651-65A02-000 WEATHERSTRIP,FR DR OPNG,L3DR; 1996-10-01~1997-10-01 |
84651-65A02-000 |
US $152 |
||
|
24
|
24
84755-77E00-000
PAD,FR DOOR SASH BRKT
3DR; 1996-10-01~1997-10-01 |
84755-77E00-000 |
— | ||
