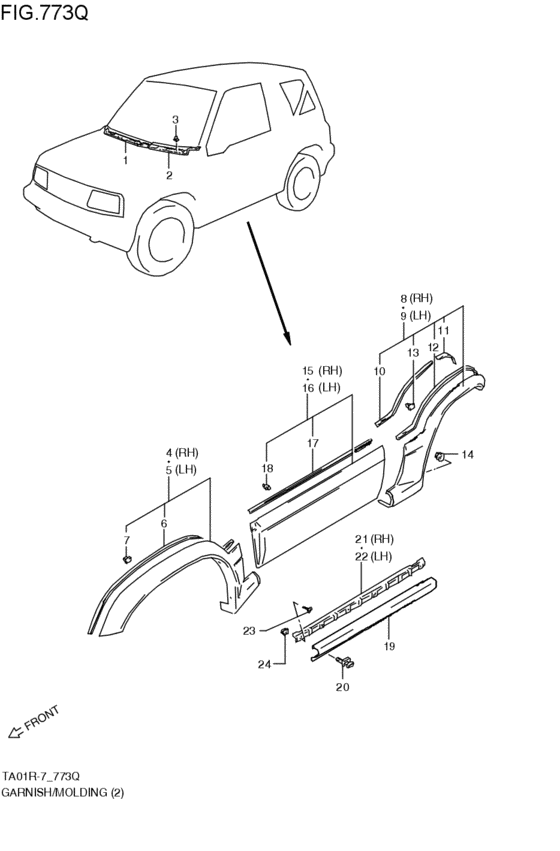

ガ - ニッシュ / モ - ル (3DR:R; 1996-10-01~1997-10-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- G
- body
- R
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77311-60A20-5PK GARNISH,COWL CTR,Rブラック; 3DR:R; 1996-10-01~1997-10-01 |
77311-60A20-5PK |
US $152 |
||
|
2
|
2
77312-60A20-5PK GARNISH,COWL CTR,Lブラック; 3DR:R; 1996-10-01~1997-10-01 |
77312-60A20-5PK |
US $224 |
||
|
3
|
3
09409-07308-5PK CLIP(BLACK)ブラック; 3DR:R; 1996-10-01~1997-10-01 |
09409-07308-5PK |
from US $0.95 |
||
|
4
|
4
77530-66A00-1VN
GUARD ASSY,FR FENDER SPL,R
シルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77530-66A00-1VN |
— | ||
|
4
|
4
77530-66A00-26U
ガード,フェンダスプラッシュ,ライト(ホワイト)
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77530-66A00-26U |
— | ||
|
5
|
5
77630-66A00-1VN GUARD ASSY,FR FENDER SPL,Lシルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77630-66A00-1VN |
US $272.32 |
||
|
5
|
5
77630-66A00-26U
ガード,フェンダスプラッシュ,レフト(ホワイト)
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77630-66A00-26U |
— | ||
|
6
|
6
77611-77E01-1VN PROTECTOR,GUARD EDGEシルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-1VN |
US $40.80 |
||
|
6
|
6
77611-77E01-26U PROTECTOR,GUARD EDGEホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-26U |
US $11.99 |
||
|
7
|
7
09409-10309-000 CLIP3DR:R; 1996-10-01~1997-10-01 |
09409-10309-000 |
from US $1.22 |
||
|
8
|
8
77550-66A00-1VN
GUARD ASSY,RR SPL,R
シルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77550-66A00-1VN |
— | ||
|
8
|
8
77550-66A00-26U
ガード,リヤスプラッシュ,ライト(ホワイト)
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77550-66A00-26U |
— | ||
|
9
|
9
77650-66A00-1VN
GUARD ASSY,RR SPL,L
シルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77650-66A00-1VN |
— | ||
|
9
|
9
77650-66A00-26U
GUARD ASSY,RR SPL,L
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77650-66A00-26U |
— | ||
|
10
|
10
77611-77E01-1VN PROTECTOR,GUARD EDGEシルバ-,RH,L:1067>812; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-1VN |
US $40.80 |
||
|
10
|
10
77611-77E01-26U PROTECTOR,GUARD EDGEホワイト,RH,L:1067>812; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-26U |
US $11.99 |
||
|
11
|
11
77611-77E01-1VN PROTECTOR,GUARD EDGEシルバ-,RH,L:1067>88; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-1VN |
US $40.80 |
||
|
11
|
11
77611-77E01-26U PROTECTOR,GUARD EDGEホワイト,RH,L:1067>88; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-26U |
US $11.99 |
||
|
12
|
12
77611-77E01-1VN PROTECTOR,GUARD EDGEシルバ-,LH,L:1067>1038; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-1VN |
US $40.80 |
||
|
12
|
12
77611-77E01-26U PROTECTOR,GUARD EDGEホワイト,LH,L:1067>1038; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-26U |
US $11.99 |
||
|
13
|
13
09409-10309-000 CLIP3DR:R; 1996-10-01~1997-10-01 |
09409-10309-000 |
from US $1.22 |
||
|
14
|
14
08316-10063-000
Nut
3DR:R; 1996-10-01~1997-10-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT3DR:R; 1996-10-01~1997-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
77560-78E01-1VN GUARD ASSY,FR DR SPL,Rシルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77560-78E01-1VN |
US $320.16 |
||
|
15
|
15
77560-78E01-26U
GUARD ASSY,FR DR SPL,R
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77560-78E01-26U |
— | ||
|
16
|
16
77660-78E01-1VN GUARD ASSY,FR DR SPL,Lシルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77660-78E01-1VN |
US $320.16 |
||
|
16
|
16
77660-78E01-26U
GUARD ASSY,FR DR SPL,L
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77660-78E01-26U |
— | ||
|
17
|
17
77611-77E01-1VN PROTECTOR,GUARD EDGEシルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-1VN |
US $40.80 |
||
|
17
|
17
77611-77E01-26U PROTECTOR,GUARD EDGEホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77611-77E01-26U |
US $11.99 |
||
|
18
|
18
77259-71B00-000 CLIP3DR:R; 1996-10-01~1997-10-01 |
77259-71B00-000 |
US $2.08 |
||
|
19
|
19
77536-60A10-1VN
PROTECTOR,SILL SIDE CTR
シルバ-; 3DR:R; 1996-10-01~1997-10-01 |
77536-60A10-1VN |
— | ||
|
19
|
19
77536-60A10-26U
プロテクタ,シルサイド,センタ(ホワイト)
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77536-60A10-26U |
— | ||
|
20
|
20
77537-60A10-1VN CLIP,SILL SIDE PROTRシルバー; 3DR:R; 1996-10-01~1997-10-01 |
77537-60A10-1VN |
US $3.35 |
||
|
20
|
20
77537-60A10-26U
クリップ,シルサイドプロテクタ(ホワイト)
ホワイト; 3DR:R; 1996-10-01~1997-10-01 |
77537-60A10-26U |
— | ||
|
21
|
21
77534-60A10-000 HOLDER,PROTECTOR CTR,R3DR:R; 1996-10-01~1997-10-01 |
77534-60A10-000 |
US $80.80 |
||
|
22
|
22
77544-60A10-000 HOLDER,PROTECTOR CTR,L3DR:R; 1996-10-01~1997-10-01 |
77544-60A10-000 |
US $69.17 |
||
|
23
|
23
03142-05123-000
Screw
3DR:R; 1996-10-01~1997-10-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0512A-000 SCREWScrew, belt cooling duct 3DR:R; 1996-10-01~1997-10-01 |
03141-0512A-000 |
from US $0.76 |
||
|
24
|
24
09148-05018-000 NUT3DR:R; 1996-10-01~1997-10-01 |
09148-05018-000 |
from US $0.63 |
||
