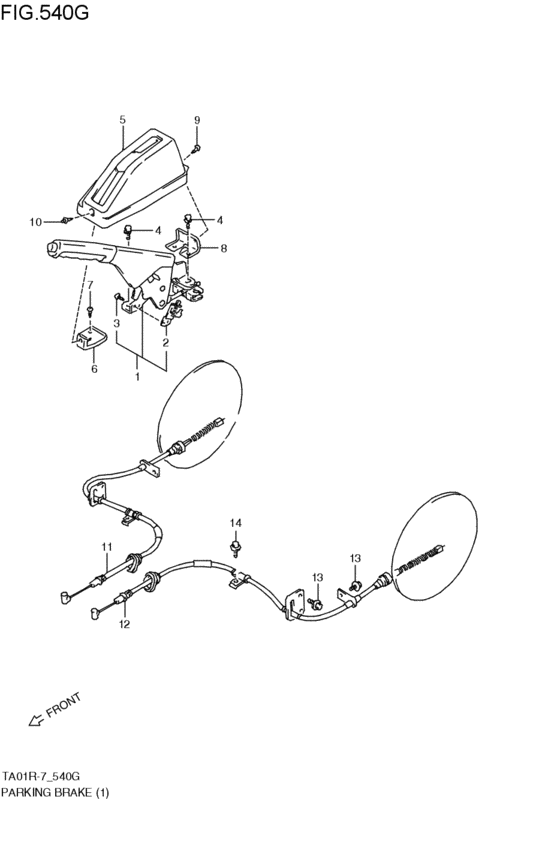

parking brakes (R; 1996-10-01~1997-10-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- G
- body
- R
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-60A20-000
レバーアッシ,パーキングブレーキ(キーアリ)
キーアリ; R; 1996-10-01~1997-10-01 |
54100-60A20-000 |
— | ||
|
2
|
2
37940-60A10-000 SWITCH ASSY,PARKING BRAKER; 1996-10-01~1997-10-01 |
37940-60A10-000 |
US $13.12 |
||
|
3
|
3
02142-04103-000
Screw 4x10
R; 1996-10-01~1997-10-01 |
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREWR; 1996-10-01~1997-10-01 |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
01570-08203-000
Bolt
R; 1996-10-01~1997-10-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 BoltR; 1996-10-01~1997-10-01 |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLTR; 1996-10-01~1997-10-01 |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
54510-60A10-T01
カバーアッシ,パーキングブレーキレバー(グレー)
グレ-; R; 1996-10-01~1997-10-01 |
54510-60A10-T01 |
— | ||
|
6
|
6
54611-60A00-000
BRACKET,PARKING COVER FR
R; 1996-10-01~1997-10-01 |
54611-60A00-000 |
— | ||
|
7
|
7
03241-06123-000
Screw
R; 1996-10-01~1997-10-01 |
03241-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0612A-000 SCREWR; 1996-10-01~1997-10-01 |
03241-0612A-000 |
US $0.80 |
||
|
8
|
8
54711-60A00-000 BRACKET,PARKING COVER RRR; 1996-10-01~1997-10-01 |
54711-60A00-000 |
US $2.08 |
||
|
9
|
9
03241-05123-000
Screw
R; 1996-10-01~1997-10-01 |
03241-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0512A-000 SCREWR; 1996-10-01~1997-10-01 |
03241-0512A-000 |
from US $0.68 |
||
|
10
|
10
09409-06314-5PK CLIP(BLACK)ブラック; R; 1996-10-01~1997-10-01 |
09409-06314-5PK |
from US $1.52 |
||
|
11
|
11
54410-60A60-000 CABLE,PARKING BRAKE,RR; 1996-10-01~1997-10-01 |
54410-60A60-000 |
US $124.80 |
||
|
12
|
12
54420-60A60-000 CABLE,PARKING BRAKE,LR; 1996-10-01~1997-10-01 |
54420-60A60-000 |
US $124.80 |
||
|
13
|
13
09136-06134-000 BOLT(6X16)R; 1996-10-01~1997-10-01 |
09136-06134-000 |
from US $1.12 |
||
|
14
|
14
01550-08123-000
Bolt
R; 1996-10-01~1997-10-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0812B-000 BoltPlug, drain R; 1996-10-01~1997-10-01 |
01550-0812B-000 |
from US $0.96 |
||
|
14
|
14
01550-0812A-000 BOLTR; 1996-10-01~1997-10-01 |
01550-0812A-000 |
from US $0.91 |
||
