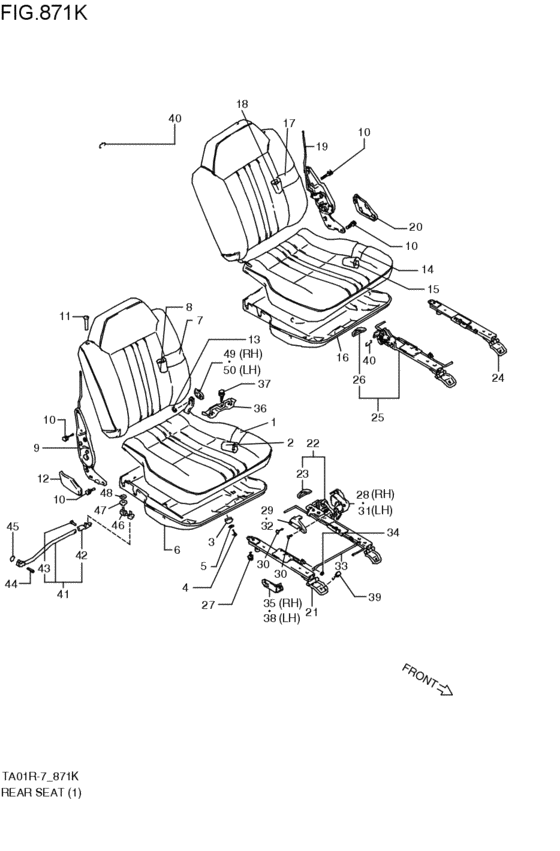

rear seat (3DR; 1996-10-01~1997-10-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- G
- body
- R
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-60A10-000
クッションサブアッシ,リヤシート,ライト
3DR; 1996-10-01~1997-10-01 |
87105-60A10-000 |
— | ||
|
2
|
2
87180-60A50-H4K
トリム,リヤシートクッション,ライト
ブルー/グレー; 3DR:(G,C); 1996-10-01~1997-10-01 |
87180-60A50-H4K |
— | ||
|
3
|
3
87291-60A10-000 CUSHION,RR SEAT3DR; 1996-10-01~1997-10-01 |
87291-60A10-000 |
US $1.95 |
||
|
4
|
4
03242-05163-000
Screw
3DR; 1996-10-01~1997-10-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW3DR; 1996-10-01~1997-10-01 |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
08322-01053-000
Washer
3DR; 1996-10-01~1997-10-01 |
08322-01053-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0105B-000 WASHER3DR; 1996-10-01~1997-10-01 |
08322-0105B-000 |
from US $0.76 |
||
|
5
|
5
08322-0105A-000 WASHERWasher, front 3DR; 1996-10-01~1997-10-01 |
08322-0105A-000 |
from US $0.80 |
||
|
6
|
6
87191-63A10-T01
ボード,リヤシートクッションアンダ,ライト(グレー)
グレ-; 3DR; 1996-10-01~1997-10-01 |
87191-63A10-T01 |
— | ||
|
7
|
7
87305-60A10-000
バックサブアッシ,リヤシート,ライト
3DR; 1996-10-01~1997-04-01 |
87305-60A10-000 |
— | ||
|
7
|
7
87305-70E00-000
BACK S/ASSY,RR SEAT,R
3DR; 1997-05-01~1997-10-01 |
87305-70E00-000 |
— | ||
|
8
|
8
87380-70E10-H4K
トリム,リヤシートバック,ライト
ブルー/グレー; 3DR:(G,C); 1996-10-01~1997-10-01 |
87380-70E10-H4K |
— | ||
|
9
|
9
87210-60A12-5PK
RECLINING,RR SEAT,R
ブラック; 3DR; 1996-10-01~1997-10-01 |
87210-60A12-5PK |
— | ||
|
10
|
10
01570-08163-000
Bolt
3DR; 1996-10-01~1997-10-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
10
|
10
01570-0816A-000 BOLT3DR; 1996-10-01~1997-10-01 |
01570-0816A-000 |
from US $0.96 |
||
|
11
|
11
87211-60A10-T01 KNOB,RR SEAT RECLININGグレー; 3DR; 1996-10-01~1997-10-01 |
87211-60A10-T01 |
US $2.43 |
||
|
12
|
12
87221-70E00-5PK COVER,RR SEAT RECLINING LWR,Rブラック; 3DR; 1996-10-01~1997-10-01 |
87221-70E00-5PK |
US $7.36 |
||
|
13
|
13
08332-11086-000
E ring
3DR; 1996-10-01~1997-10-01 |
08332-11086-000 |
— | ||
| replacement | |||||
|
13
|
13
08332-1108A-000 E RING3DR; 1996-10-01~1997-10-01 |
08332-1108A-000 |
from US $0.96 |
||
|
14
|
14
87106-60A10-000
CUSHION SUB ASSY,REAR SEAT,L
3DR; 1996-10-01~1997-10-01 |
87106-60A10-000 |
— | ||
|
15
|
15
87580-60A50-H4K
トリム,リヤシートクッション,レフト
ブルー/グレー; 3DR:(G,C); 1996-10-01~1997-10-01 |
87580-60A50-H4K |
— | ||
|
16
|
16
87591-63A10-T01
ボード,リヤシートクッションアンダ,レフト(グレー)
グレ-; 3DR; 1996-10-01~1997-10-01 |
87591-63A10-T01 |
— | ||
|
17
|
17
87306-60A10-000
BACK S/ASSY,RR SEAT,L
3DR; 1996-10-01~1997-04-01 |
87306-60A10-000 |
— | ||
|
17
|
17
87306-70E00-000
BACK S/ASSY,RR SEAT,L
3DR; 1997-05-01~1997-10-01 |
87306-70E00-000 |
— | ||
|
18
|
18
87780-70E10-H4K
トリム,リヤシートバック,レフト
ブルー/グレー; 3DR:(G,C); 1996-10-01~1997-10-01 |
87780-70E10-H4K |
— | ||
|
19
|
19
87610-60A12-5PK
RECLINING,RR SEAT,L
ブラック; 3DR; 1996-10-01~1997-10-01 |
87610-60A12-5PK |
— | ||
|
20
|
20
87621-70E00-5PK COVER,RR SEAT RECLINING LWR,Lブラック; 3DR; 1996-10-01~1997-10-01 |
87621-70E00-5PK |
US $7.36 |
||
|
21
|
21
87810-69A02-000
アジャスタ,リヤシートスライドアウタ,ライト
3DR; 1996-10-01~1997-10-01 |
87810-69A02-000 |
— | ||
|
22
|
22
87820-69A03-000
アジャスタ,リヤシートスライドインナ,ライト
3DR; 1996-10-01~1997-10-01 |
87820-69A03-000 |
— | ||
|
23
|
23
87836-60A00-5PK
KNOB,LOCK LEVER,R
ブラック; 3DR; 1996-10-01~1997-10-01 |
87836-60A00-5PK |
— | ||
|
24
|
24
87910-69A02-000
アジャスタ,リヤシートスライドアウタ,レフト
3DR; 1996-10-01~1997-10-01 |
87910-69A02-000 |
— | ||
|
25
|
25
87920-69A03-000
アジャスタ,リヤシートスライドインナ,レフト
3DR; 1996-10-01~1997-10-01 |
87920-69A03-000 |
— | ||
|
26
|
26
87936-60A00-5PK
KNOB,LOCK LEVER,L
ブラック; 3DR; 1996-10-01~1997-10-01 |
87936-60A00-5PK |
— | ||
|
27
|
27
01550-08163-000
Bolt, holder
3DR; 1996-10-01~1997-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0816B-000 BOLT3DR; 1996-10-01~1997-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
27
|
27
01550-0816A-000 BOLTBolt, rear 3DR; 1996-10-01~1997-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
28
|
28
87831-60A10-5PK
COVER,RR SEAT LOCK OUTER,R
ブラック; 3DR; 1996-10-01~1997-10-01 |
87831-60A10-5PK |
— | ||
|
29
|
29
87834-60A10-5PK
COVER,RR SEAT LOCK INNER,R
ブラック; 3DR; 1996-10-01~1997-10-01 |
87834-60A10-5PK |
— | ||
|
30
|
30
03241-04123-000
Screw
3DR; 1996-10-01~1997-10-01 |
03241-04123-000 |
— | ||
| replacement | |||||
|
30
|
30
03242-0412B-000 SCREW3DR; 1996-10-01~1997-10-01 |
03242-0412B-000 |
from US $0.80 |
||
|
31
|
31
87931-60A10-5PK
COVER,RR SEAT LOCK OUTER,L
ブラック; 3DR; 1996-10-01~1997-10-01 |
87931-60A10-5PK |
— | ||
|
32
|
32
87934-60A10-5PK
COVER,RR SEAT LOCK INNER,L
ブラック; 3DR; 1996-10-01~1997-10-01 |
87934-60A10-5PK |
— | ||
|
33
|
33
87899-60A10-000
ROD,RR SEAT SLIDE ADJUSTER
3DR; 1996-10-01~1997-10-01 |
87899-60A10-000 |
— | ||
|
34
|
34
08332-11055-000
E-ring
3DR; 1996-10-01~1997-10-01 |
08332-11055-000 |
— | ||
| replacement | |||||
|
34
|
34
08332-1105A-000 E RING3DR; 1996-10-01~1997-10-01 |
08332-1105A-000 |
from US $0.91 |
||
|
35
|
35
87840-60A10-000 STRIKER,SEAT LOCK OUTER,R3DR; 1996-10-01~1997-10-01 |
87840-60A10-000 |
US $38.40 |
||
|
36
|
36
87890-60A11-000
STRIKER,RR SEAT LOCK
3DR; 1996-10-01~1997-10-01 |
87890-60A11-000 |
— | ||
|
37
|
37
01550-10203-000
Bolt
3DR; 1996-10-01~1997-10-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-1020A-000 BOLTBolt, bal sprocket 3DR; 1996-10-01~1997-10-01 |
01550-1020A-000 |
from US $0.96 |
||
|
38
|
38
87940-60A10-000
STRIKER,SEAT LOCK OUTER,L
3DR; 1996-10-01~1997-10-01 |
87940-60A10-000 |
— | ||
|
39
|
39
01570-08253-000
Bolt, upper
3DR; 1996-10-01~1997-10-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
39
|
39
01570-0825B-000 BOLT3DR; 1996-10-01~1997-10-01 |
01570-0825B-000 |
US $1.12 |
||
|
39
|
39
01570-0825A-000 BOLT3DR; 1996-10-01~1997-10-01 |
01570-0825A-000 |
from US $1.06 |
||
|
40
|
40
09387-19001-000 RING3DR; 1996-10-01~1997-10-01 |
09387-19001-000 |
US $1.76 |
||
|
41
|
41
87270-60A11-000
STOPPER,REAR SEAT
3DR; 1996-10-01~1997-10-01 |
87270-60A11-000 |
— | ||
|
42
|
42
87275-60A11-000 HOLDER,STOPPER ROD3DR; 1996-10-01~1997-10-01 |
87275-60A11-000 |
US $3.16 |
||
|
43
|
43
87276-60A10-000
PIN,HOLDER
3DR; 1996-10-01~1997-10-01 |
87276-60A10-000 |
— | ||
|
44
|
44
87278-60A11-000 PIN,REAR SEAT STOPPER3DR; 1996-10-01~1997-10-01 |
87278-60A11-000 |
US $1.80 |
||
|
45
|
45
09148-03011-000 NUT3DR; 1996-10-01~1997-10-01 |
09148-03011-000 |
from US $2.84 |
||
|
46
|
46
87279-60A11-000 HOLDER,RR SEAT STOPPER3DR; 1996-10-01~1997-10-01 |
87279-60A11-000 |
US $5.85 |
||
|
47
|
47
08322-01063-000
Washer
3DR; 1996-10-01~1997-10-01 |
08322-01063-000 |
— | ||
| replacement | |||||
|
47
|
47
08322-0106B-000 WASHER3DR; 1996-10-01~1997-10-01 |
08322-0106B-000 |
from US $0.76 |
||
|
48
|
48
09148-06005-000
Nut seat moldin
3DR; 1996-10-01~1997-10-01 |
09148-06005-000 |
— | ||
| replacement | |||||
|
48
|
48
09148-06008-000 NUTNut, adjuster knob 3DR; 1996-10-01~1997-10-01 |
09148-06008-000 |
from US $0.89 |
||
|
49
|
49
87399-70E00-000 PROTECTOR,RR SEAT BACK HINGE,R3DR; 1996-10-01~1997-10-01 |
87399-70E00-000 |
US $9.16 |
||
|
50
|
50
87799-70E00-000 PROTECTOR,RR SEAT BACK HINGE,L3DR; 1996-10-01~1997-10-01 |
87799-70E00-000 |
US $9.16 |
||
