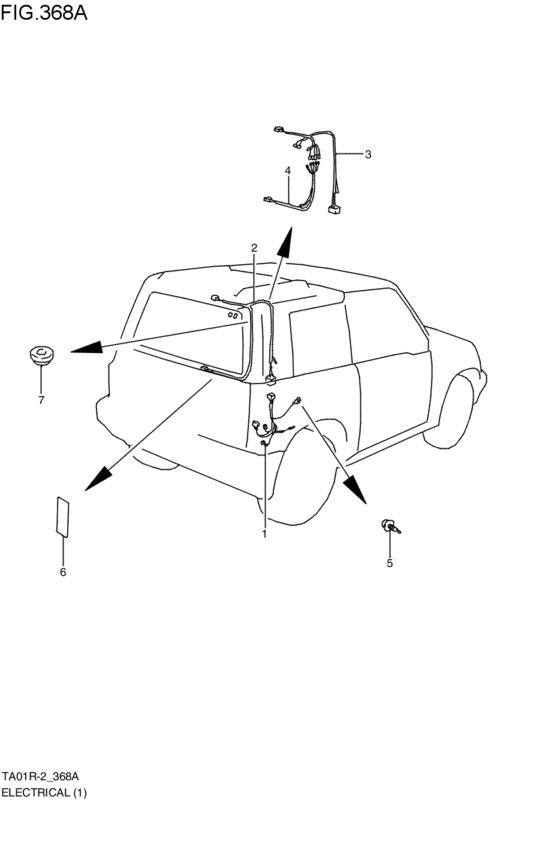

electrical (レジントップ; D; 1990-08-01~) Diagram Suzuki ESCUDO
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- XX
- type
- T2
- body
- D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36843-57B00-000
ワイヤ,バックドアジョイント
D; 1990-08-01~ |
36843-57B00-000 |
— | ||
|
2
|
2
36844-57B00-000
ワイヤ,バックドア
D:T2; 1990-08-01~1991-08-01 |
36844-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
36849-57B00-000
New Genuine Part
D:T2; 1990-08-01~1991-08-01 |
36849-57B00-000 |
— | ||
|
5
|
5
09139-05028-000 SCREW(5X14)D; 1990-08-01~ |
09139-05028-000 |
from US $0.79 |
||
|
6
|
6
36930-82000-000
カバー
D; 1990-08-01~ |
36930-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
36930-82010-000 COVER,HARNESSCover, roof wire D; 1990-08-01~ |
36930-82010-000 |
from US $1.51 |
||
|
7
|
7
09308-14006-000 GROMMETD; 1990-08-01~ |
09308-14006-000 |
from US $2.88 |
||
