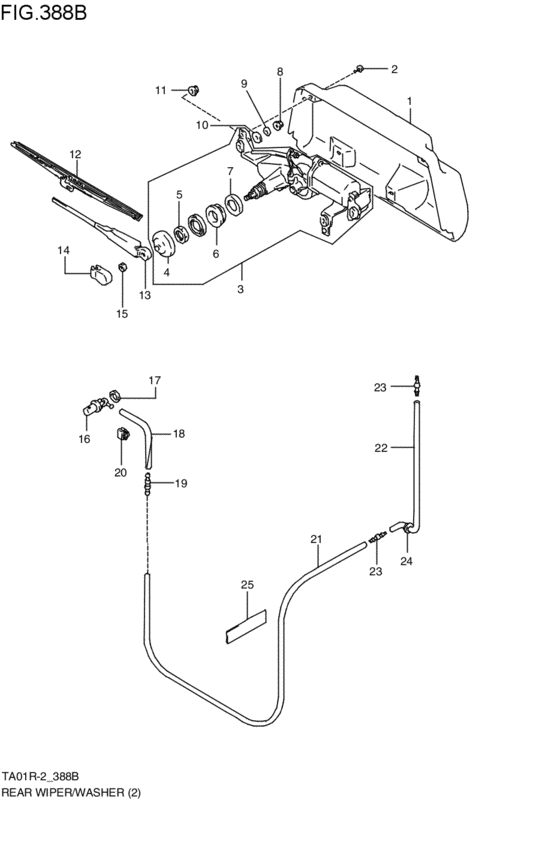

rear wind windshield wiper / washer (レジントップ; D; 1990-08-01~) Diagram Suzuki ESCUDO
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- XX
- type
- T2
- body
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38273-60A00-000
カバー,ワイパモータ
D; 1990-08-01~ |
38273-60A00-000 |
— | ||
|
2
|
2
02142-05083-000
Screw
D; 1990-08-01~ |
02142-05083-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-0508A-000 SCREWScrew, cap D; 1990-08-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
3
|
3
38811-60A00-000
モータアッシ,ワイパ
D; 1990-08-01~ |
38811-60A00-000 |
— | ||
|
4
|
4
38274-60A00-000
キャップ,ワイパモータピボット
D; 1990-08-01~ |
38274-60A00-000 |
— | ||
|
5
|
5
38274-60A20-000
ナット,ワイパモータピボット
D; 1990-08-01~ |
38274-60A20-000 |
— | ||
|
6
|
6
38274-60A10-000
シール,ワイパモータピボット
D; 1990-08-01~ |
38274-60A10-000 |
— | ||
|
7
|
7
38274-60A40-000
ワッシャ,ワイパモータピボット
D; 1990-08-01~ |
38274-60A40-000 |
— | ||
|
8
|
8
08316-10063-000
Nut
D; 1990-08-01~1991-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUTD; 1990-08-01~1991-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
08321-01063-000
Washer, lock
D; 1990-08-01~1991-02-01 |
08321-01063-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCKD; 1990-08-01~1991-02-01 |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) D; 1990-08-01~1991-02-01 |
09160-06019-000 |
from US $0.41 |
||
|
11
|
11
08361-15063-000
Nut
D; 1991-02-01~ |
08361-15063-000 |
— | ||
| replacement | |||||
|
11
|
11
08361-1506A-000 NUTD; 1991-02-01~ |
08361-1506A-000 |
from US $0.80 |
||
|
12
|
12
38822-60A00-000
ブレードアッシ,ワイパ
D; 1990-08-01~ |
38822-60A00-000 |
— | ||
|
13
|
13
38821-60A00-000
アームアッシ,ワイパ
D; 1990-08-01~ |
38821-60A00-000 |
— | ||
|
14
|
14
38315-60A00-000
カバー,ワイパアームヘッド
D; 1990-08-01~ |
38315-60A00-000 |
— | ||
|
15
|
15
08316-10063-000
Nut
D; 1990-08-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTD; 1990-08-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
38841-60A00-000
ノズル,リヤウォッシャ
D; 1990-08-01~ |
38841-60A00-000 |
— | ||
|
17
|
17
38843-60A00-000
ガスケット,リヤウォッシャノズル
D; 1990-08-01~ |
38843-60A00-000 |
— | ||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>150; D; 1990-08-01~ |
38491-61A00-000 |
from US $3.60 |
||
|
19
|
19
38496-61A00-000 VALVE,CHECKD; 1990-08-01~ |
38496-61A00-000 |
from US $2.08 |
||
|
20
|
20
09403-07315-000
Clamp, lead wire
D; 1990-08-01~ |
09403-07315-000 |
— | ||
| replacement | |||||
|
20
|
20
09403-04310-000 CLAMPD; 1990-08-01~ |
09403-04310-000 |
from US $7.28 |
||
|
21
|
21
38491-79020-000 HOSE,WASHER L:3500L:3500>2900 DENSO; D; 1990-08-01~ |
38491-79020-000 |
from US $1.60 |
||
|
22
|
22
38835-61A00-000
HOSE,WASHER
DENSO; D; 1990-08-01~ |
38835-61A00-000 |
— | ||
|
23
|
23
38838-82000-000 CONNECTORDENSO; D; 1990-08-01~ |
38838-82000-000 |
from US $0.23 |
||
|
24
|
24
38839-82000-000 GROMMETDENSO; D; 1990-08-01~ |
38839-82000-000 |
from US $2.18 |
||
|
25
|
25
36930-82000-000
カバー
D; 1990-08-01~ |
36930-82000-000 |
— | ||
| replacement | |||||
|
25
|
25
36930-82010-000 COVER,HARNESSCover, roof wire D; 1990-08-01~ |
36930-82010-000 |
from US $1.51 |
||
