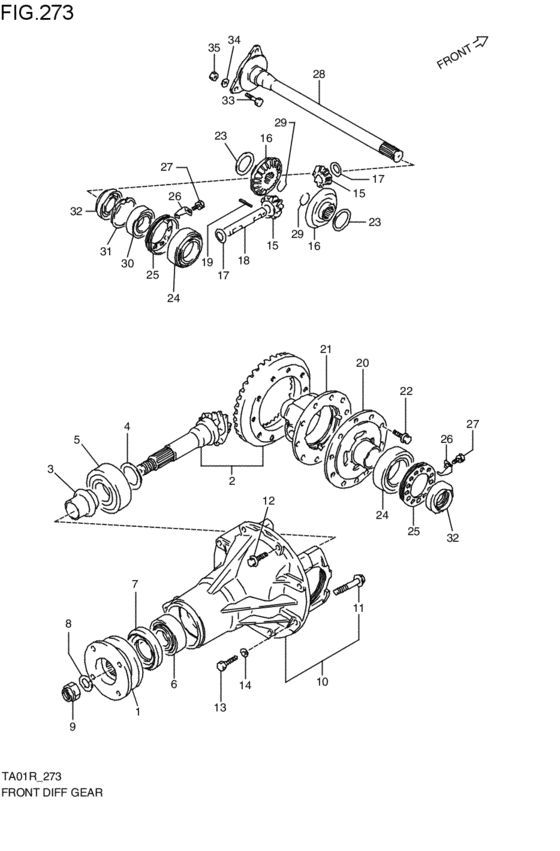

フロントデファレンシャルギヤ (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-60A00-000
フランジ,ユニバーサルジョイント
1988-05-01~1990-07-01 |
27110-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT1988-05-01~1990-07-01 |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-60820-000
ベベルピニオン/ギヤセット
5MT; 1988-05-01~1990-07-01 |
27300-60820-000 |
— | ||
| replacements | |||||
|
2
|
2
27300-60822-000 PINION,DRIVE BEVEL5MT; 1988-05-01~1990-07-01 |
27300-60822-000 |
US $651.20 |
||
|
2
|
2
27110-56B01-000 FLANGE,UNIVERSAL JOINT5MT; 1988-05-01~1990-07-01 |
27110-56B01-000 |
US $131.20 |
||
|
3
|
3
27315-83001-000
スペーサ,ドライブベベルピニオン
1988-05-01~1990-07-01 |
27315-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION1988-05-01~1990-07-01 |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35012-000 SHIM(35X42X1)1988-05-01~1990-07-01 |
09181-35012-000 |
US $25 |
||
|
4
|
4
09181-35013-000
シム,T:1.03
1988-05-01~1990-07-01 |
09181-35013-000 |
— | ||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
1988-05-01~1990-07-01 |
09181-35014-000 |
— | ||
|
4
|
4
09181-35015-000
シム,T:1.09
1988-05-01~1990-07-01 |
09181-35015-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
1988-05-01~1990-07-01 |
09181-35014-000 |
— | ||
|
4
|
4
09181-35016-000
シム,T:1.12
1988-05-01~1990-07-01 |
09181-35016-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)1988-05-01~1990-07-01 |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35017-000
シム,T:1.15
1988-05-01~1990-07-01 |
09181-35017-000 |
— | ||
|
4
|
4
09181-35018-000
シム,T:1.18
1988-05-01~1990-07-01 |
09181-35018-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)1988-05-01~1990-07-01 |
09181-35119-000 |
US $2.24 |
||
|
4
|
4
09181-35019-000
シム,T:1.21
1988-05-01~1990-07-01 |
09181-35019-000 |
— | ||
|
4
|
4
09181-35020-000
シム,T:1.24
1988-05-01~1990-07-01 |
09181-35020-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)1988-05-01~1990-07-01 |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35021-000
シム,T:1.27
1988-05-01~1990-07-01 |
09181-35021-000 |
— | ||
|
4
|
4
09181-35022-000
シム,T:1.30
1988-05-01~1990-07-01 |
09181-35022-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)1988-05-01~1990-07-01 |
09181-35125-000 |
US $21.70 |
||
|
4
|
4
09181-35023-000 SHIM(35X42X0.3)1988-05-01~1990-07-01 |
09181-35023-000 |
US $2.24 |
||
| replacement | |||||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 1988-05-01~1990-07-01 |
09181-35101-000 |
from US $2.24 |
||
|
5
|
5
09265-35002-000
ベアリング,35X80X22.75
1988-05-01~1990-07-01 |
09265-35002-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75)1988-05-01~1990-07-01 |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-30002-000
ベアリング,30X72X20.75
1988-05-01~1990-07-01 |
09265-30002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-30010-000 BEARING(30X72X20.75)1988-05-01~1990-07-01 |
09265-30010-000 |
US $45.60 |
||
|
7
|
7
09283-40013-000
オイルシール,40X72X10
1988-05-01~1990-07-01 |
09283-40013-000 |
— | ||
| replacements | |||||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)1988-05-01~1990-07-01 |
09283-40027-000 |
US $14.88 |
||
|
7
|
7
09283-40022-000 SEAL,OIL(40X72X18.5)1988-05-01~1990-07-01 |
09283-40022-000 |
US $12.16 |
||
|
8
|
8
09160-20056-000 WASHER(20.1X36X4)1988-05-01~1990-07-01 |
09160-20056-000 |
US $2.88 |
||
|
9
|
9
09159-20003-000
ナット
1988-05-01~1990-07-01 |
09159-20003-000 |
— | ||
| replacement | |||||
|
9
|
9
27375-60A00-000 NUT,UNIVERSAL JOINT1988-05-01~1990-07-01 |
27375-60A00-000 |
US $7.84 |
||
|
10
|
10
27450-60A01-000
キャリアアッシ,ディファレンシャル,フロント
1988-05-01~1990-07-01 |
27450-60A01-000 |
— | ||
| replacements | |||||
|
10
|
10
27450-60A30-000 CARRIER ASSY,DIFT FR1988-05-01~1990-07-01 |
27450-60A30-000 |
US $712 |
||
|
10
|
10
09265-35011-000 BEARING(35X80X22.75)1988-05-01~1990-07-01 |
09265-35011-000 |
US $40 |
||
|
10
|
10
09265-35007-000
New Genuine Part
1988-05-01~1990-07-01 |
09265-35007-000 |
— | ||
|
11
|
11
09111-12010-000 BOLT(12X58)1988-05-01~1990-07-01 |
09111-12010-000 |
US $2.43 |
||
|
12
|
12
01517-08303-000
ボルト
1988-05-01~1990-07-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover 1988-05-01~1990-07-01 |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
01550-0830B-000 Bolt1988-05-01~1990-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
13
|
13
09111-08076-000
BOLT(8X36)
1988-05-01~1990-07-01 |
09111-08076-000 |
— | ||
|
14
|
14
08321-21103-000 Lock washer1988-05-01~1990-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1988-05-01~1990-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
14
|
14
08321-0110A-000 WASHER,LOCK1988-05-01~1990-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
15
|
15
27331-60A10-000
ピニオン,ディファレンシャル
1988-05-01~1990-07-01 |
27331-60A10-000 |
— | ||
| replacements | |||||
|
15
|
15
27331-76A20-000
PINION,DIFFERENTIAL
1988-05-01~1990-07-01 |
27331-76A20-000 |
— | ||
|
15
|
15
27331-83020-000 PINION,DIFFERENTIAL1988-05-01~1990-07-01 |
27331-83020-000 |
US $49.40 |
||
|
15
|
15
27331-76A21-000 Pinion,differential1988-05-01~1990-07-01 |
27331-76A21-000 |
from US $43.75 |
||
|
16
|
16
27341-60A01-000
ギヤ,ディファレンシャル
1988-05-01~1990-07-01 |
27341-60A01-000 |
— | ||
| replacements | |||||
|
16
|
16
27341-76A21-000
GEAR,DIFF
1988-05-01~1990-07-01 |
27341-76A21-000 |
— | ||
|
16
|
16
27341-76A22-000 Gear,diff1988-05-01~1990-07-01 |
27341-76A22-000 |
from US $55.28 |
||
|
17
|
17
09164-15006-000 WASHER1988-05-01~1990-07-01 |
09164-15006-000 |
US $1.67 |
||
|
18
|
18
27351-64B01-000
シャフト,ピニオン
1988-05-01~1990-07-01 |
27351-64B01-000 |
— | ||
| replacement | |||||
|
18
|
18
27351-64B20-000 SHAFT,DIFF SIDE PINION1988-05-01~1990-07-01 |
27351-64B20-000 |
US $20.80 |
||
|
19
|
19
09205-05007-000 PIN,SPRING(5X36)1988-05-01~1990-07-01 |
09205-05007-000 |
US $1.76 |
||
|
20
|
20
27411-60A02-000
ケース,ディファレンシャル
1988-05-01~1990-07-01 |
27411-60A02-000 |
— | ||
|
21
|
21
27421-60A02-000
ケース,ディファレンシャル
1988-05-01~1990-07-01 |
27421-60A02-000 |
— | ||
|
22
|
22
09103-10184-000 BOLT(10X25)1988-05-01~1990-07-01 |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
22
|
22
09103-10253-000
Bolt,10x28
1988-05-01~1990-07-01 |
09103-10253-000 |
— | ||
|
23
|
23
09160-35002-000 WASHER(35X46X1)1988-05-01~1990-07-01 |
09160-35002-000 |
from US $5.46 |
||
|
23
|
23
09160-35003-000 WASHER(35X46X1.1)1988-05-01~1990-07-01 |
09160-35003-000 |
from US $2.24 |
||
|
23
|
23
09160-35004-000 WASHER(35X46X1.2)1988-05-01~1990-07-01 |
09160-35004-000 |
US $2.24 |
||
|
23
|
23
09160-35006-000 WASHER(35X46X0.9)1988-05-01~1990-07-01 |
09160-35006-000 |
from US $2.24 |
||
|
24
|
24
09265-45002-000 BEARING(45.2X80X19.84)1988-05-01~1990-07-01 |
09265-45002-000 |
US $45.60 |
||
|
25
|
25
27461-83000-000 ADJUSTER,DIFF SIDE BEARING1988-05-01~1990-07-01 |
27461-83000-000 |
US $7.52 |
||
|
26
|
26
27462-63202-000 PLATE,BEARING LOCK1988-05-01~1990-07-01 |
27462-63202-000 |
US $2.74 |
||
|
27
|
27
01134-08126-000
Bolt
1988-05-01~1990-07-01 |
01134-08126-000 |
— | ||
| replacement | |||||
|
27
|
27
01570-0812A-000 Bolt1988-05-01~1990-07-01 |
01570-0812A-000 |
US $14.40 |
||
|
28
|
28
27471-60A01-000
シャフト,フロントドライブ
1988-05-01~1990-07-01 |
27471-60A01-000 |
— | ||
| replacement | |||||
|
28
|
28
27471-60A02-000
SHAFT,FRONT DRIVE
1988-05-01~1990-07-01 |
27471-60A02-000 |
— | ||
|
29
|
29
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 1988-05-01~1990-07-01 |
09381-24001-000 |
from US $1.60 |
||
|
30
|
30
08133-62067-000 BEARING1988-05-01~1990-07-01 |
08133-62067-000 |
US $24 |
||
|
31
|
31
08331-41628-000 サークリップ1988-05-01~1990-07-01 |
08331-41628-000 |
US $2.33 |
||
| replacement | |||||
|
31
|
31
08331-4162A-000 CIRCLIP1988-05-01~1990-07-01 |
08331-4162A-000 |
from US $4.26 |
||
|
32
|
32
09283-35008-000
Seal, oil (35x62x10)
1988-05-01~1990-07-01 |
09283-35008-000 |
— | ||
| replacement | |||||
|
32
|
32
09283-35052-000 SEAL,OIL(35X62X14.8)1988-05-01~1990-07-01 |
09283-35052-000 |
from US $10.34 |
||
|
33
|
33
09100-10262-000 BOLT(10X29)Bolt, arm knuckle tie-rod end 1988-05-01~1990-07-01 |
09100-10262-000 |
from US $1.60 |
||
|
34
|
34
08321-31103-000
ロックワッシャ
1988-05-01~1990-07-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
34
|
34
08321-0110A-000 WASHER,LOCK1988-05-01~1990-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
34
|
34
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1988-05-01~1990-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
35
|
35
08310-12103-000
Nut
1988-05-01~1990-07-01 |
08310-12103-000 |
— | ||
| replacements | |||||
|
35
|
35
08310-0010B-000 NUT1988-05-01~1990-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
35
|
35
08310-0010A-000 NUT1988-05-01~1990-07-01 |
08310-0010A-000 |
from US $0.80 |
||
