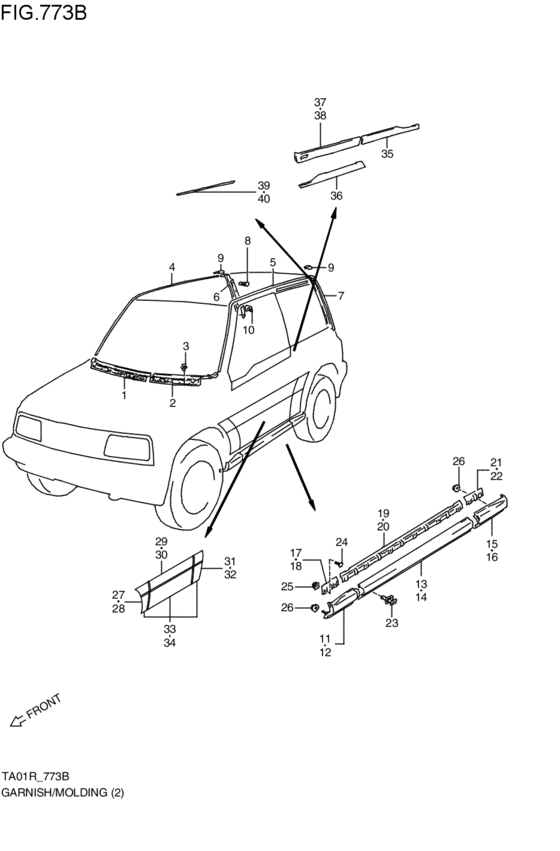

ガ - ニッシュ / モ - ル (ハードトップ; V,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77311-60A10-5PK
ガーニッシュ,カウリングセンタ,ライト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77311-60A10-5PK |
— | ||
| replacement | |||||
|
1
|
1
77311-60A20-5PK GARNISH,COWL CTR,Rブラック; V,W; 1988-05-01~1990-07-01 |
77311-60A20-5PK |
US $152 |
||
|
2
|
2
77312-60A00-5PK
ガーニッシュ,カウリングセンタ,レフト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77312-60A00-5PK |
— | ||
| replacement | |||||
|
2
|
2
77312-60A20-5PK GARNISH,COWL CTR,Lブラック; V,W; 1988-05-01~1990-07-01 |
77312-60A20-5PK |
US $224 |
||
|
3
|
3
09409-07308-5PK CLIP(BLACK)ブラック; V,W; 1988-05-01~1990-07-01 |
09409-07308-5PK |
US $1.76 |
||
|
4
|
4
77571-61A00-5PK
モール,ルーフドリップサイド,ライト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77571-61A00-5PK |
— | ||
| replacement | |||||
|
4
|
4
77571-56B00-5PK MOLDING,ROOF SIDE,Rブラック; V,W; 1988-05-01~1990-07-01 |
77571-56B00-5PK |
US $139.84 |
||
|
5
|
5
77575-61A00-5PK
モール,ルーフドリップサイド,レフト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77575-61A00-5PK |
— | ||
| replacement | |||||
|
5
|
5
77575-56B00-5PK MOLDING,ROOF SIDE,Lブラック; V,W; 1988-05-01~1990-07-01 |
77575-56B00-5PK |
US $139.84 |
||
|
6
|
6
77512-61A00-5PK
ガーニッシュ,リヤピラー,ライト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77512-61A00-5PK |
— | ||
| replacement | |||||
|
6
|
6
77512-61A01-5PK GARNISH,RR PLR,Rブラック; V,W; 1988-05-01~1990-07-01 |
77512-61A01-5PK |
US $53.20 |
||
|
7
|
7
77522-61A00-5PK
ガーニッシュ,リヤピラー,レフト(ブラック)
ブラック; V,W; 1988-05-01~1990-07-01 |
77522-61A00-5PK |
— | ||
| replacement | |||||
|
7
|
7
77522-61A01-5PK GARNISH,RR PLR,Lブラック; V,W; 1988-05-01~1990-07-01 |
77522-61A01-5PK |
US $53.20 |
||
|
8
|
8
09409-10304-000 CLIPV,W; 1988-05-01~1990-07-01 |
09409-10304-000 |
US $12.90 |
||
| replacement | |||||
|
8
|
8
09409-10304-5ES CLIP(BLACK)V,W; 1988-05-01~1990-07-01 |
09409-10304-5ES |
US $1.28 |
||
|
9
|
9
77515-61A00-5PK
Joint,rf drip side mold(black)
ブラック; V,W; 1988-05-01~1990-07-01 |
77515-61A00-5PK |
— | ||
| replacement | |||||
|
9
|
9
77515-61A10-5PK JOINT,ROOF DRIP SIDE MOLDINGブラック; V,W; 1988-05-01~1990-07-01 |
77515-61A10-5PK |
US $10.40 |
||
|
9
|
9
77515-61A10-5PK JOINT,ROOF DRIP SIDE MOLDINGブラック; V,W; 1988-05-01~1990-07-01 |
77515-61A10-5PK |
US $10.40 |
||
|
10
|
10
77517-61A00-000 HOOK,RR PILLAR GARNISHV,W; 1988-05-01~1990-07-01 |
77517-61A00-000 |
US $1.52 |
||
|
11
|
11
77531-60A10-5PK PROTECTOR,SILL SIDE FR,Rブラック; V; 1988-05-01~1990-07-01 |
77531-60A10-5PK |
US $51.52 |
||
|
12
|
12
77541-60A10-5PK PROTECTOR,SIDE SILL FR,Lブラック; V; 1988-05-01~1990-07-01 |
77541-60A10-5PK |
US $89.60 |
||
|
13
|
13
77536-60A10-5PK PROTECTOR,SILL SIDE CTRブラック; V; 1988-05-01~1990-07-01 |
77536-60A10-5PK |
US $107.09 |
||
|
14
|
14
77546-60A10-5PK
プロテクタ,シルサイドセンタ,レフト(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
77546-60A10-5PK |
— | ||
| replacement | |||||
|
14
|
14
77536-60A10-5PK PROTECTOR,SILL SIDE CTRブラック; V; 1988-05-01~1990-07-01 |
77536-60A10-5PK |
US $107.09 |
||
|
15
|
15
77532-60A10-5PK PROTECTOR,SILL SIDE RR,Rブラック; V; 1988-05-01~1990-07-01 |
77532-60A10-5PK |
US $53.73 |
||
|
16
|
16
77542-60A10-5PK PROTECTOR,SIDE SILL RR,Lブラック; V; 1988-05-01~1990-07-01 |
77542-60A10-5PK |
US $53.73 |
||
|
17
|
17
77533-60A10-000
HOLDER,PROTECTOR FR,R
V,W; 1988-05-01~1990-07-01 |
77533-60A10-000 |
— | ||
|
18
|
18
77543-60A10-000
HOLDER,PROTECTOR FR,L
V,W; 1988-05-01~1990-07-01 |
77543-60A10-000 |
— | ||
|
19
|
19
77534-60A10-000 HOLDER,PROTECTOR CTR,RV,W; 1988-05-01~1990-07-01 |
77534-60A10-000 |
US $80.80 |
||
|
20
|
20
77544-60A10-000 HOLDER,PROTECTOR CTR,LV,W; 1988-05-01~1990-07-01 |
77544-60A10-000 |
US $69.17 |
||
|
21
|
21
77535-60A10-000 HOLDER,PROTECTOR RR,RV,W; 1988-05-01~1990-07-01 |
77535-60A10-000 |
US $14.45 |
||
|
22
|
22
77545-60A10-000 HOLDER,PROTECTOR RR,LV,W; 1988-05-01~1990-07-01 |
77545-60A10-000 |
US $14.45 |
||
|
23
|
23
77537-60A10-5PK CLIP,SILL SIDE PROTRブラック; V; 1988-05-01~1990-07-01 |
77537-60A10-5PK |
US $2.08 |
||
|
24
|
24
03141-05163-000
Screw
V,W; 1988-05-01~1990-07-01 |
03141-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0516A-000 SCREWV,W; 1988-05-01~1990-07-01 |
03141-0516A-000 |
from US $0.80 |
||
|
25
|
25
09148-05026-000
ナット
V,W; 1988-05-01~1990-07-01 |
09148-05026-000 |
— | ||
| replacement | |||||
|
25
|
25
09148-05018-000 NUTV,W; 1988-05-01~1990-07-01 |
09148-05018-000 |
US $0.91 |
||
|
26
|
26
08316-26063-000
Nut
V,W; 1988-05-01~1990-07-01 |
08316-26063-000 |
— | ||
| replacements | |||||
|
26
|
26
08316-2006A-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-2006A-000 |
from US $0.76 |
||
|
26
|
26
08316-1006B-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
