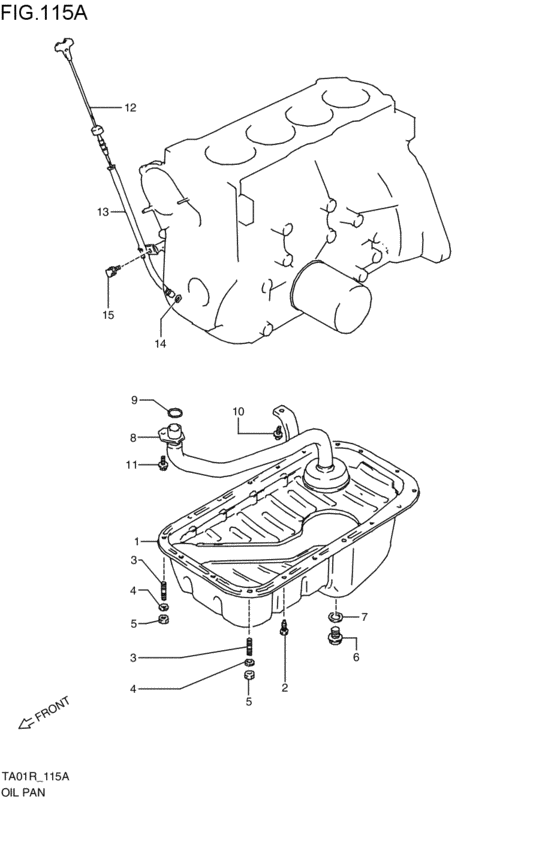

oil pan (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-60A00-000
パン,オイル
1988-05-01~1990-07-01 |
11510-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-60A01-000
PAN,OIL
1988-05-01~1990-07-01 |
11510-60A01-000 |
— | ||
|
2
|
2
09117-06033-000 BOLT(6X12)1988-05-01~1990-07-01 |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
01411-06123-000
Bolt, stud
1988-05-01~1990-07-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUD1988-05-01~1990-07-01 |
01411-0612A-000 |
from US $0.67 |
||
|
4
|
4
08321-21063-000 Lock washer1988-05-01~1990-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK1988-05-01~1990-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
08310-11063-000 Nut m6x1x51988-05-01~1990-07-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod 1988-05-01~1990-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT1988-05-01~1990-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09247-14027-000 PLUG(14X11.5)Plug, oil drain 1988-05-01~1990-07-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
6
|
6
09247-14044-000 DRAIN PLUG (M14x1.5)1988-05-01~1990-07-01 |
09247-14044-000 |
from US $1.67 |
||
|
7
|
7
09168-14012-000
Washer
1988-05-01~1990-07-01 |
09168-14012-000 |
— | ||
| replacement | |||||
|
7
|
7
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 1988-05-01~1990-07-01 |
09168-14015-000 |
from US $1.37 |
||
|
8
|
8
16520-60A00-000
STRAINER,OIL PUMP
1988-05-01~1990-07-01 |
16520-60A00-000 |
— | ||
|
9
|
9
09280-17005-000
Oリング,D:2.4,ID:16.8
1988-05-01~1990-07-01 |
09280-17005-000 |
— | ||
| replacement | |||||
|
9
|
9
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) 1988-05-01~1990-07-01 |
09280-17002-000 |
from US $2.56 |
||
|
10
|
10
01517-06126-000
Bolt m6x1x12
1988-05-01~1990-07-01 |
01517-06126-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
07120-06126-000
Bolt
1988-05-01~1990-07-01 |
07120-06126-000 |
— | ||
| replacement | |||||
|
11
|
11
07120-0612B-000 BOLTPlug 1988-05-01~1990-07-01 |
07120-0612B-000 |
from US $0.96 |
||
|
12
|
12
16910-60A00-000
ゲージ,オイルレベル
1988-05-01~1990-07-01 |
16910-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
16910-60A01-000 GAUGE,OIL LEVEL1988-05-01~1990-07-01 |
16910-60A01-000 |
US $29.60 |
||
|
13
|
13
16930-82001-000 GUIDE,OIL LEVEL GAUGE1988-05-01~1990-07-01 |
16930-82001-000 |
US $14.72 |
||
|
14
|
14
09280-10015-000 O RING(D:1.9,ID:9.8)O ring, oil gallery 1988-05-01~1990-07-01 |
09280-10015-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09280-10016-000 O RING(D:1.9,ID:9.8)O ring 1988-05-01~1990-07-01 |
09280-10016-000 |
from US $1.52 |
||
|
15
|
15
01517-06123-000
Bolt
1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
