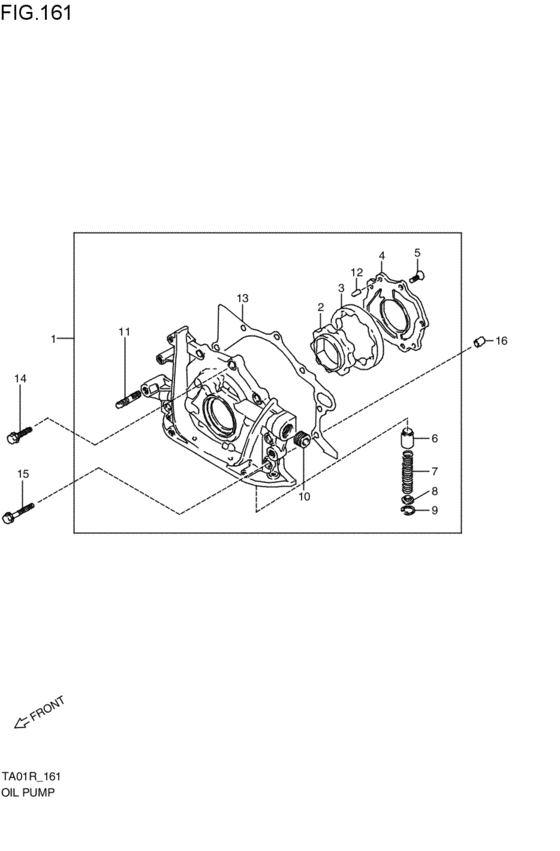

Oil pump (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-60810-000
ポンプアッシ,オイル
1988-05-01~1990-07-01 |
16100-60810-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-60840-000 PUMP SET,OIL1988-05-01~1990-07-01 |
16100-60840-000 |
US $345.60 |
||
|
2
|
2
16131-60A00-000
ギヤ,オイルポンプ,インナ
1988-05-01~1990-07-01 |
16131-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
16130-60A00-000 ROTOR SET,OIL PUMP1988-05-01~1990-07-01 |
16130-60A00-000 |
US $139.20 |
||
|
3
|
3
16132-60A00-000
ギヤ,オイルポンプ,アウタ
1988-05-01~1990-07-01 |
16132-60A00-000 |
— | ||
|
4
|
4
16161-60A00-000
プレート,オイルポンプギヤ
1988-05-01~1990-07-01 |
16161-60A00-000 |
— | ||
|
5
|
5
09126-06007-000 SCREW(6X14)Bolt 1988-05-01~1990-07-01 |
09126-06007-000 |
from US $3.21 |
||
|
6
|
6
16151-60A00-000
バルブ,オイルポンプリリーフ
1988-05-01~1990-07-01 |
16151-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
16150-60A20-000 VALVE SET,OIL PUMP RELIEF1988-05-01~1990-07-01 |
16150-60A20-000 |
US $9.12 |
||
|
7
|
7
16152-60A00-000
スプリング,オイルリリーフ
1988-05-01~1990-07-01 |
16152-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
16150-60A20-000 VALVE SET,OIL PUMP RELIEF1988-05-01~1990-07-01 |
16150-60A20-000 |
US $9.12 |
||
|
8
|
8
09169-05011-000
Washer
1988-05-01~1990-07-01 |
09169-05011-000 |
— | ||
| replacement | |||||
|
8
|
8
09169-05024-000 WASHER1988-05-01~1990-07-01 |
09169-05024-000 |
from US $3.25 |
||
|
9
|
9
08331-41159-000
New Genuine Part
1988-05-01~1990-07-01 |
08331-41159-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-4115A-000 CIRCLIP1988-05-01~1990-07-01 |
08331-4115A-000 |
US $1.60 |
||
|
10
|
10
09246-08002-000 PLUG1988-05-01~1990-07-01 |
09246-08002-000 |
US $1.76 |
||
|
11
|
11
01411-08203-000
Stud 8x20
1988-05-01~1990-07-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01411-0820B-000 BOLT,STUD1988-05-01~1990-07-01 |
01411-0820B-000 |
US $1.12 |
||
|
12
|
12
04221-06129-000 PIN1988-05-01~1990-07-01 |
04221-06129-000 |
from US $0.96 |
||
|
13
|
13
16119-60A00-000
ガスケット,オイルポンプ
1988-05-01~1990-07-01 |
16119-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
16119-60A05-000 GASKET,OIL PUMP1988-05-01~1990-07-01 |
16119-60A05-000 |
US $16.80 |
||
|
14
|
14
01517-06253-000
ボルト
1988-05-01~1990-07-01 |
01517-06253-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0625A-000 BOLTBolt 1988-05-01~1990-07-01 |
01550-0625A-000 |
from US $0.96 |
||
|
14
|
14
01550-0625B-000 BOLTBolt, head cover 1988-05-01~1990-07-01 |
01550-0625B-000 |
from US $0.91 |
||
|
15
|
15
01517-06353-000
ボルト
1988-05-01~1990-07-01 |
01517-06353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0635B-000 Bolt1988-05-01~1990-07-01 |
01550-0635B-000 |
from US $0.91 |
||
|
15
|
15
01550-0635A-000 Bolt1988-05-01~1990-07-01 |
01550-0635A-000 |
from US $0.96 |
||
|
16
|
16
04211-09109-000 PINKnock pin 1988-05-01~1990-07-01 |
04211-09109-000 |
from US $0.96 |
||
