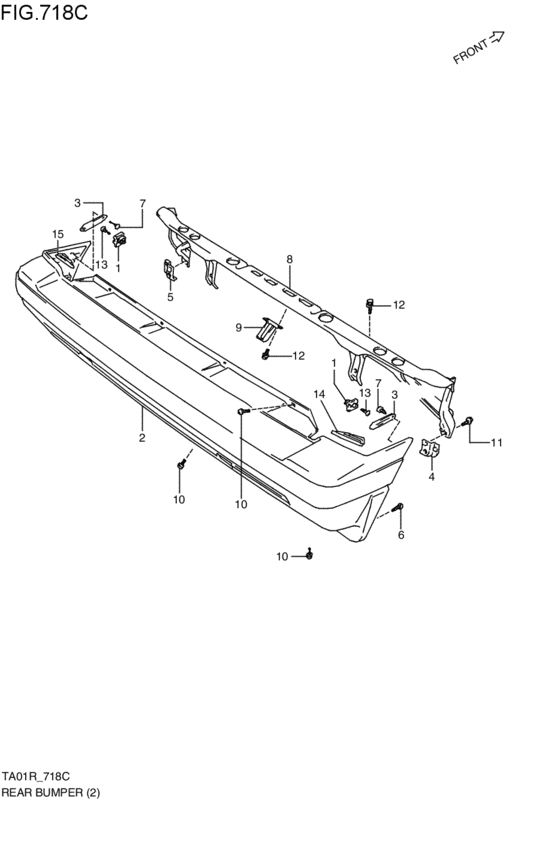

rear bumper (バン; V; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71752-86000-000 SUPPORT,BUMPER SIDEV; 1988-05-01~1990-07-01 |
71752-86000-000 |
US $3.04 |
||
|
2
|
2
71811-60A30-5PK
BAR,RR BUMPER(BLACK)
ブラック; V; 1988-05-01~1990-07-01 |
71811-60A30-5PK |
— | ||
|
3
|
3
71751-86000-000 ATTACHMENT,BUMPER SIDEV; 1988-05-01~1990-07-01 |
71751-86000-000 |
US $3.04 |
||
|
4
|
4
71812-60A10-000 BRACKET,RR BUMPER OUT SIDE,RV; 1988-05-01~1990-07-01 |
71812-60A10-000 |
US $7.25 |
||
|
5
|
5
71813-60A10-000 BRACKET,RR BUMPER OUT SIDE,LV; 1988-05-01~1990-07-01 |
71813-60A10-000 |
US $7.95 |
||
|
6
|
6
09139-06052-000
Screw, plate
V; 1988-05-01~1990-07-01 |
09139-06052-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-66007-000 SCREW(6X14)V; 1988-05-01~1990-07-01 |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
03241-04163-000
Screw
V; 1988-05-01~1990-07-01 |
03241-04163-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0416B-000 SCREWV; 1988-05-01~1990-07-01 |
03242-0416B-000 |
from US $2.72 |
||
|
8
|
8
71820-60A10-000
MEMBER,RR BUMPER
V; 1988-05-01~1990-07-01 |
71820-60A10-000 |
— | ||
|
9
|
9
71854-60A00-000 STAY,RR BUMPER LOWER CTRV; 1988-05-01~1990-07-01 |
71854-60A00-000 |
US $8.83 |
||
|
10
|
10
09139-06052-000
Screw, plate
V; 1988-05-01~1990-07-01 |
09139-06052-000 |
— | ||
| replacement | |||||
|
10
|
10
09122-66007-000 SCREW(6X14)V; 1988-05-01~1990-07-01 |
09122-66007-000 |
from US $0.80 |
||
|
11
|
11
01174-06163-000
ボルト
V; 1988-05-01~1990-07-01 |
01174-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0616A-000 BOLTV; 1988-05-01~1990-07-01 |
01580-0616A-000 |
from US $0.96 |
||
|
12
|
12
01187-08163-000
ボルト
V; 1988-05-01~1990-07-01 |
01187-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0816A-000 BoltV; 1988-05-01~1990-07-01 |
01580-0816A-000 |
from US $0.96 |
||
|
13
|
13
03511-05123-000
スクリュ
V; 1988-05-01~1990-07-01 |
03511-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0512A-000 SCREWV; 1988-05-01~1990-07-01 |
03511-0512A-000 |
from US $0.80 |
||
|
14
|
14
71815-60A01-000 SPACER,REAR BUMPER SIDE,RV; 1988-05-01~1990-07-01 |
71815-60A01-000 |
US $26.40 |
||
|
15
|
15
71816-60A01-000 SPACER,REAR BUMPER SIDE,LV; 1988-05-01~1990-07-01 |
71816-60A01-000 |
US $26.40 |
||
