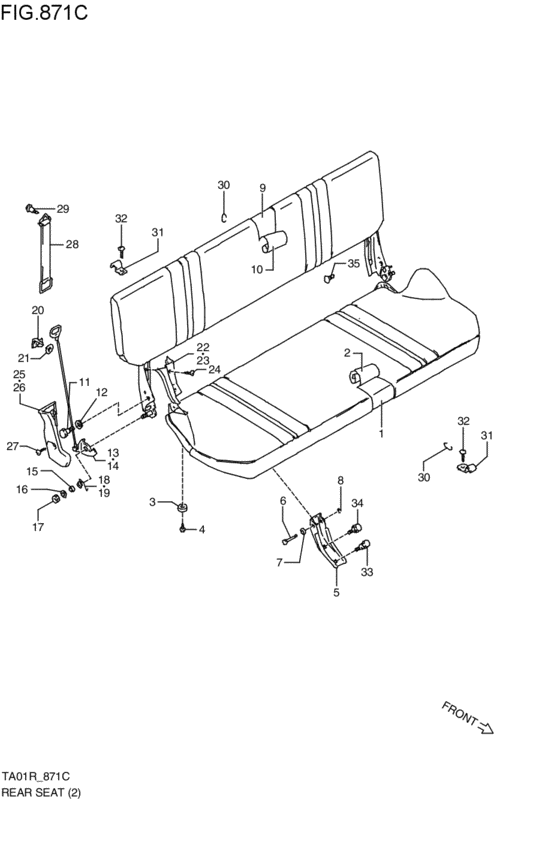

rear seat (バン; V; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-69A00-000
クッションサブアッシ,リヤシート
V; 1988-05-01~1990-07-01 |
87105-69A00-000 |
— | ||
|
2
|
2
87180-69A20-2TE
トリム,リヤシートクッション(ブラック/グレー)
ブラック/グレー; V; 1988-05-01~1990-07-01 |
87180-69A20-2TE |
— | ||
|
3
|
3
09320-06015-000 CUSHIONV; 1988-05-01~1990-07-01 |
09320-06015-000 |
US $1.67 |
||
|
4
|
4
03141-05125-000
Screw, center cover lower
V; 1988-05-01~1990-07-01 |
03141-05125-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct V; 1988-05-01~1990-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
5
|
5
87271-69A00-000
メール,リヤシートヒンジ
V; 1988-05-01~1990-07-01 |
87271-69A00-000 |
— | ||
|
6
|
6
09208-06001-000
ピン
V; 1988-05-01~1990-07-01 |
09208-06001-000 |
— | ||
| replacements | |||||
|
6
|
6
87259-56B10-000 PIN,REAR SEAT HINGEV; 1988-05-01~1990-07-01 |
87259-56B10-000 |
US $1.76 |
||
|
6
|
6
09148-06008-000 NUTNut, adjuster knob V; 1988-05-01~1990-07-01 |
09148-06008-000 |
from US $0.83 |
||
|
6
|
6
87259-83000-000
ピン,リヤシートヒンジ
V; 1988-05-01~1990-07-01 |
87259-83000-000 |
— | ||
|
6
|
6
09148-06005-000
Nut seat moldin
V; 1988-05-01~1990-07-01 |
09148-06005-000 |
— | ||
|
7
|
7
09164-07001-000 WASHERV; 1988-05-01~1990-07-01 |
09164-07001-000 |
US $1.60 |
||
|
8
|
8
08332-11046-000
E ring
V; 1988-05-01~1990-07-01 |
08332-11046-000 |
— | ||
| replacements | |||||
|
8
|
8
08332-1104B-000 E RINGV; 1988-05-01~1990-07-01 |
08332-1104B-000 |
from US $0.80 |
||
|
8
|
8
08332-1104A-000 E RINGV; 1988-05-01~1990-07-01 |
08332-1104A-000 |
from US $0.76 |
||
|
9
|
9
87305-69A00-000
バックサブアッシ,リヤシート
V; 1988-05-01~1990-07-01 |
87305-69A00-000 |
— | ||
|
10
|
10
87380-69A20-2TE
トリム,リヤシートバック(ブラック/グレー)
ブラック/グレー; V; 1988-05-01~1990-07-01 |
87380-69A20-2TE |
— | ||
|
11
|
11
87271-85500-000
ボルト,リヤシートバックピボット
V; 1988-05-01~1990-07-01 |
87271-85500-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-08044-000 BOLT(8X16)V; 1988-05-01~1990-07-01 |
09111-08044-000 |
US $14.40 |
||
|
12
|
12
08321-21107-000 Lock washerV; 1988-05-01~1990-07-01 |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
12
|
12
08321-01107-000 WASHER,LOCKLock washer V; 1988-05-01~1990-07-01 |
08321-01107-000 |
from US $0.76 |
||
|
13
|
13
87210-69A00-000
レバー,シートバックヒンジ,ライト
V; 1988-05-01~1990-07-01 |
87210-69A00-000 |
— | ||
|
14
|
14
87610-69A00-000
レバー,シートバックヒンジ,レフト
V; 1988-05-01~1990-07-01 |
87610-69A00-000 |
— | ||
|
15
|
15
87325-83000-000
COLLAR,HINGE BOLT
V; 1988-05-01~1990-07-01 |
87325-83000-000 |
— | ||
|
16
|
16
08322-21086-000
Washer 8mm
V; 1988-05-01~1990-07-01 |
08322-21086-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0108B-000 WASHERV; 1988-05-01~1990-07-01 |
08322-0108B-000 |
from US $0.80 |
||
|
16
|
16
08322-0108A-000 WASHERV; 1988-05-01~1990-07-01 |
08322-0108A-000 |
from US $0.80 |
||
|
17
|
17
08310-22086-000
Nut
V; 1988-05-01~1990-07-01 |
08310-22086-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUTV; 1988-05-01~1990-07-01 |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper V; 1988-05-01~1990-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
18
|
18
83914-73062-000
SPRING,HINGE,R
V; 1988-05-01~1990-07-01 |
83914-73062-000 |
— | ||
|
19
|
19
83944-73062-000
SPRING,HINGE,L
V; 1988-05-01~1990-07-01 |
83944-73062-000 |
— | ||
|
20
|
20
09403-06403-000 CLAMPV; 1988-05-01~1990-07-01 |
09403-06403-000 |
US $1.60 |
||
|
21
|
21
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMPV; 1988-05-01~1990-07-01 |
87328-83000-000 |
US $1.60 |
||
|
22
|
22
87391-69A00-5PK
カバー,リヤバックヒンジインナ,ライト(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
87391-69A00-5PK |
— | ||
|
23
|
23
87392-69A00-5PK
カバー,リヤバックヒンジインナ,レフト(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
87392-69A00-5PK |
— | ||
|
24
|
24
03141-05085-000
Screw
V; 1988-05-01~1990-07-01 |
03141-05085-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0508A-000 SCREWV; 1988-05-01~1990-07-01 |
03141-0508A-000 |
US $7.70 |
||
|
25
|
25
87229-69A00-5PK
カバー,リヤシートバックヒンジ,ライト(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
87229-69A00-5PK |
— | ||
|
26
|
26
87629-69A00-5PK
カバー,リヤシートバックヒンジ,レフト(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
87629-69A00-5PK |
— | ||
|
27
|
27
03241-05085-000
New Genuine Part
V; 1988-05-01~1990-07-01 |
03241-05085-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0508A-000 SCREWV; 1988-05-01~1990-07-01 |
03241-0508A-000 |
US $0.80 |
||
|
28
|
28
87291-69A00-000
バンド,リヤシートストッパ
V; 1988-05-01~1990-07-01 |
87291-69A00-000 |
— | ||
|
29
|
29
09139-06040-000 SCREW(6X20)V; 1988-05-01~1990-07-01 |
09139-06040-000 |
US $9.60 |
||
|
30
|
30
09387-19001-000 RINGV; 1988-05-01~1990-07-01 |
09387-19001-000 |
US $1.76 |
||
|
31
|
31
87831-80100-000
フック,リヤシートストッパ
V; 1988-05-01~1990-07-01 |
87831-80100-000 |
— | ||
| replacement | |||||
|
31
|
31
87831-80101-000 HOOK,RR SEAT STOPPERV; 1988-05-01~1990-07-01 |
87831-80101-000 |
US $2.39 |
||
|
32
|
32
03242-06129-000
New Genuine Part
V; 1988-05-01~1990-07-01 |
03242-06129-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0612A-000 SCREWV; 1988-05-01~1990-07-01 |
03241-0612A-000 |
US $0.80 |
||
|
33
|
33
87798-69A00-000
ボルト,リヤシートフロント,ロア
V; 1988-05-01~1990-07-01 |
87798-69A00-000 |
— | ||
|
34
|
34
01517-08165-000
Bolt, side
V; 1988-05-01~1990-07-01 |
01517-08165-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0816B-000 BOLTV; 1988-05-01~1990-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
34
|
34
01550-0816A-000 BOLTBolt, rear V; 1988-05-01~1990-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
35
|
35
09250-09001-000
CAP(OD:14)
V; 1988-05-01~1990-07-01 |
09250-09001-000 |
— | ||
| replacement | |||||
|
35
|
35
09250-09008-000 Cap(Od:14)V; 1988-05-01~1990-07-01 |
09250-09008-000 |
from US $2.45 |
||
