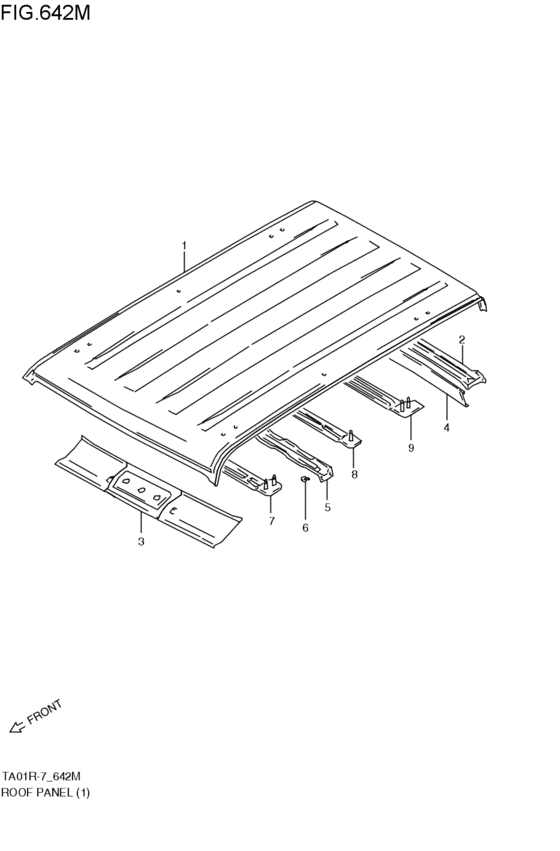

ル - フパネル (W:3DR; 1996-10-01~1997-10-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- G
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-66A00-000
Panel,roof
W:3DR; 1996-10-01~1997-10-01 |
65111-66A00-000 |
— | ||
|
2
|
2
65120-61A00-000
EXT,ROOF RR
W:3DR; 1996-10-01~1997-10-01 |
65120-61A00-000 |
— | ||
|
3
|
3
65130-61A20-000 PANEL,ROOF FRONT INNERW:3DR; 1996-10-01~1997-10-01 |
65130-61A20-000 |
US $52.99 |
||
|
4
|
4
65141-61A00-000 PANEL,ROOF BACK INNERW:3DR; 1996-10-01~1997-10-01 |
65141-61A00-000 |
US $32.94 |
||
|
5
|
5
65981-61A10-000
REINFORCEMENT,ROOF PANEL
W:3DR; 1996-10-01~1997-10-01 |
65981-61A10-000 |
— | ||
|
6
|
6
02142-06103-000
Screw
W:3DR; 1996-10-01~1997-10-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft W:3DR; 1996-10-01~1997-10-01 |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREWW:3DR; 1996-10-01~1997-10-01 |
02142-0610A-000 |
from US $0.80 |
||
|
7
|
7
65161-66A00-000
REINFORCEMENT,ROOF PANEL FR
W:3DR; 1996-10-01~1997-10-01 |
65161-66A00-000 |
— | ||
|
8
|
8
65171-66A00-000
REINFORCEMENT,ROOF PANEL CTR
W:3DR; 1996-10-01~1997-10-01 |
65171-66A00-000 |
— | ||
|
9
|
9
65181-66A00-000
リンフォースメント,ルーフパネル,リヤ
W:3DR; 1996-10-01~1997-10-01 |
65181-66A00-000 |
— | ||
