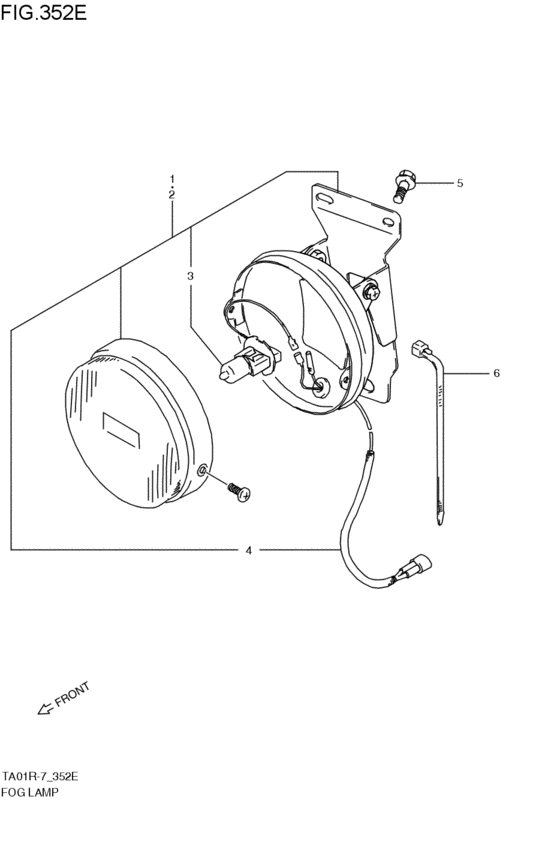

fog light (SA7,SB7; 1997-01-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1997
- Sales region
- Japan
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- SA7
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35501-77E00-000
Lamp assy,fog,r
SA7,SB7; 1997-01-01~1997-08-01 |
35501-77E00-000 |
— | ||
|
2
|
2
35502-77E00-000
LAMP ASSY,FOG,L
SA7,SB7; 1997-01-01~1997-08-01 |
35502-77E00-000 |
— | ||
|
3
|
3
09471-12120-000
BULB(12V35W H3)
SA7,SB7; 1997-01-01~1997-08-01 |
09471-12120-000 |
— | ||
|
4
|
4
35532-77E00-000
コード,フォグランプ
SA7,SB7; 1997-01-01~1997-08-01 |
35532-77E00-000 |
— | ||
|
5
|
5
01550-08203-000
Bolt
SA7,SB7; 1997-01-01~1997-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0820B-000 BoltSA7,SB7; 1997-01-01~1997-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket SA7,SB7; 1997-01-01~1997-08-01 |
01550-0820A-000 |
from US $0.96 |
||
|
6
|
6
09407-19401-000 CLAMP(L:190)SA7,SB7; 1997-01-01~1997-08-01 |
09407-19401-000 |
from US $4.17 |
||
