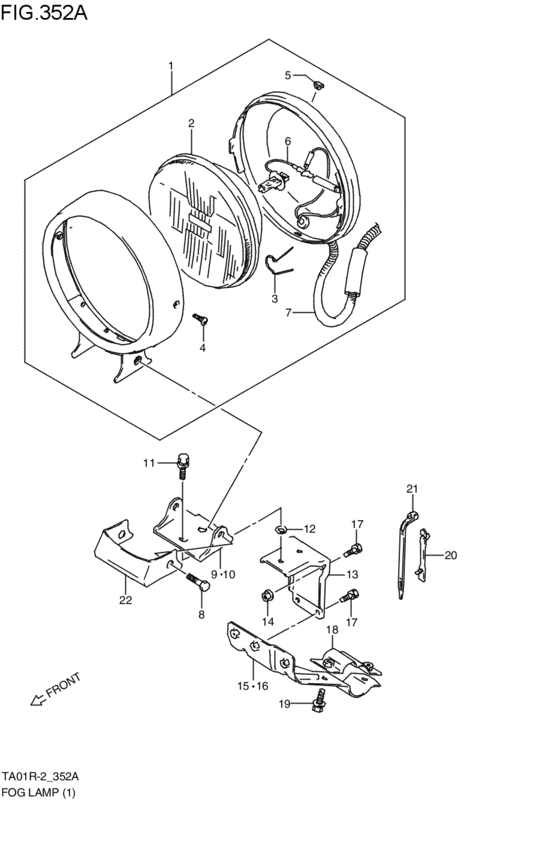

fog light (SC2; 1990-11-01~1991-08-01) Diagram Suzuki ESCUDO
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 2DR
- grade
- SC2
- type
- T2
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-60A10-000
LAMP ASSY,FOG
SC2; 1990-11-01~1991-08-01 |
35500-60A10-000 |
— | ||
|
2
|
2
35514-60A10-000
ランプユニット,フォグ
SC2; 1990-11-01~1991-08-01 |
35514-60A10-000 |
— | ||
|
3
|
3
35545-60A10-000
スプリング,サポート
SC2; 1990-11-01~1991-08-01 |
35545-60A10-000 |
— | ||
|
4
|
4
35546-60A10-000
スクリュ
SC2; 1990-11-01~1991-08-01 |
35546-60A10-000 |
— | ||
|
5
|
5
35522-60A10-000
キャップ,フォグランプ
SC2; 1990-11-01~1991-08-01 |
35522-60A10-000 |
— | ||
|
6
|
6
09471-12106-000 BULB(12V55W,H3)SC2; 1990-11-01~1991-08-01 |
09471-12106-000 |
US $174.80 |
||
| replacement | |||||
|
6
|
6
09471-12106-CDN
Bulb,h3 64151
SC2; 1990-11-01~1991-08-01 |
09471-12106-CDN |
— | ||
|
7
|
7
35532-60A10-000
コード,フォグランプ
SC2; 1991-08-01~1991-08-01 |
35532-60A10-000 |
— | ||
|
8
|
8
01204-08204-000 BoltSC2; 1990-11-01~1991-08-01 |
01204-08204-000 |
US $11.80 |
||
|
9
|
9
35525-57B01-000
ブラケット,フォグランプ,ライト
SC2; 1990-11-01~1991-08-01 |
35525-57B01-000 |
— | ||
|
10
|
10
35565-57B01-000
ブラケット,フォグランプ,レフト
SC2; 1990-11-01~1991-08-01 |
35565-57B01-000 |
— | ||
|
11
|
11
01580-08203-000
Bolt, rear
SC2; 1990-11-01~1991-08-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0820A-000 BoltSC2; 1990-11-01~1991-08-01 |
01580-0820A-000 |
from US $0.91 |
||
|
12
|
12
08212-08145-000
ワッシャ
SC2; 1990-08-01~1991-08-01 |
08212-08145-000 |
— | ||
|
13
|
13
35526-60A00-000
Bracket,bumper member
SC2; 1990-11-01~1991-08-01 |
35526-60A00-000 |
— | ||
|
14
|
14
08316-10063-000
Nut
SC2; 1990-11-01~1991-08-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTSC2; 1990-11-01~1991-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
35527-60A00-000
ブラケット,クロスメンバ,ライト
SC2; 1990-11-01~1991-08-01 |
35527-60A00-000 |
— | ||
|
16
|
16
35567-60A00-000
ブラケット,クロスメンバ,レフト
SC2; 1990-11-01~1991-08-01 |
35567-60A00-000 |
— | ||
|
17
|
17
01570-06163-000
Bolt
SC2; 1990-11-01~1991-08-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0616B-000 BoltSC2; 1990-11-01~1991-08-01 |
01570-0616B-000 |
from US $0.80 |
||
|
17
|
17
01570-0616A-000 BoltSC2; 1990-11-01~1991-08-01 |
01570-0616A-000 |
from US $0.80 |
||
|
18
|
18
35531-60A00-000
ブラケット,クロスメンバ,アッパ
SC2; 1990-11-01~1991-08-01 |
35531-60A00-000 |
— | ||
|
19
|
19
01580-08203-000
Bolt, rear
SC2; 1990-11-01~1991-08-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0820A-000 BoltSC2; 1990-11-01~1991-08-01 |
01580-0820A-000 |
from US $0.91 |
||
|
20
|
20
09407-05403-000 CLAMP,L:88SC2; 1990-11-01~1991-08-01 |
09407-05403-000 |
from US $0.91 |
||
|
21
|
21
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap SC2; 1990-11-01~1991-08-01 |
09407-14403-000 |
from US $2.08 |
||
|
22
|
22
35544-60A20-000
カバー,フォグランプブラケット
SC2; 1990-11-01~1991-08-01 |
35544-60A20-000 |
— | ||
