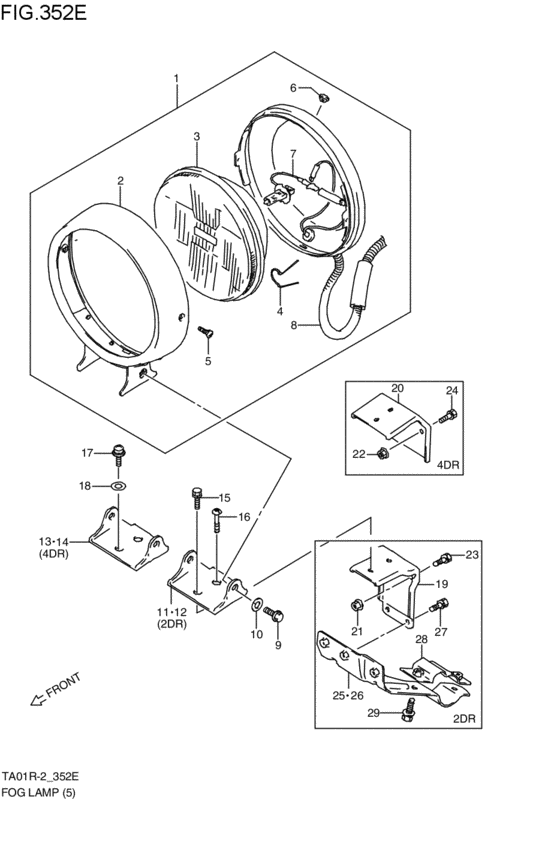

fog light (SC4; 1993-10-01~1994-08-01) Diagram Suzuki ESCUDO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 2DR
- grade
- SC4
- type
- T4
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-60A30-000
LAMP ASSY,FOG
SC4; 1993-10-01~1994-08-01 |
35500-60A30-000 |
— | ||
|
2
|
2
35541-60A00-000
リム,フォグランプ
SC4; 1993-10-01~1994-08-01 |
35541-60A00-000 |
— | ||
|
3
|
3
35514-60A00-000
LAMP UNIT,FOG
SC4; 1993-10-01~1994-08-01 |
35514-60A00-000 |
— | ||
|
4
|
4
35545-60A00-000
スプリング,サポート
SC4; 1993-10-01~1994-08-01 |
35545-60A00-000 |
— | ||
|
5
|
5
35546-60A00-000
スクリュ
SC4; 1993-10-01~1994-08-01 |
35546-60A00-000 |
— | ||
|
6
|
6
35522-60A10-000
キャップ,フォグランプ
SC4; 1993-10-01~1994-08-01 |
35522-60A10-000 |
— | ||
|
7
|
7
35512-60A00-000
バルブ/ホルダ,12V,55W H2
SC4; 1993-10-01~1994-08-01 |
35512-60A00-000 |
— | ||
|
8
|
8
35532-60A30-000
コード,フォグランプ
SC4; 1993-10-01~1994-08-01 |
35532-60A30-000 |
— | ||
|
9
|
9
01550-08203-000
Bolt
SC4; 1993-10-01~1994-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0820B-000 BoltSC4; 1993-10-01~1994-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
9
|
9
01550-0820A-000 BOLTBolt, funnel bracket SC4; 1993-10-01~1994-08-01 |
01550-0820A-000 |
from US $0.96 |
||
|
10
|
10
08321-01083-000
Lock washer
SC4; 1993-10-01~1994-08-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCKSC4; 1993-10-01~1994-08-01 |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCKSC4; 1993-10-01~1994-08-01 |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
35525-70E00-000
ブラケット,フォグランプ,ライト
SC4:2DR; 1993-10-01~1994-08-01 |
35525-70E00-000 |
— | ||
|
12
|
12
35565-70E00-000
ブラケット,フォグランプ,レフト
SC4:2DR; 1993-10-01~1994-08-01 |
35565-70E00-000 |
— | ||
|
15
|
15
01570-10203-000
ボルト
SC4:2DR; 1993-10-01~1994-08-01 |
01570-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-1020A-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01570-1020A-000 |
US $0.96 |
||
|
16
|
16
02112-05203-000
Screw
SC4:2DR; 1993-10-01~1994-08-01 |
02112-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0520B-000 SCREWSC4:2DR; 1993-10-01~1994-08-01 |
02112-0520B-000 |
from US $0.77 |
||
|
19
|
19
35526-70E00-000
ブラケット,バンパメンバ
SC4:2DR; 1993-10-01~1994-08-01 |
35526-70E00-000 |
— | ||
|
21
|
21
08316-10083-000
Nut
SC4:2DR; 1993-10-01~1994-08-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUTSC4:2DR; 1993-10-01~1994-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
23
|
23
01570-06163-000
Bolt
SC4:2DR; 1993-10-01~1994-08-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01570-0616B-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01570-0616B-000 |
from US $0.80 |
||
|
23
|
23
01570-0616A-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01570-0616A-000 |
from US $0.80 |
||
|
25
|
25
35527-60A00-000
ブラケット,クロスメンバ,ライト
SC4:2DR; 1993-10-01~1994-08-01 |
35527-60A00-000 |
— | ||
|
26
|
26
35567-60A00-000
ブラケット,クロスメンバ,レフト
SC4:2DR; 1993-10-01~1994-08-01 |
35567-60A00-000 |
— | ||
|
27
|
27
01570-06163-000
Bolt
SC4:2DR; 1993-10-01~1994-08-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
27
|
27
01570-0616B-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01570-0616B-000 |
from US $0.80 |
||
|
27
|
27
01570-0616A-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01570-0616A-000 |
from US $0.80 |
||
|
28
|
28
35531-60A00-000
ブラケット,クロスメンバ,アッパ
SC4:2DR; 1993-10-01~1994-08-01 |
35531-60A00-000 |
— | ||
|
29
|
29
01580-08203-000
Bolt, rear
SC4:2DR; 1993-10-01~1994-08-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
29
|
29
01580-0820A-000 BoltSC4:2DR; 1993-10-01~1994-08-01 |
01580-0820A-000 |
from US $0.91 |
||
