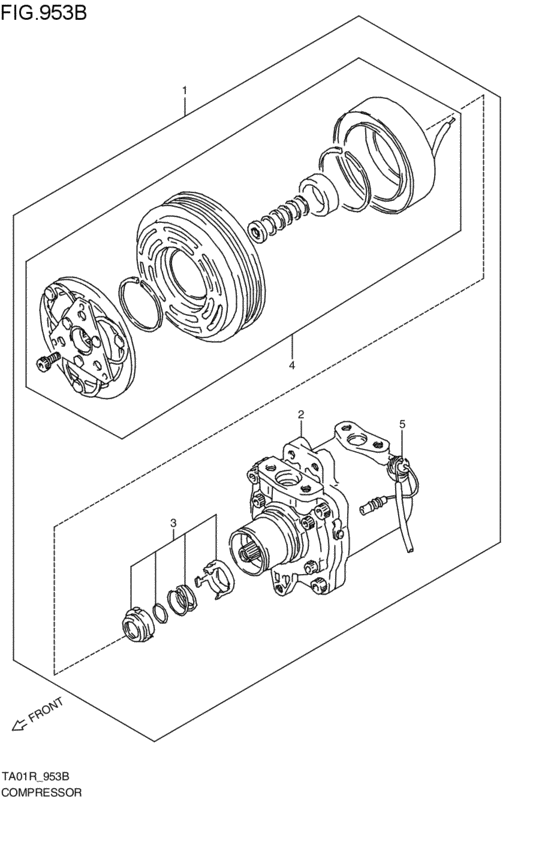

compressor (ヘリーハンセン2,ゴールドウィン,Gリミテッド2; W:(SC,SD,SE); 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- body
- H
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-60A02-000
COMPRESSOR&MAGNET CLUTCH
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95200-60A02-000 |
— | ||
|
2
|
2
95230-60A02-000
コンプレッサ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95230-60A02-000 |
— | ||
|
3
|
3
95219-78141-000
Seal,lip type
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95219-78141-000 |
— | ||
|
4
|
4
95210-60A01-000
CLUTCH,MAGNET
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95210-60A01-000 |
— | ||
|
5
|
5
95527-60A00-000
PROTECTOR,THERMAL
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95527-60A00-000 |
— |
