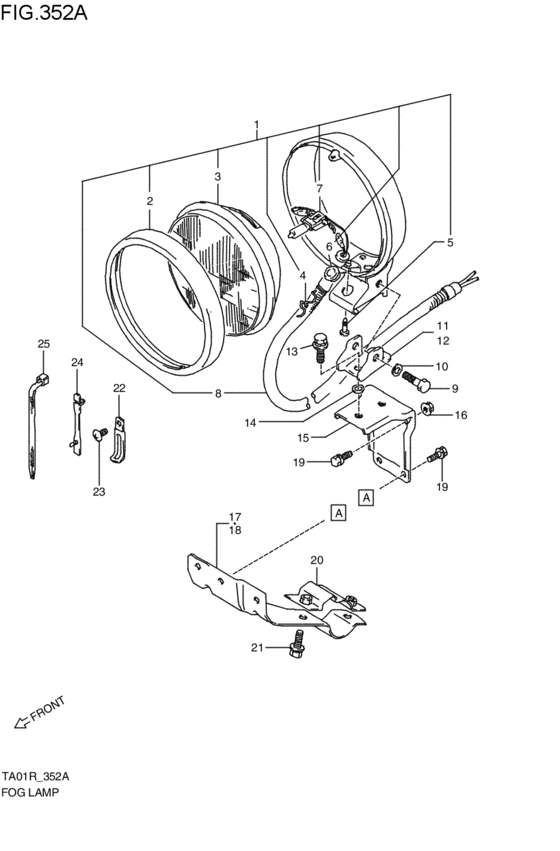

fog light (ゴールドウィン; W:SC; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-60A00-000
Lamp assy,fog
W:SC; 1988-05-01~1990-07-01 |
35500-60A00-000 |
— | ||
|
2
|
2
35541-60A00-000
リム,フォグランプ
W:SC; 1988-05-01~1990-07-01 |
35541-60A00-000 |
— | ||
|
3
|
3
35514-60A00-000
LAMP UNIT,FOG
W:SC; 1988-05-01~1990-07-01 |
35514-60A00-000 |
— | ||
|
4
|
4
35545-60A00-000
スプリング,サポート
W:SC; 1988-05-01~1990-07-01 |
35545-60A00-000 |
— | ||
|
5
|
5
35546-60A00-000
スクリュ
W:SC; 1988-05-01~1990-07-01 |
35546-60A00-000 |
— | ||
|
6
|
6
35544-60A00-000
キャップ
W:SC; 1988-05-01~1990-07-01 |
35544-60A00-000 |
— | ||
|
7
|
7
35512-60A00-000
バルブ/ホルダ,12V,55W H2
W:SC; 1988-05-01~1990-07-01 |
35512-60A00-000 |
— | ||
|
8
|
8
35532-60A00-000
コード,フォグランプ
W:SC; 1988-05-01~1990-07-01 |
35532-60A00-000 |
— | ||
|
9
|
9
01204-08204-000 BoltW:SC; 1988-05-01~1990-07-01 |
01204-08204-000 |
US $11.80 |
||
|
10
|
10
08321-21084-000
Lock washer
W:SC; 1988-05-01~1990-07-01 |
08321-21084-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCKW:SC; 1988-05-01~1990-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCKW:SC; 1988-05-01~1990-07-01 |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
35525-60A00-000
ブラケット,フォグランプ,ライト
W:SC; 1988-05-01~1990-07-01 |
35525-60A00-000 |
— | ||
|
12
|
12
35565-60A00-000
ブラケット,フォグランプ,レフト
W:SC; 1988-05-01~1990-07-01 |
35565-60A00-000 |
— | ||
|
13
|
13
01187-08203-000
ボルト
W:SC; 1988-05-01~1990-07-01 |
01187-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0820A-000 BoltW:SC; 1988-05-01~1990-07-01 |
01580-0820A-000 |
from US $0.91 |
||
|
14
|
14
08212-08145-000
ワッシャ
W:SC; 1988-05-01~1990-07-01 |
08212-08145-000 |
— | ||
|
15
|
15
35526-60A00-000
Bracket,bumper member
W:SC; 1988-05-01~1990-07-01 |
35526-60A00-000 |
— | ||
|
16
|
16
08316-26063-000
Nut
W:SC; 1988-05-01~1990-07-01 |
08316-26063-000 |
— | ||
| replacements | |||||
|
16
|
16
08316-2006A-000 NUTW:SC; 1988-05-01~1990-07-01 |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
08316-1006B-000 NUTW:SC; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
35527-60A00-000
ブラケット,クロスメンバ,ライト
W:SC; 1988-05-01~1990-07-01 |
35527-60A00-000 |
— | ||
|
18
|
18
35567-60A00-000
ブラケット,クロスメンバ,レフト
W:SC; 1988-05-01~1990-07-01 |
35567-60A00-000 |
— | ||
|
19
|
19
01137-06163-000
ボルト
W:SC; 1988-05-01~1990-07-01 |
01137-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01570-0616B-000 BoltW:SC; 1988-05-01~1990-07-01 |
01570-0616B-000 |
from US $0.80 |
||
|
19
|
19
01570-0616A-000 BoltW:SC; 1988-05-01~1990-07-01 |
01570-0616A-000 |
from US $0.80 |
||
|
20
|
20
35531-60A00-000
ブラケット,クロスメンバ,アッパ
W:SC; 1988-05-01~1990-07-01 |
35531-60A00-000 |
— | ||
|
21
|
21
01187-08203-000
ボルト
W:SC; 1988-05-01~1990-07-01 |
01187-08203-000 |
— | ||
| replacement | |||||
|
21
|
21
01580-0820A-000 BoltW:SC; 1988-05-01~1990-07-01 |
01580-0820A-000 |
from US $0.91 |
||
|
22
|
22
09404-06201-000
Clamp
W:SC; 1988-05-01~1990-07-01 |
09404-06201-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06432-000
CLAMP(L:65)
W:SC; 1988-05-01~1990-07-01 |
09404-06432-000 |
— | ||
|
22
|
22
09404-06206-000
CLAMP(L:45)
W:SC; 1988-05-01~1990-07-01 |
09404-06206-000 |
— | ||
|
22
|
22
09404-06039-000 Clamp(L:65)W:SC; 1988-05-01~1990-07-01 |
09404-06039-000 |
from US $1.82 |
||
|
22
|
22
09404-06031-000 Clamp,rsvr Tank Ovfl HoseW:SC; 1988-05-01~1990-07-01 |
09404-06031-000 |
from US $1.37 |
||
|
23
|
23
02142-06123-000
Screw
W:SC; 1988-05-01~1990-07-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0612B-000 SCREWW:SC; 1988-05-01~1990-07-01 |
02142-0612B-000 |
from US $0.76 |
||
|
23
|
23
02142-0612A-000 SCREWW:SC; 1988-05-01~1990-07-01 |
02142-0612A-000 |
from US $0.80 |
||
|
24
|
24
09407-05403-000 CLAMP,L:88W:SC; 1988-05-01~1990-07-01 |
09407-05403-000 |
from US $0.91 |
||
|
25
|
25
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap W:SC; 1988-05-01~1990-07-01 |
09407-14403-000 |
from US $2.08 |
||
