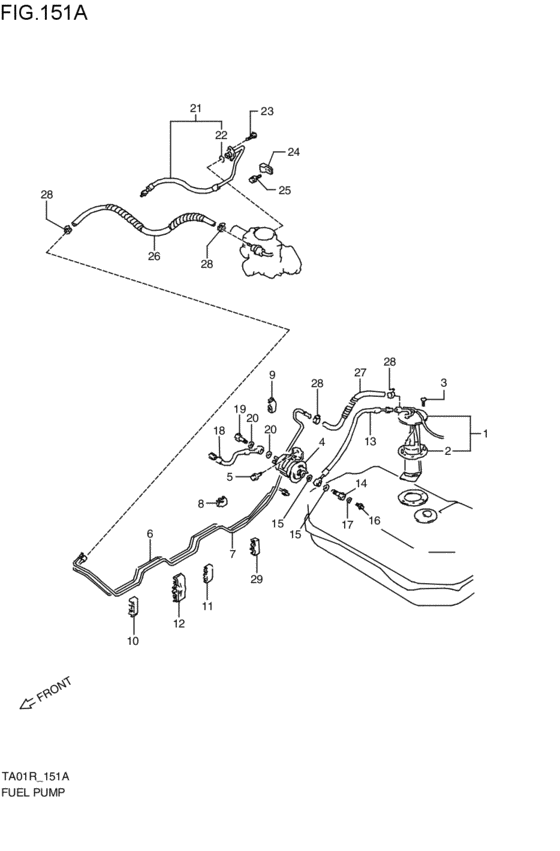

Fuel Pump (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-61A00-000
ポンプアッシ,フューエル
1988-05-01~1990-07-01 |
15100-61A00-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-61A1V-000 PUMP ASSY,FUEL1988-05-01~1990-07-01 |
15100-61A1V-000 |
US $1,616 |
||
|
2
|
2
15111-61A00-000 GASKET,FUEL PUMP1988-05-01~1990-07-01 |
15111-61A00-000 |
US $28.52 |
||
|
3
|
3
09136-05045-000 SCREW(5X10)1988-05-01~1990-07-01 |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15410-61A00-000 FILTER,FUEL1988-05-01~1990-07-01 |
15410-61A00-000 |
from US $33.71 |
||
|
5
|
5
01517-06123-000
Bolt
1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLT1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
15820-61A20-000
パイプ,フューエル
1988-05-01~1990-03-01 |
15820-61A20-000 |
— | ||
|
6
|
6
15820-61A21-000
パイプ,フューエル
1990-03-01~1990-07-01 |
15820-61A21-000 |
— | ||
| replacement | |||||
|
6
|
6
15820-61A22-000 PIPE,FUEL FILTER OUTLET1990-03-01~1990-07-01 |
15820-61A22-000 |
US $73.97 |
||
|
7
|
7
15861-60A20-000 PIPE,FUEL RTN1988-05-01~1990-07-01 |
15861-60A20-000 |
US $58.14 |
||
|
8
|
8
15891-60A00-000
クランプ,フューエルパイプ
1988-05-01~1990-07-01 |
15891-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
15893-67B00-000 CLAMP,FUEL PIPE1988-05-01~1990-07-01 |
15893-67B00-000 |
US $1.76 |
||
|
9
|
9
15892-60A00-000
クランプ,フューエルパイプ
1988-05-01~1990-07-01 |
15892-60A00-000 |
— | ||
| replacement | |||||
|
9
|
9
15892-60A11-000 CLAMP,FUEL PIPE1988-05-01~1990-07-01 |
15892-60A11-000 |
US $1.60 |
||
|
10
|
10
15893-60A00-000
クランプ,フューエルパイプ
1988-05-01~1990-07-01 |
15893-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
15893-60A11-000 CLAMP,FUEL PIPE1988-05-01~1990-07-01 |
15893-60A11-000 |
US $2.24 |
||
|
11
|
11
15895-60A00-000
クランプ,フューエルパイプ
1988-05-01~1990-07-01 |
15895-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
15895-60A11-000 CLAMP,FUEL PIPE1988-05-01~1990-07-01 |
15895-60A11-000 |
US $2.56 |
||
|
12
|
12
15896-60A00-000
CLAMP,FUEL PIPE
1988-05-01~1990-07-01 |
15896-60A00-000 |
— | ||
|
13
|
13
15810-61A01-000 HOSE,FUEL FILTER INLET1988-05-01~1990-07-01 |
15810-61A01-000 |
US $224 |
||
|
14
|
14
13923-85551-000 BOLT,UNION FUEL FILTERBolt 1988-05-01~1990-07-01 |
13923-85551-000 |
US $15.52 |
||
|
15
|
15
13925-85553-000 GASKET,UNION BOLTGasket 1988-05-01~1990-07-01 |
13925-85553-000 |
from US $1.60 |
||
|
16
|
16
13924-85550-000
プラグ,ユニオンボルト
1988-05-01~1990-07-01 |
13924-85550-000 |
— | ||
| replacement | |||||
|
16
|
16
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover 1988-05-01~1990-07-01 |
17568-50F00-000 |
from US $2.08 |
||
|
17
|
17
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) 1988-05-01~1990-07-01 |
09168-06023-000 |
from US $1.51 |
||
|
18
|
18
15840-61A00-000
ホース,フューエルフィルタ,アウトレット
1988-05-01~1990-03-01 |
15840-61A00-000 |
— | ||
| replacement | |||||
|
18
|
18
15840-61A01-000 HOSE,FUEL FILTER OUTLET1988-05-01~1990-03-01 |
15840-61A01-000 |
US $209.60 |
||
|
18
|
18
15840-61A01-000 HOSE,FUEL FILTER OUTLET1990-03-01~1990-07-01 |
15840-61A01-000 |
US $209.60 |
||
|
19
|
19
13921-85552-000
ボルト,ユニオンフューエルフィルタ
1988-05-01~1990-07-01 |
13921-85552-000 |
— | ||
| replacement | |||||
|
19
|
19
09360-12008-000 UNION1988-05-01~1990-07-01 |
09360-12008-000 |
from US $5.60 |
||
|
20
|
20
13925-85553-000 GASKET,UNION BOLTGasket 1988-05-01~1990-07-01 |
13925-85553-000 |
from US $1.60 |
||
|
21
|
21
15830-61A00-000 HOSE,FUEL PIPE TO ENG1988-05-01~1990-07-01 |
15830-61A00-000 |
US $231.04 |
||
|
22
|
22
15710-09300-000 O-RINGDENSO; 1988-05-01~1990-07-01 |
15710-09300-000 |
from US $1.60 |
||
|
23
|
23
01137-06163-000
ボルト
1988-05-01~1990-07-01 |
01137-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01570-0616B-000 Bolt1988-05-01~1990-07-01 |
01570-0616B-000 |
from US $0.80 |
||
|
23
|
23
01570-0616A-000 Bolt1988-05-01~1990-07-01 |
01570-0616A-000 |
from US $0.80 |
||
|
24
|
24
09403-08404-000
CLAMP
1988-05-01~1990-07-01 |
09403-08404-000 |
— | ||
| replacement | |||||
|
24
|
24
09403-08417-000 Clamp,rsvr Hose1988-05-01~1990-07-01 |
09403-08417-000 |
from US $3.91 |
||
|
25
|
25
01517-06123-000
Bolt
1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLT1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE1988-05-01~1989-01-01 |
15870-61A00-000 |
US $38.40 |
||
|
26
|
26
15870-61A10-000
ホース,フューエルリターン
1989-01-01~1990-07-01 |
15870-61A10-000 |
— | ||
| replacement | |||||
|
26
|
26
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE1989-01-01~1990-07-01 |
15870-61A00-000 |
US $38.40 |
||
|
27
|
27
15864-61A00-000
ホース,リターン
1988-05-01~1990-07-01 |
15864-61A00-000 |
— | ||
| replacement | |||||
|
27
|
27
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) 1988-05-01~1990-07-01 |
09356-58127-600 |
from US $15.84 |
||
|
28
|
28
09402-15501-000
Clamp
1988-05-01~1990-07-01 |
09402-15501-000 |
— | ||
| replacement | |||||
|
28
|
28
09402-17511-000 CLAMP1988-05-01~1990-07-01 |
09402-17511-000 |
US $52.60 |
||
|
29
|
29
15897-60A00-000
CLAMP,FUEL PIPE
1989-06-01~1990-07-01 |
15897-60A00-000 |
— | ||
