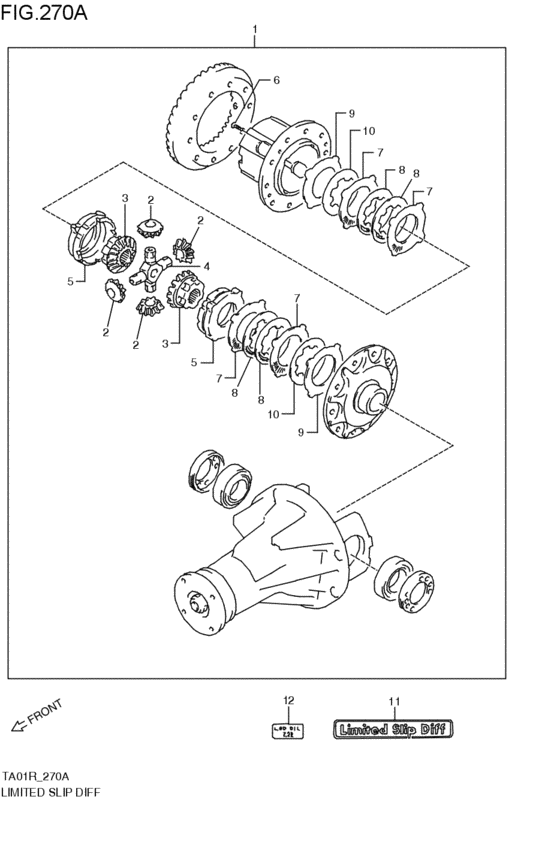

リミテッドスリップデフ (ゴールドウィン; W:SC; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27400-60A40-000
リミテツドスリップデフ アッシ
W:SC; 1988-05-01~1990-07-01 |
27400-60A40-000 |
— | ||
|
2
|
2
27331-60A40-000
ピニオン,ディファレンシャル
W:SC; 1988-05-01~1990-07-01 |
27331-60A40-000 |
— | ||
|
3
|
3
27341-60A40-000
ギヤ,ディファレンシャルサイド
W:SC; 1988-05-01~1990-07-01 |
27341-60A40-000 |
— | ||
|
4
|
4
27351-60A40-000
スパイダ,ディファレンシャルピニオン
W:SC; 1988-05-01~1990-07-01 |
27351-60A40-000 |
— | ||
|
5
|
5
27357-60A40-000
リング,クラッチプレッシャ
W:SC; 1988-05-01~1990-07-01 |
27357-60A40-000 |
— | ||
|
6
|
6
27429-60A40-000
スクリュ,LSDケース
W:SC; 1988-05-01~1990-07-01 |
27429-60A40-000 |
— | ||
| replacements | |||||
|
6
|
6
02122-0612B-000 SCREWW:SC; 1988-05-01~1990-07-01 |
02122-0612B-000 |
from US $0.80 |
||
|
6
|
6
02122-0612A-000 SCREWW:SC; 1988-05-01~1990-07-01 |
02122-0612A-000 |
from US $0.80 |
||
|
6
|
6
02122-06123-000
Screw
W:SC; 1988-05-01~1990-07-01 |
02122-06123-000 |
— | ||
|
7
|
7
27433-60A40-170
PLATE,LSD FRICTION T1.7
W:SC; 1988-05-01~1990-07-01 |
27433-60A40-170 |
— | ||
|
7
|
7
27433-60A40-180
PLATE,LSD FRICTION T1.8
W:SC; 1988-05-01~1990-07-01 |
27433-60A40-180 |
— | ||
|
8
|
8
27432-60A40-170
Disk,lsd friction t1.7
W:SC; 1988-05-01~1990-07-01 |
27432-60A40-170 |
— | ||
|
8
|
8
27432-60A40-180
DISC,LSD FRICTION T1.8
W:SC; 1988-05-01~1990-07-01 |
27432-60A40-180 |
— | ||
|
9
|
9
27434-60A40-000
PLATE,LSD SPRING
W:SC; 1988-05-01~1990-07-01 |
27434-60A40-000 |
— | ||
|
10
|
10
27435-60A40-000 DISC,LSD SPRINGW:SC; 1988-05-01~1990-07-01 |
27435-60A40-000 |
US $48.21 |
||
|
11
|
11
27911-79400-000
EMBLEM,LINITED SLIP DIFF
W:SC; 1988-05-01~1990-07-01 |
27911-79400-000 |
— | ||
|
12
|
12
27912-60A00-000
Emblem,lsd oil capacity
W:SC; 1988-05-01~1990-07-01 |
27912-60A00-000 |
— | ||
