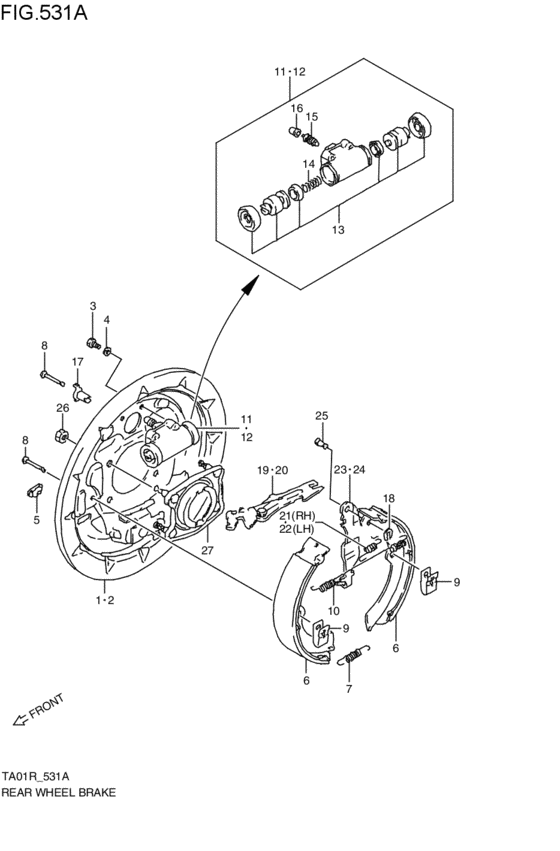

rear wheel brakes (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-60A00-000 PLATE,BACKING,R1988-05-01~1990-07-01 |
53110-60A00-000 |
US $447.04 |
||
|
2
|
2
53120-60A00-000
PLATE,BACKING,L
1988-05-01~1990-07-01 |
53120-60A00-000 |
— | ||
|
3
|
3
01107-06123-000
Bolt 6x1x16
1988-05-01~1990-07-01 |
01107-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01500-0612A-000 BOLT1988-05-01~1990-07-01 |
01500-0612A-000 |
from US $0.76 |
||
|
3
|
3
01500-06123-000
Bolt, front
1988-05-01~1990-07-01 |
01500-06123-000 |
— | ||
|
4
|
4
08321-31063-000 Lock washer1988-05-01~1990-07-01 |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK1988-05-01~1990-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
53121-80050-000 PLUG,ADJUSTER1988-05-01~1990-07-01 |
53121-80050-000 |
US $2.13 |
||
|
6
|
6
53210-60A20-000
シュー,ブレーキ
1988-05-01~1990-07-01 |
53210-60A20-000 |
— | ||
| replacement | |||||
|
6
|
6
53200-60813-000 SHOE SET,BRAKE1988-05-01~1990-07-01 |
53200-60813-000 |
US $104.51 |
||
|
7
|
7
53231-83041-000 SPRING,SHOE RETURN B1988-05-01~1990-07-01 |
53231-83041-000 |
US $2.72 |
||
|
8
|
8
52241-85400-000
ピン,シューホールドダウン
1988-05-01~1990-07-01 |
52241-85400-000 |
— | ||
| replacement | |||||
|
8
|
8
52241-73040-000 PIN,SHOE HOLD DOWN1988-05-01~1990-07-01 |
52241-73040-000 |
from US $1.92 |
||
|
9
|
9
53243-60A00-000 SPRING,SHOE HOLD DOWN1988-05-01~1990-07-01 |
53243-60A00-000 |
US $1.92 |
||
|
10
|
10
53331-60A00-000 SPRING,SHOE RETURN UPPER1988-05-01~1990-07-01 |
53331-60A00-000 |
US $3.04 |
||
|
11
|
11
53401-60A00-000
CYLINDER ASSY,REAR WHEEL,R
1988-05-01~1990-07-01 |
53401-60A00-000 |
— | ||
|
12
|
12
53402-60A00-000
CYLINDER ASSY,REAR WHEEL,L
1988-05-01~1990-07-01 |
53402-60A00-000 |
— | ||
|
13
|
13
53400-60811-000 BOOT&CUP SET,RR WHEEL1988-05-01~1990-07-01 |
53400-60811-000 |
US $17 |
||
|
14
|
14
53441-80050-000 SPRING,WHEEL CYLINDER1988-05-01~1990-07-01 |
53441-80050-000 |
US $1.91 |
||
|
15
|
15
52473-83040-000
プラグ,ブリーダ
1988-05-01~1990-07-01 |
52473-83040-000 |
— | ||
| replacement | |||||
|
15
|
15
55151-78451-000 PLUG,BLEEDER1988-05-01~1990-07-01 |
55151-78451-000 |
from US $3.94 |
||
|
16
|
16
52474-85200-000
キャップ,ブリーダプラグ
1988-05-01~1990-07-01 |
52474-85200-000 |
— | ||
| replacements | |||||
|
16
|
16
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 1988-05-01~1990-07-01 |
55156-66310-000 |
from US $1.98 |
||
|
16
|
16
59122-18410-000
Cap, bleeder plug
1988-05-01~1990-07-01 |
59122-18410-000 |
— | ||
|
17
|
17
53741-60A00-000
LEVER,STOPPER
1988-05-01~1990-07-01 |
53741-60A00-000 |
— | ||
|
18
|
18
53751-85200-000 CLIP,PARKING BRAKE LEVER1988-05-01~1990-07-01 |
53751-85200-000 |
US $1.92 |
||
|
19
|
19
53810-60A00-000 ROD,PARKING BRAKE,R1988-05-01~1990-07-01 |
53810-60A00-000 |
US $58.40 |
||
|
20
|
20
53860-60A00-000 ROD,PARKING BRAKE,L1988-05-01~1990-07-01 |
53860-60A00-000 |
US $58.40 |
||
|
21
|
21
53821-60A00-000 SPRING,ROD,R1988-05-01~1990-07-01 |
53821-60A00-000 |
US $2.24 |
||
|
22
|
22
53822-60A00-000 SPRING,ROD,L1988-05-01~1990-07-01 |
53822-60A00-000 |
US $2.24 |
||
|
23
|
23
53721-60A00-000
LEVER,PARKING SHOE,R
1988-05-01~1990-07-01 |
53721-60A00-000 |
— | ||
|
24
|
24
53726-60A00-000
LEVER,PARKING SHOE,L
1988-05-01~1990-07-01 |
53726-60A00-000 |
— | ||
|
25
|
25
53731-85200-000 PIN,PARKING BRAKE LEVER1988-05-01~1990-07-01 |
53731-85200-000 |
US $1.92 |
||
|
26
|
26
08310-11083-000
ナット
1988-05-01~1990-07-01 |
08310-11083-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0008A-000 NUTNut, bead stopper 1988-05-01~1990-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
26
|
26
08310-0008B-000 NUT1988-05-01~1990-07-01 |
08310-0008B-000 |
from US $0.80 |
||
|
27
|
27
53820-60A00-000 RETAINER,RR WHL BRG OUTER1988-05-01~1990-07-01 |
53820-60A00-000 |
US $70.40 |
||
