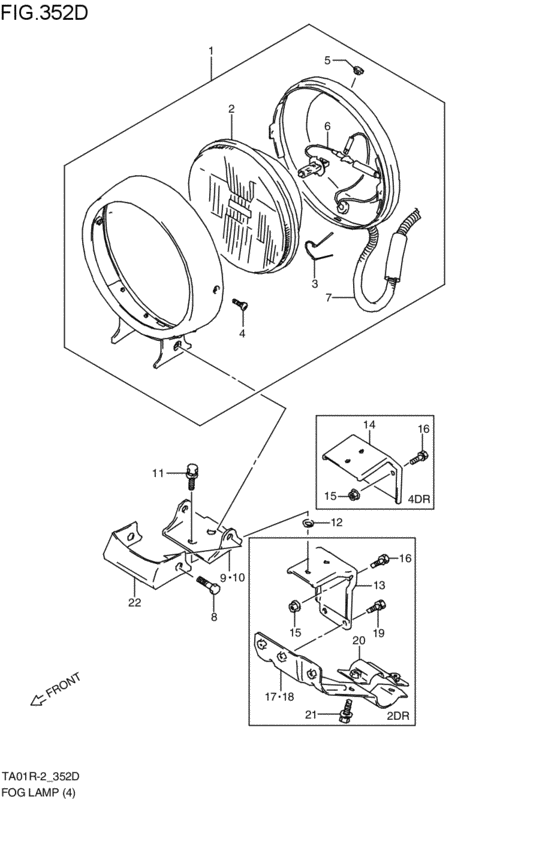

fog light (SF3; 1992-09-01~1993-09-01) Diagram Suzuki ESCUDO
- Year
- 1992 - 1993
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 2DR
- grade
- SF3
- type
- T3
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-60A20-000
LAMP ASSY,FOG
SF3; 1992-09-01~1993-09-01 |
35500-60A20-000 |
— | ||
|
2
|
2
35514-60A10-000
ランプユニット,フォグ
SF3; 1992-09-01~1993-09-01 |
35514-60A10-000 |
— | ||
|
3
|
3
35545-60A10-000
スプリング,サポート
SF3; 1992-09-01~1993-09-01 |
35545-60A10-000 |
— | ||
|
4
|
4
35546-60A10-000
スクリュ
SF3; 1992-09-01~1993-09-01 |
35546-60A10-000 |
— | ||
|
5
|
5
35522-60A10-000
キャップ,フォグランプ
SF3; 1992-09-01~1993-09-01 |
35522-60A10-000 |
— | ||
|
6
|
6
09471-12106-000 BULB(12V55W,H3)SF3; 1992-09-01~1993-09-01 |
09471-12106-000 |
US $174.80 |
||
| replacement | |||||
|
6
|
6
09471-12106-CDN
Bulb,h3 64151
SF3; 1992-09-01~1993-09-01 |
09471-12106-CDN |
— | ||
|
7
|
7
35532-60A20-000
コード,フォグランプ
SF3; 1992-09-01~1993-09-01 |
35532-60A20-000 |
— | ||
|
8
|
8
01500-08203-000
Bolt
SF3; 1992-09-01~1993-09-01 |
01500-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0820A-000 BoltSF3; 1992-09-01~1993-09-01 |
01500-0820A-000 |
from US $0.80 |
||
|
9
|
9
35525-57B01-000
ブラケット,フォグランプ,ライト
SF3; 1992-09-01~1993-09-01 |
35525-57B01-000 |
— | ||
|
10
|
10
35565-57B01-000
ブラケット,フォグランプ,レフト
SF3; 1992-09-01~1993-09-01 |
35565-57B01-000 |
— | ||
|
11
|
11
01580-08203-000
Bolt, rear
SF3; 1992-09-01~1993-09-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0820A-000 BoltSF3; 1992-09-01~1993-09-01 |
01580-0820A-000 |
from US $0.91 |
||
|
12
|
12
08212-12155-000
ワッシャー
SF3; 1992-09-01~1993-09-01 |
08212-12155-000 |
— | ||
|
13
|
13
35526-60A00-000
Bracket,bumper member
SF3:2DR; 1992-09-01~1993-09-01 |
35526-60A00-000 |
— | ||
|
15
|
15
08316-10063-000
Nut
SF3; 1992-09-01~1993-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTSF3; 1992-09-01~1993-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
01570-06163-000
Bolt
SF3; 1992-09-01~1993-09-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0616B-000 BoltSF3; 1992-09-01~1993-09-01 |
01570-0616B-000 |
from US $0.80 |
||
|
16
|
16
01570-0616A-000 BoltSF3; 1992-09-01~1993-09-01 |
01570-0616A-000 |
from US $0.80 |
||
|
17
|
17
35527-60A00-000
ブラケット,クロスメンバ,ライト
SF3:2DR; 1992-09-01~1993-09-01 |
35527-60A00-000 |
— | ||
|
18
|
18
35567-60A00-000
ブラケット,クロスメンバ,レフト
SF3:2DR; 1992-09-01~1993-09-01 |
35567-60A00-000 |
— | ||
|
19
|
19
01570-06163-000
Bolt
SF3:2DR; 1992-09-01~1993-09-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01570-0616B-000 BoltSF3:2DR; 1992-09-01~1993-09-01 |
01570-0616B-000 |
from US $0.80 |
||
|
19
|
19
01570-0616A-000 BoltSF3:2DR; 1992-09-01~1993-09-01 |
01570-0616A-000 |
from US $0.80 |
||
|
20
|
20
35531-60A00-000
ブラケット,クロスメンバ,アッパ
SF3:2DR; 1992-09-01~1993-09-01 |
35531-60A00-000 |
— | ||
|
21
|
21
01580-08203-000
Bolt, rear
SF3:2DR; 1992-09-01~1993-09-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
21
|
21
01580-0820A-000 BoltSF3:2DR; 1992-09-01~1993-09-01 |
01580-0820A-000 |
from US $0.91 |
||
|
22
|
22
35544-60A20-000
カバー,フォグランプブラケット
SF3; 1992-09-01~1993-09-01 |
35544-60A20-000 |
— | ||
