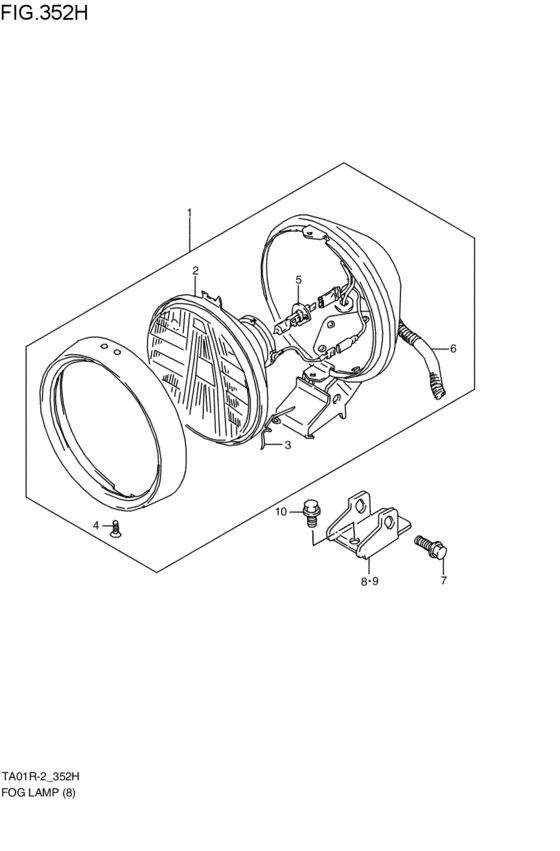

fog light (SH4; 1994-12-01~1995-05-01) Diagram Suzuki ESCUDO
- Year
- 1994 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 2DR
- grade
- SH4
- type
- T4
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-70E00-000
Lamp assy,fog
SH4; 1994-12-01~1995-05-01 |
35500-70E00-000 |
— | ||
|
2
|
2
35514-70E00-000
Lamp unit,fog
SH4; 1994-12-01~1995-05-01 |
35514-70E00-000 |
— | ||
|
3
|
3
35545-70E00-000
スプリング,サポート
SH4; 1994-12-01~1995-05-01 |
35545-70E00-000 |
— | ||
|
4
|
4
02122-05127-000 SCREWSH4; 1994-12-01~1995-05-01 |
02122-05127-000 |
from US $0.80 |
||
|
5
|
5
09471-12122-000 BULB(12V55W/H1/P14.5S/OSRA)SH4; 1994-12-01~1995-05-01 |
09471-12122-000 |
US $200.60 |
||
|
6
|
6
35532-70E00-000
コードアッシ,フォグランプ
SH4; 1994-12-01~1995-05-01 |
35532-70E00-000 |
— | ||
|
7
|
7
01550-08203-000
Bolt
SH4; 1994-12-01~1995-05-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 BoltSH4; 1994-12-01~1995-05-01 |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket SH4; 1994-12-01~1995-05-01 |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
35525-60A00-000
ブラケット,フォグランプ,ライト
SH4; 1994-12-01~1995-05-01 |
35525-60A00-000 |
— | ||
|
9
|
9
35565-60A00-000
ブラケット,フォグランプ,レフト
SH4; 1994-12-01~1995-05-01 |
35565-60A00-000 |
— | ||
|
10
|
10
08316-10063-000
Nut
SH4; 1994-12-01~1995-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTSH4; 1994-12-01~1995-05-01 |
08316-1006B-000 |
from US $0.76 |
||
