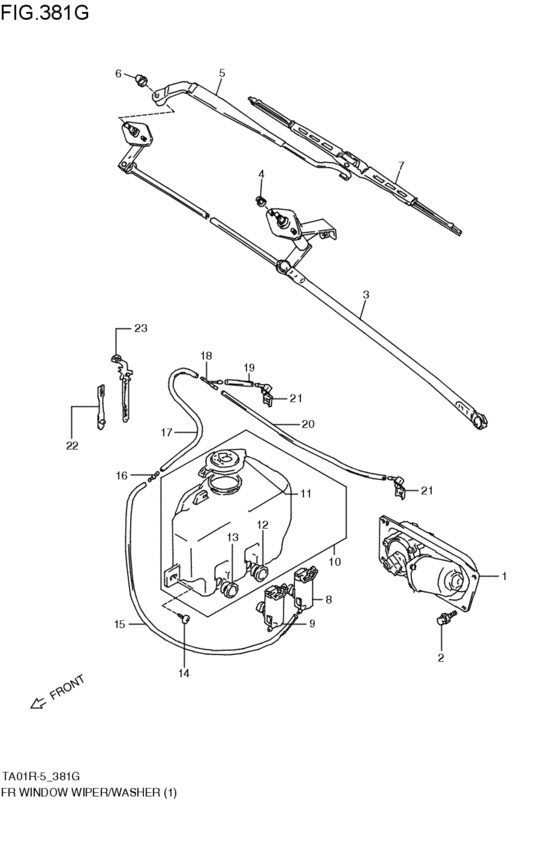

front wind windshield wiper / washer (2DR; 1995-05-01~1996-09-01) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- X
- body
- W
- air bag
- NAB
- abs
- NABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
2DR; 1995-05-01~1996-09-01 |
38101-60A20-000 |
— | ||
|
2
|
2
09115-06001-000
Bolt, lh
2DR; 1995-05-01~1996-09-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16)2DR; 1995-05-01~1996-09-01 |
09115-06005-000 |
US $1.28 |
||
|
3
|
3
38102-60A20-000
LINK ASSY,WIPER
2DR; 1995-05-01~1996-09-01 |
38102-60A20-000 |
— | ||
|
4
|
4
08316-10063-000
Nut
2DR; 1995-05-01~1996-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT2DR; 1995-05-01~1996-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
38310-56B20-000 ARM ASSY,WIPER2DR; 1995-05-01~1996-09-01 |
38310-56B20-000 |
US $58.14 |
||
|
6
|
6
08313-20083-000
Nut
2DR; 1995-05-01~1996-09-01 |
08313-20083-000 |
— | ||
| replacements | |||||
|
6
|
6
08313-2008B-000 NUT2DR; 1995-05-01~1996-09-01 |
08313-2008B-000 |
from US $3.94 |
||
|
6
|
6
08313-2008A-000 NUT2DR; 1995-05-01~1996-09-01 |
08313-2008A-000 |
from US $0.91 |
||
|
7
|
7
38340-50F00-000 BLADE ASSY,WIPER,R2DR; 1995-05-01~1996-09-01 |
38340-50F00-000 |
US $28.34 |
||
|
8
|
8
38410-66113-000 PUMP ASSY,WASHERPump assy, washer FRONT; 2DR; 1995-05-01~1996-09-01 |
38410-66113-000 |
from US $59.20 |
||
|
9
|
9
38410-66113-000 PUMP ASSY,WASHERPump assy, washer REAR; 2DR:W; 1995-05-01~1996-09-01 |
38410-66113-000 |
from US $59.20 |
||
|
10
|
10
38450-61A00-000 TANK ASSY,WASHER2DR:W; 1995-05-01~1996-09-01 |
38450-61A00-000 |
US $73.60 |
||
|
11
|
11
38452-80000-000
キャップ,ウォッシャタンク
2DR; 1995-05-01~1996-09-01 |
38452-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
38452-65D00-000 CAP,WASHER TANK2DR; 1995-05-01~1996-09-01 |
38452-65D00-000 |
from US $1.92 |
||
|
12
|
12
38453-75000-000 GROMMETFRONT; 2DR; 1995-05-01~1996-09-01 |
38453-75000-000 |
US $1.60 |
||
|
13
|
13
38453-75000-000 GROMMETREAR; 2DR:W; 1995-05-01~1996-09-01 |
38453-75000-000 |
US $1.60 |
||
|
14
|
14
09115-06001-000
Bolt, lh
2DR; 1995-05-01~1996-09-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
14
|
14
09115-06005-000 BOLT(6X16)2DR; 1995-05-01~1996-09-01 |
09115-06005-000 |
US $1.28 |
||
|
15
|
15
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>340; 2DR; 1995-05-01~1996-09-01 |
38491-61A00-000 |
US $5.12 |
||
|
16
|
16
38496-61A00-000 VALVE,CHECK2DR; 1995-05-01~1996-09-01 |
38496-61A00-000 |
from US $1.71 |
||
|
17
|
17
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>800; 2DR; 1995-05-01~1996-09-01 |
38491-61A00-000 |
US $5.12 |
||
|
18
|
18
38496-71311-000 CONNECTOR,THREE WAY2DR; 1995-05-01~1996-09-01 |
38496-71311-000 |
US $4.16 |
||
|
19
|
19
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>70; 2DR; 1995-05-01~1996-09-01 |
38491-61A00-000 |
US $5.12 |
||
|
20
|
20
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>650; 2DR; 1995-05-01~1996-09-01 |
38491-61A00-000 |
US $5.12 |
||
|
21
|
21
38480-60A01-000 NOZZLE,WASHER2DR; 1995-05-01~1996-09-01 |
38480-60A01-000 |
US $24.80 |
||
|
22
|
22
09407-05403-000 CLAMP,L:882DR; 1995-05-01~1996-09-01 |
09407-05403-000 |
from US $0.91 |
||
|
23
|
23
09407-12404-000 CLAMP(L:140)2DR; 1995-05-01~1996-09-01 |
09407-12404-000 |
US $2.08 |
||
