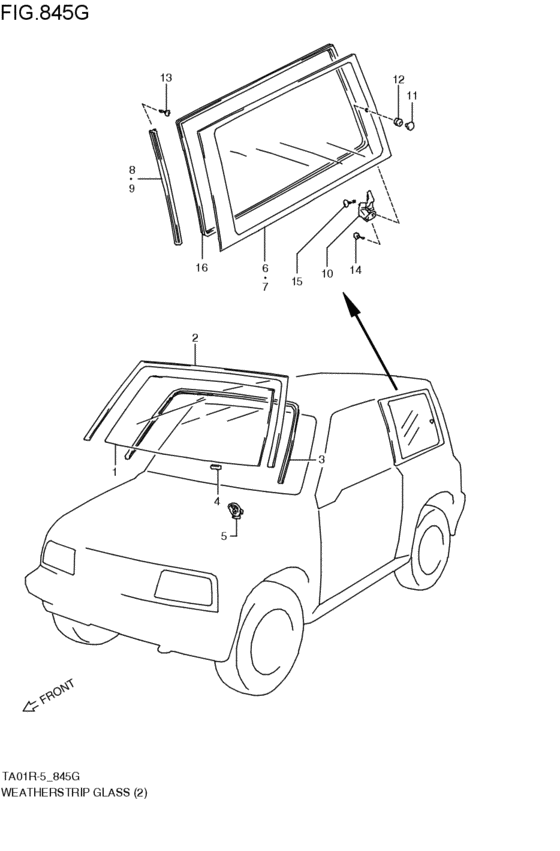

ウエザストリップ / glass (ハードトップ; 2DR:W; 1995-05-01~1996-09-01) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- X
- body
- W
- air bag
- NAB
- abs
- NABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84515-62A30-000
GLASS,WINDSHIELD
ASAHI,グリーン; 2DR:W; 1995-05-01~1996-09-01 |
84515-62A30-000 |
— | ||
|
2
|
2
84611-56B00-5PK MOLDING,WSHLDブラック; 2DR:W; 1995-05-01~1996-09-01 |
84611-56B00-5PK |
from US $97.07 |
||
|
3
|
3
84616-61A00-5PK TRIM,WINDSHIELD OPENINGブラック; 2DR:W; 1995-05-01~1996-09-01 |
84616-61A00-5PK |
US $139.84 |
||
|
4
|
4
84617-61A10-000 SPACER,WINDSHIELD GLASS2DR:W; 1995-05-01~1996-09-01 |
84617-61A10-000 |
US $10.08 |
||
|
5
|
5
84618-62A00-000 STOPPER,WINDSHIELD GLASS2DR:W; 1995-05-01~1996-09-01 |
84618-62A00-000 |
US $3.04 |
||
|
6
|
6
84561-62A30-000
GLASS,QTR WINDOW,R
ASAHI,グリーン; 2DR:W; 1995-05-01~1996-09-01 |
84561-62A30-000 |
— | ||
|
7
|
7
84566-62A30-000
GLASS,QTR WINDOW,L
ASAHI,グリーン; 2DR:W; 1995-05-01~1996-09-01 |
84566-62A30-000 |
— | ||
|
8
|
8
81411-62A00-000 PROTECTOR,QTR WDO GLASS HINGE2DR:W; 1995-05-01~1996-09-01 |
81411-62A00-000 |
US $58.49 |
||
|
9
|
9
81416-62A00-000 PROTECTOR,QTR WDO GLASS HNG,L2DR:W; 1995-05-01~1996-09-01 |
81416-62A00-000 |
US $58.49 |
||
|
10
|
10
81430-61A00-000 LOCK,QTR WINDOW GLASS2DR:W; 1995-05-01~1996-09-01 |
81430-61A00-000 |
US $61.60 |
||
|
11
|
11
81451-80102-000 COVER,QUARTER WINDOW GLASS2DR:W; 1995-05-01~1996-09-01 |
81451-80102-000 |
US $2.24 |
||
|
12
|
12
69275-78200-000 PAD,QUARTER WINDOW2DR:W; 1995-05-01~1996-09-01 |
69275-78200-000 |
US $1.44 |
||
|
13
|
13
02112-36123-000
Screw
2DR:W; 1995-05-01~1996-09-01 |
02112-36123-000 |
— | ||
| replacements | |||||
|
13
|
13
02112-3612B-000 SCREW2DR:W; 1995-05-01~1996-09-01 |
02112-3612B-000 |
US $13.60 |
||
|
13
|
13
02112-3612A-000 SCREW2DR:W; 1995-05-01~1996-09-01 |
02112-3612A-000 |
from US $0.80 |
||
|
14
|
14
02142-05103-000
Screw 5x10
2DR:W; 1995-05-01~1996-09-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0510B-000 SCREWBolt 2DR:W; 1995-05-01~1996-09-01 |
02142-0510B-000 |
from US $0.76 |
||
|
15
|
15
02142-06163-000
Screw
2DR:W; 1995-05-01~1996-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0616A-000 SCREW2DR:W; 1995-05-01~1996-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
16
|
16
84671-62A00-5PK WEATHERSTRIP,QTR WDOブラック; 2DR:W; 1995-05-01~1996-09-01 |
84671-62A00-5PK |
US $110.21 |
||
