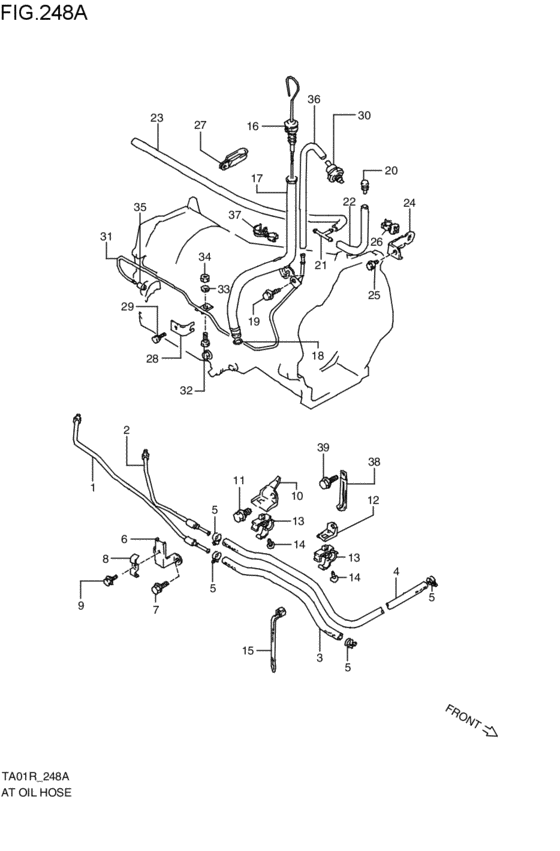

at - oil hose (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SA
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-61A01-000
PIPE,OIL INLET
3AT; 1988-05-01~1990-07-01 |
22910-61A01-000 |
— | ||
|
2
|
2
22920-61A01-000 PIPE,OIL OUTLET3AT; 1988-05-01~1990-07-01 |
22920-61A01-000 |
US $27.05 |
||
|
3
|
3
22931-61A00-000
ホース,オイル,インレット
3AT; 1988-05-01~1990-07-01 |
22931-61A00-000 |
— | ||
| replacement | |||||
|
3
|
3
24891-56X52-000 HOSE SET3AT; 1988-05-01~1990-07-01 |
24891-56X52-000 |
US $52.99 |
||
|
4
|
4
22932-61A00-000
ホース,オイル,アウトレット
3AT; 1988-05-01~1990-07-01 |
22932-61A00-000 |
— | ||
| replacement | |||||
|
4
|
4
24891-56X52-000 HOSE SET3AT; 1988-05-01~1990-07-01 |
24891-56X52-000 |
US $52.99 |
||
|
5
|
5
09400-15302-000
Clamp
3AT; 1988-05-01~1990-07-01 |
09400-15302-000 |
— | ||
| replacement | |||||
|
5
|
5
09400-15311-000 CLAMP3AT; 1988-05-01~1990-07-01 |
09400-15311-000 |
US $23.20 |
||
|
6
|
6
22933-61A01-000
ブラケット,オイルパイプクランプ
3AT; 1988-05-01~1990-07-01 |
22933-61A01-000 |
— | ||
|
7
|
7
01517-08203-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket 3AT; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
7
|
7
01550-0820B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
24899-85500-000
PLATE,OIL PIPE
3AT; 1988-05-01~1990-07-01 |
24899-85500-000 |
— | ||
|
9
|
9
01517-06103-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0610A-000 |
from US $0.80 |
||
|
9
|
9
01550-0610B-000 BoltBolt 3AT; 1988-05-01~1990-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
10
|
10
22934-61A00-000
Bracket,oil hose clamp,no.1
3AT; 1988-05-01~1990-07-01 |
22934-61A00-000 |
— | ||
|
11
|
11
01517-10163-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-10163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1016A-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016A-000 |
from US $4.96 |
||
|
11
|
11
01550-1016B-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016B-000 |
from US $0.96 |
||
|
12
|
12
22935-61A00-000
Bracket,oil hose clamp,no.2
3AT; 1988-05-01~1990-07-01 |
22935-61A00-000 |
— | ||
| replacement | |||||
|
12
|
12
22935-61A10-000 BRACKET,OIL HOSE CLAMP,NO.23AT; 1988-05-01~1990-07-01 |
22935-61A10-000 |
US $3.53 |
||
|
13
|
13
09403-14305-000
クランプ
3AT; 1988-05-01~1990-07-01 |
09403-14305-000 |
— | ||
| replacement | |||||
|
13
|
13
09403-14309-000 CLAMP3AT; 1988-05-01~1990-07-01 |
09403-14309-000 |
US $4.32 |
||
|
14
|
14
03541-06253-000
Screw, lower
3AT; 1988-05-01~1990-07-01 |
03541-06253-000 |
— | ||
| replacement | |||||
|
14
|
14
03542-0625B-000 SCREW3AT; 1988-05-01~1990-07-01 |
03542-0625B-000 |
US $0.80 |
||
|
15
|
15
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 3AT; 1988-05-01~1990-07-01 |
09407-14403-000 |
from US $2.08 |
||
|
16
|
16
22950-61A02-000
ゲージアッシ,オイル
CHKK; 3AT; 1988-05-01~1990-07-01 |
22950-61A02-000 |
— | ||
| replacements | |||||
|
16
|
16
22951-61A01-000 GAUGE,OILCHKK; 3AT; 1988-05-01~1990-07-01 |
22951-61A01-000 |
US $20.79 |
||
|
16
|
16
24839-61A31-000 EMBLEM,ATFCHKK; 3AT; 1988-05-01~1990-07-01 |
24839-61A31-000 |
US $2.47 |
||
|
17
|
17
22940-61A01-000
チューブ,オイルフィラ
3AT; 1988-05-01~1990-07-01 |
22940-61A01-000 |
— | ||
| replacements | |||||
|
17
|
17
22940-61A30-000
TUBE,OIL FILLER
3AT; 1988-05-01~1990-07-01 |
22940-61A30-000 |
— | ||
|
17
|
17
22951-61A01-000 GAUGE,OIL3AT; 1988-05-01~1990-07-01 |
22951-61A01-000 |
US $20.79 |
||
|
17
|
17
22961-61A30-000
Seal,oil filler tube
3AT; 1988-05-01~1990-07-01 |
22961-61A30-000 |
— | ||
|
17
|
17
24839-61A31-000 EMBLEM,ATF3AT; 1988-05-01~1990-07-01 |
24839-61A31-000 |
US $2.47 |
||
|
18
|
18
09280-15009-000
O ring,d:2.6,id:14.5
3AT; 1988-05-01~1990-07-01 |
09280-15009-000 |
— | ||
|
19
|
19
01517-08203-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket 3AT; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
19
|
19
01550-0820B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
24820-60A00-000
ブリーザ
3AT; 1988-05-01~1990-07-01 |
24820-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
27991-65D01-000 PLUG,BREATHER3AT; 1988-05-01~1990-07-01 |
27991-65D01-000 |
from US $1.92 |
||
|
21
|
21
09367-08004-000 3 WAY3 way (m8) 3AT; 1988-05-01~1990-07-01 |
09367-08004-000 |
from US $2.24 |
||
|
22
|
22
09354-70123-460
ホース,7X12X460
L:460>100; 3AT; 1988-05-01~1990-07-01 |
09354-70123-460 |
— | ||
| replacements | |||||
|
22
|
22
09354-65113-600
HOSE(6.5X11.5X600)
L:460>100; 3AT; 1988-05-01~1990-07-01 |
09354-65113-600 |
— | ||
|
22
|
22
44421-12FR0-000 HOSEL:460>100; 3AT; 1988-05-01~1990-07-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
22
|
22
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:460>100; 3AT; 1988-05-01~1990-07-01 |
09355-70125-600 |
from US $5.51 |
||
|
22
|
22
09355-65001-600 Hose(6.5X11.5X600)L:460>100; 3AT; 1988-05-01~1990-07-01 |
09355-65001-600 |
from US $14.74 |
||
|
23
|
23
09354-70123-460
ホース,7X12X460
L:460>430; 3AT; 1988-05-01~1990-07-01 |
09354-70123-460 |
— | ||
| replacements | |||||
|
23
|
23
09354-65113-600
HOSE(6.5X11.5X600)
L:460>430; 3AT; 1988-05-01~1990-07-01 |
09354-65113-600 |
— | ||
|
23
|
23
44421-12FR0-000 HOSEL:460>430; 3AT; 1988-05-01~1990-07-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
23
|
23
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:460>430; 3AT; 1988-05-01~1990-07-01 |
09355-70125-600 |
from US $5.51 |
||
|
23
|
23
09355-65001-600 Hose(6.5X11.5X600)L:460>430; 3AT; 1988-05-01~1990-07-01 |
09355-65001-600 |
from US $14.74 |
||
|
24
|
24
24831-60A00-000
ブラケット,ホースクランプ
3AT; 1988-05-01~1990-07-01 |
24831-60A00-000 |
— | ||
| replacement | |||||
|
24
|
24
24831-57B00-000
BRACKET,BREATHER HOSE CLAMP
3AT; 1988-05-01~1990-07-01 |
24831-57B00-000 |
— | ||
|
25
|
25
01517-06103-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0610A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0610A-000 |
from US $0.80 |
||
|
25
|
25
01550-0610B-000 BoltBolt 3AT; 1988-05-01~1990-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
26
|
26
09403-12314-000 CLAMP3AT; 1988-05-01~1990-07-01 |
09403-12314-000 |
US $17.30 |
||
|
27
|
27
09403-13406-000
クランプ
3AT; 1988-05-01~1990-07-01 |
09403-13406-000 |
— | ||
|
28
|
28
28272-61A00-000
BRACKET,K.D.CABLE
3AT; 1988-05-01~1990-07-01 |
28272-61A00-000 |
— | ||
|
29
|
29
01137-06163-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01137-06163-000 |
— | ||
| replacements | |||||
|
29
|
29
01570-0616B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01570-0616B-000 |
from US $0.80 |
||
|
29
|
29
01570-0616A-000 Bolt3AT; 1988-05-01~1990-07-01 |
01570-0616A-000 |
from US $0.80 |
||
|
30
|
30
18133-61A10-000
FILTER,VACUUM MODULATOR GAS
3AT; 1988-05-01~1990-07-01 |
18133-61A10-000 |
— | ||
|
31
|
31
28260-61A01-000
PIPE,VACUUM MODULATOR
3AT; 1988-05-01~1990-07-01 |
28260-61A01-000 |
— | ||
|
32
|
32
01107-08203-000
Bolt
3AT; 1988-05-01~1990-07-01 |
01107-08203-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0820A-000 Bolt3AT; 1988-05-01~1990-07-01 |
01500-0820A-000 |
from US $0.80 |
||
|
33
|
33
08321-21083-000
Washr,lk8.2x15.
3AT; 1988-05-01~1990-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
33
|
33
08321-0108B-000 WASHER,LOCK3AT; 1988-05-01~1990-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
33
|
33
08321-0108A-000 WASHER,LOCK3AT; 1988-05-01~1990-07-01 |
08321-0108A-000 |
from US $0.80 |
||
|
34
|
34
08310-12083-000
ナット
3AT; 1988-05-01~1990-07-01 |
08310-12083-000 |
— | ||
| replacements | |||||
|
34
|
34
08310-0008A-000 NUTNut, bead stopper 3AT; 1988-05-01~1990-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
34
|
34
08310-0008B-000 NUT3AT; 1988-05-01~1990-07-01 |
08310-0008B-000 |
from US $0.80 |
||
|
35
|
35
09354-54115-300
ホース,5.4X11.4X300
L:300>40; 3AT; 1988-05-01~1990-07-01 |
09354-54115-300 |
— | ||
| replacement | |||||
|
35
|
35
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:300>40; 3AT; 1988-05-01~1990-07-01 |
09355-54115-600 |
from US $7.20 |
||
|
36
|
36
09354-54115-300
ホース,5.4X11.4X300
L:300>285; 3AT; 1988-05-01~1990-07-01 |
09354-54115-300 |
— | ||
| replacement | |||||
|
36
|
36
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:300>285; 3AT; 1988-05-01~1990-07-01 |
09355-54115-600 |
from US $7.20 |
||
|
37
|
37
09408-00105-000 CLAMP3AT; 1988-05-01~1990-07-01 |
09408-00105-000 |
US $29.80 |
||
|
38
|
38
09404-10403-000
Clamp
3AT; 1988-05-01~1990-07-01 |
09404-10403-000 |
— | ||
| replacement | |||||
|
38
|
38
09404-10205-000 CLAMP(L:82)Clamp, lead 3AT; 1988-05-01~1990-07-01 |
09404-10205-000 |
US $1.28 |
||
|
39
|
39
01517-10163-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-10163-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-1016A-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016A-000 |
from US $4.96 |
||
|
39
|
39
01550-1016B-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016B-000 |
from US $0.96 |
||
