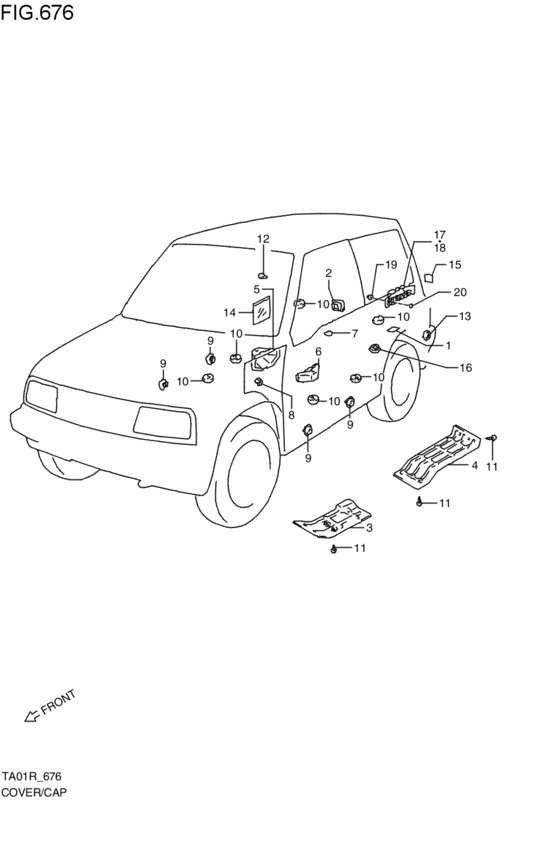

cover / cap (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SA
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72115-70000-000
シール
1988-05-01~1990-07-01 |
72115-70000-000 |
— | ||
| replacement | |||||
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1988-05-01~1990-07-01 |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
75411-60A00-000 CAP,TAIL MEMBER LOWER1988-05-01~1990-07-01 |
75411-60A00-000 |
US $2.56 |
||
|
3
|
3
75511-60A00-000
パネル,ヒートプロテクタ,フロント
1988-05-01~1990-07-01 |
75511-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
75511-60A20-000 PANEL,HEAT PROTECTOR FRONT1988-05-01~1990-07-01 |
75511-60A20-000 |
US $13.76 |
||
|
4
|
4
75512-60A00-000
パネル,ヒートプロテクタ,リヤ
1988-05-01~1990-07-01 |
75512-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
75512-60A10-000 PANEL,HEAT PROTECTOR REAR1988-05-01~1990-07-01 |
75512-60A10-000 |
US $27.23 |
||
|
5
|
5
75611-60A00-000
カバー,シートブラケット,ライト
1988-05-01~1990-07-01 |
75611-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
75611-60A01-000
COVER,SEAT BRACKET,R
1988-05-01~1990-07-01 |
75611-60A01-000 |
— | ||
|
6
|
6
75711-60A00-000
カバー,シートブラケット,レフト
1988-05-01~1990-07-01 |
75711-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
75711-60A01-000 COVER,SEAT BRACKET,L1988-05-01~1990-07-01 |
75711-60A01-000 |
US $15.97 |
||
|
7
|
7
09250-10016-000 CAP(OD:16.2)1988-05-01~1990-07-01 |
09250-10016-000 |
US $9.90 |
||
|
8
|
8
09250-20015-000 CAP(OD:28.5)Cap, air con harness 1988-05-01~1990-07-01 |
09250-20015-000 |
from US $0.79 |
||
|
9
|
9
09250-25007-000 CAP(OD:25.0)1988-05-01~1990-07-01 |
09250-25007-000 |
from US $0.97 |
||
|
10
|
10
09250-30015-000
Cap
1988-05-01~1990-07-01 |
09250-30015-000 |
— | ||
| replacement | |||||
|
10
|
10
72999-67H00-000 CAP,OD:401988-05-01~1990-07-01 |
72999-67H00-000 |
from US $4.32 |
||
|
11
|
11
03141-06163-000
Screw 6x16
1988-05-01~1990-07-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0616A-000 SCREW1988-05-01~1990-07-01 |
03141-0616A-000 |
from US $0.76 |
||
|
12
|
12
77131-60A00-000
CUSHION,FUEL LID
1988-05-01~1989-12-01 |
77131-60A00-000 |
— | ||
|
12
|
12
77131-60A10-000 CUSHION,FUEL LID1989-12-01~1990-07-01 |
77131-60A10-000 |
US $2.94 |
||
|
13
|
13
09250-16013-000 CAP(OD:25)1988-05-01~1990-07-01 |
09250-16013-000 |
US $11.80 |
||
|
14
|
14
76481-61A00-000
FILM,RR QTR WATER PROOF
V,W; 1988-05-01~1990-07-01 |
76481-61A00-000 |
— | ||
|
15
|
15
72115-70000-000
シール
V,W; 1988-05-01~1990-07-01 |
72115-70000-000 |
— | ||
| replacement | |||||
|
15
|
15
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole V,W; 1988-05-01~1990-07-01 |
84761-50X50-000 |
US $6.72 |
||
|
17
|
17
77110-61A10-000 AIR OUTLET ASSY,SIDE,RV,W; 1988-05-01~1990-07-01 |
77110-61A10-000 |
US $49.41 |
||
|
18
|
18
77120-61A10-000 AIR OUTLET ASSY,SIDE,LV,W; 1988-05-01~1990-07-01 |
77120-61A10-000 |
US $49.41 |
||
|
19
|
19
09148-04021-000 NUTV,W; 1988-05-01~1990-07-01 |
09148-04021-000 |
from US $0.96 |
||
|
20
|
20
03132-04165-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
03132-04165-000 |
— | ||
| replacement | |||||
|
20
|
20
03121-0416A-000 SCREWV,W; 1988-05-01~1990-07-01 |
03121-0416A-000 |
US $7.70 |
||
