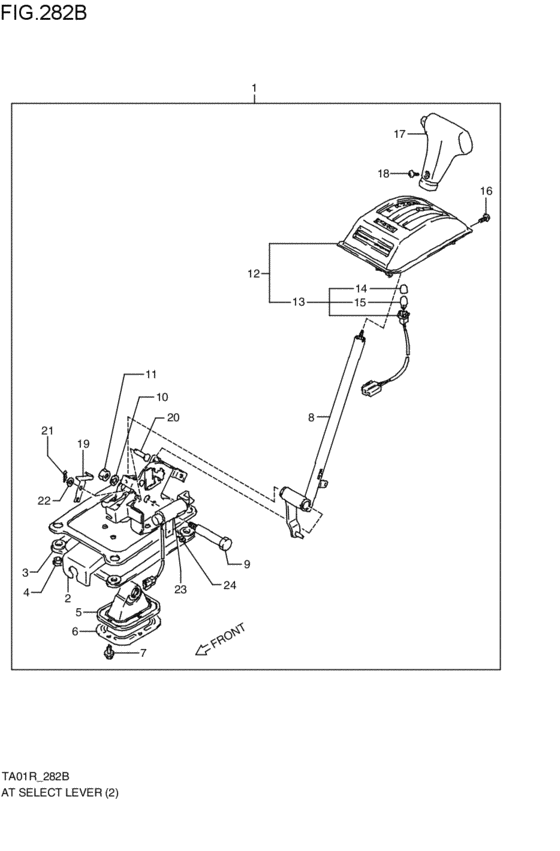

select lever (R-800323ヨリALL,W-802045ヨリALL; 3AT; 1988-08-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SA
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-61A42-000
セレクタアッシ,マニュアル
3AT; 1988-08-01~1990-07-01 |
28100-61A42-000 |
— | ||
|
2
|
2
28130-61A40-000
ハウジング,セレクトレバー
3AT; 1988-08-01~1988-09-01 |
28130-61A40-000 |
— | ||
|
2
|
2
28130-61A41-000
ハウジング,セレクトレバー
3AT; 1988-09-01~1990-07-01 |
28130-61A41-000 |
— | ||
|
3
|
3
28176-61A00-000 GASKET,MANUAL SELECTOR ASSY3AT; 1988-08-01~1990-07-01 |
28176-61A00-000 |
US $11.30 |
||
|
4
|
4
09169-08043-000 WASHER3AT; 1988-08-01~1990-07-01 |
09169-08043-000 |
US $30.20 |
||
|
5
|
5
28174-61A00-000
ブーツ,セレクトレバー,ロア
3AT; 1988-08-01~1990-07-01 |
28174-61A00-000 |
— | ||
|
6
|
6
28175-61A00-000
プレート,セレクトレバーロアブーツ
3AT; 1988-08-01~1990-07-01 |
28175-61A00-000 |
— | ||
|
7
|
7
09409-06313-000 CLIP3AT; 1988-08-01~1990-07-01 |
09409-06313-000 |
from US $3.20 |
||
|
8
|
8
28190-61A00-000
レバー,セレクト
3AT; 1988-08-01~1988-09-01 |
28190-61A00-000 |
— | ||
| replacement | |||||
|
8
|
8
28100-61810-000
New Genuine Part
3AT; 1988-08-01~1988-09-01 |
28100-61810-000 |
— | ||
|
8
|
8
28190-61A40-000
レバー,セレクト
3AT; 1988-09-01~1989-04-01 |
28190-61A40-000 |
— | ||
|
8
|
8
28190-61A50-000
レバー,セレクト
3AT; 1989-04-01~1990-07-01 |
28190-61A50-000 |
— | ||
| replacement | |||||
|
8
|
8
28110-62A50-000
Lever assy,select
3AT; 1989-04-01~1990-07-01 |
28110-62A50-000 |
— | ||
|
9
|
9
28131-82300-000
シャフト,セレクタレバー
3AT; 1988-08-01~1990-07-01 |
28131-82300-000 |
— | ||
|
10
|
10
08321-21103-000 Lock washer3AT; 1988-08-01~1990-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
10
|
10
08321-0110B-000 WASHER,LOCKWasher, knuckle end 3AT; 1988-08-01~1990-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
10
|
10
08321-0110A-000 WASHER,LOCK3AT; 1988-08-01~1990-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
11
|
11
08310-12103-000 Nut3AT; 1988-08-01~1990-07-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
11
|
11
08310-0010B-000 NUT3AT; 1988-08-01~1990-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
11
|
11
08310-0010A-000 NUT3AT; 1988-08-01~1990-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
12
|
12
28150-61A40-000
インジケータアッシ,セレクトレバー
3AT; 1988-08-01~1990-07-01 |
28150-61A40-000 |
— | ||
| replacements | |||||
|
12
|
12
28150-61A10-000
INDICATOR ASSY,SELECT LEVER
3AT; 1988-08-01~1990-07-01 |
28150-61A10-000 |
— | ||
|
12
|
12
28156-61A40-000 EMBLEM,SHIFT LOCK3AT; 1988-08-01~1990-07-01 |
28156-61A40-000 |
US $2.83 |
||
|
13
|
13
28180-61A00-000 LAMP ASSY,SELECT LEVER ILLUM3AT; 1988-08-01~1990-07-01 |
28180-61A00-000 |
US $11.89 |
||
|
14
|
14
28182-61A00-000 FILTER,BULB3AT; 1988-08-01~1990-07-01 |
28182-61A00-000 |
US $2.58 |
||
|
15
|
15
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 3AT; 1988-08-01~1990-07-01 |
09471-12077-000 |
from US $1.52 |
||
|
16
|
16
02112-15106-000
スクリュ
3AT; 1988-08-01~1990-07-01 |
02112-15106-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0510B-000 SCREWBolt 3AT; 1988-08-01~1990-07-01 |
02142-0510B-000 |
from US $0.76 |
||
|
17
|
17
28160-61A10-5PK
KNOB ASSY,SELECT LEVER
ブラック; 3AT; 1988-08-01~1990-07-01 |
28160-61A10-5PK |
— | ||
|
18
|
18
28177-61A00-000
スクリュ,セレクタレバーノブ
3AT; 1988-08-01~1990-07-01 |
28177-61A00-000 |
— | ||
| replacement | |||||
|
18
|
18
09125-05117-000 SCREW(5X6)Screw (5x6) 3AT; 1988-08-01~1990-07-01 |
09125-05117-000 |
from US $0.96 |
||
|
19
|
19
28179-61A41-000
プレート,キーレリーズ
3AT; 1988-08-01~1989-04-01 |
28179-61A41-000 |
— | ||
|
19
|
19
28179-61A50-000
プレート,キーレリーズ
3AT; 1989-04-01~1990-07-01 |
28179-61A50-000 |
— | ||
|
20
|
20
28179-82330-000
ピン,プレートジョイント
3AT; 1988-08-01~1990-07-01 |
28179-82330-000 |
— | ||
|
21
|
21
09385-06001-000 CLIP3AT; 1988-08-01~1990-07-01 |
09385-06001-000 |
from US $4.69 |
||
|
22
|
22
08322-21063-000
Washer
3AT; 1988-08-01~1990-07-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER3AT; 1988-08-01~1990-07-01 |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
38890-61A40-000 SOLENOID,SHIFT LOCK3AT; 1988-08-01~1990-07-01 |
38890-61A40-000 |
US $270.48 |
||
|
24
|
24
01174-05086-000
ボルト
3AT; 1988-08-01~1990-07-01 |
01174-05086-000 |
— | ||
| replacement | |||||
|
24
|
24
01580-05083-000 Bolt3AT; 1988-08-01~1990-07-01 |
01580-05083-000 |
US $13.20 |
||
