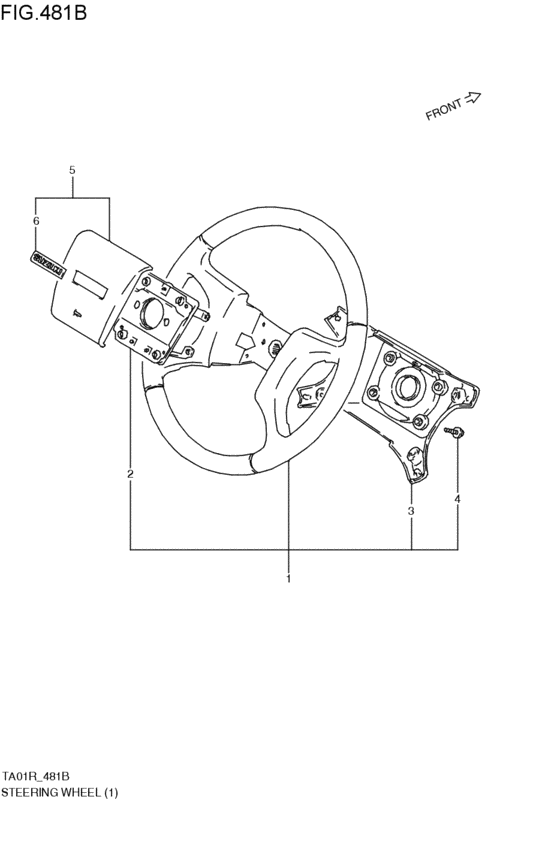

steering wheel (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SA
- body
- H
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-60A10-5ES
Wheel,steering
ブラック; W:(XX,SB,SE,SC,SA); 1988-05-01~1990-07-01 |
48110-60A10-5ES |
— | ||
|
2
|
2
48120-60A10-000
Plate,horn button contact
R,W; 1988-05-01~1990-07-01 |
48120-60A10-000 |
— | ||
|
3
|
3
48140-60A10-5ES
COVER,STRG WHEEL,LOWER
ブラック; R,W; 1988-05-01~1990-07-01 |
48140-60A10-5ES |
— | ||
|
4
|
4
48153-60A40-000
スクリュ,ステアリングホイールカバー
R,W; 1988-05-01~1990-07-01 |
48153-60A40-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-7416A-000 SCREWR,W; 1988-05-01~1990-07-01 |
02112-7416A-000 |
US $11.80 |
||
|
4
|
4
02112-74166-000
SCREW
R,W; 1988-05-01~1990-07-01 |
02112-74166-000 |
— | ||
|
5
|
5
48132-60A10-5ES
ボタン,ホーン(ブラック)
W:SA; 1988-05-01~1990-07-01 |
48132-60A10-5ES |
— | ||
|
6
|
6
48131-60A80-000
エンブレム,ステアリングホイール
W:SA; 1988-05-01~1990-07-01 |
48131-60A80-000 |
— | ||
| replacement | |||||
|
6
|
6
48131-60A10-000
Emblem
W:SA; 1988-05-01~1990-07-01 |
48131-60A10-000 |
— | ||
