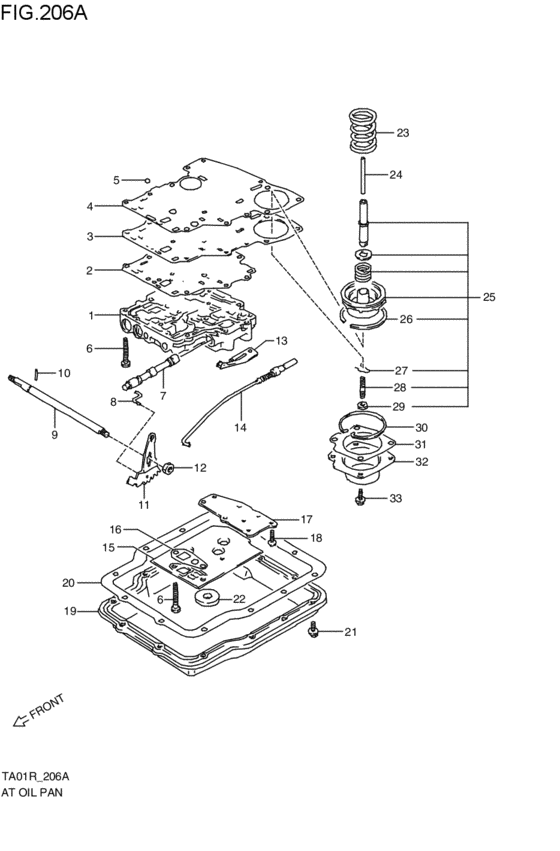

at - oil pan (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26510-61A01-000
バルブアッシ,トランスミッション
M.NO.3398768マデ; 3AT; 1988-05-01~1990-07-01 |
26510-61A01-000 |
— | ||
| replacement | |||||
|
1
|
1
26510-61A03-000
VALVE ASSY,TRANSMISSION
M.NO.3398768マデ; 3AT; 1988-05-01~1990-07-01 |
26510-61A03-000 |
— | ||
|
1
|
1
26510-61A02-000
バルブアッシ,トランスミッション
M.NO.3398769ヨリ; 3AT; 1988-05-01~1990-07-01 |
26510-61A02-000 |
— | ||
| replacement | |||||
|
1
|
1
26510-61A03-000
VALVE ASSY,TRANSMISSION
M.NO.3398769ヨリ; 3AT; 1988-05-01~1990-07-01 |
26510-61A03-000 |
— | ||
|
2
|
2
26566-61A00-000
ガスケット,バルブ
3AT; 1988-05-01~1990-07-01 |
26566-61A00-000 |
— | ||
| replacement | |||||
|
2
|
2
26566-61A01-000 GASKET,TRANSFER PLATE3AT; 1988-05-01~1990-07-01 |
26566-61A01-000 |
US $14.29 |
||
|
3
|
3
26567-61A00-000
プレート,トランスファ
M.NO.3398768マデ; 3AT; 1988-05-01~1990-07-01 |
26567-61A00-000 |
— | ||
|
3
|
3
26567-61A01-000
プレート,トランスファ
M.NO.3398769ヨリ; 3AT; 1988-05-01~1990-07-01 |
26567-61A01-000 |
— | ||
|
4
|
4
26569-61A00-000
ガスケット,ケース
3AT; 1988-05-01~1990-07-01 |
26569-61A00-000 |
— | ||
| replacement | |||||
|
4
|
4
26569-61A01-000 GASKET,VALVE BODY3AT; 1988-05-01~1990-07-01 |
26569-61A01-000 |
US $20.53 |
||
|
5
|
5
22835-61A00-000
ボール,バルブボディ
3AT; 1988-05-01~1990-07-01 |
22835-61A00-000 |
— | ||
|
6
|
6
26571-61A00-000
BOLT,VALVE BODY
3AT; 1988-05-01~1990-07-01 |
26571-61A00-000 |
— | ||
|
7
|
7
26565-61A00-000
バルブ,マニュアル
3AT; 1988-05-01~1990-07-01 |
26565-61A00-000 |
— | ||
|
8
|
8
25922-61A00-000
LINK,MANUAL VALVE
3AT; 1988-05-01~1990-07-01 |
25922-61A00-000 |
— | ||
|
9
|
9
24723-61A00-000
シャフト,マニュアルセレクト
3AT; 1988-05-01~1990-07-01 |
24723-61A00-000 |
— | ||
| replacement | |||||
|
9
|
9
24723-61A01-000
SHAFT,MANUAL SELECT
3AT; 1988-05-01~1990-07-01 |
24723-61A01-000 |
— | ||
|
10
|
10
24724-61A00-000
PIN,MANUAL SELECT SHAFT
3AT; 1988-05-01~1990-07-01 |
24724-61A00-000 |
— | ||
|
11
|
11
25921-61A00-000
レバー,マニュアルセレクタシャフト,インナ
3AT; 1988-05-01~1990-07-01 |
25921-61A00-000 |
— | ||
| replacement | |||||
|
11
|
11
25910-61A10-000
Actuator assy,parking lock
3AT; 1988-05-01~1990-07-01 |
25910-61A10-000 |
— | ||
|
12
|
12
25923-61A00-000
ナット,パーキングロックレバー
3AT; 1988-05-01~1990-07-01 |
25923-61A00-000 |
— | ||
|
13
|
13
25930-61A00-000
ローラアッシ,デテント
3AT; 1988-05-01~1990-07-01 |
25930-61A00-000 |
— | ||
|
14
|
14
25910-61A00-000
アクチュエータアッシ,パーキングロック
3AT; 1988-05-01~1990-07-01 |
25910-61A00-000 |
— | ||
| replacement | |||||
|
14
|
14
25910-61A10-000
Actuator assy,parking lock
3AT; 1988-05-01~1990-07-01 |
25910-61A10-000 |
— | ||
|
15
|
15
26950-61A00-000 SCREEN ASSY,OIL PUMP3AT; 1988-05-01~1990-07-01 |
26950-61A00-000 |
US $70.69 |
||
|
16
|
16
26961-61A00-000 GASKET,SCREEN3AT; 1988-05-01~1990-07-01 |
26961-61A00-000 |
US $9.90 |
||
|
17
|
17
26962-61A00-000
REINFORCEMENT,TRANSFER PLATE
3AT; 1988-05-01~1990-07-01 |
26962-61A00-000 |
— | ||
|
18
|
18
26928-61A00-000
BOLT,SERVO PISTON COVER
3AT; 1988-05-01~1990-07-01 |
26928-61A00-000 |
— | ||
|
19
|
19
24741-61A00-000 PAN,T/M OIL3AT; 1988-05-01~1990-07-01 |
24741-61A00-000 |
US $241.68 |
||
|
20
|
20
24752-61A00-000 GASKET,T/M OIL PAN3AT; 1988-05-01~1990-07-01 |
24752-61A00-000 |
from US $13.86 |
||
|
21
|
21
24753-61A00-000
BOLT,T/M OIL PAN
3AT; 1988-05-01~1990-07-01 |
24753-61A00-000 |
— | ||
|
22
|
22
24751-61A00-000 MAGNET,T/M OIL PAN3AT; 1988-05-01~1990-07-01 |
24751-61A00-000 |
from US $5.85 |
||
|
23
|
23
26923-61A00-000
SPRING,SERVO PISTON RETURN
3AT; 1988-05-01~1990-07-01 |
26923-61A00-000 |
— | ||
|
24
|
24
26921-61A00-000
ロッド,サーボピストン
3AT; 1988-05-01~1990-07-01 |
26921-61A00-000 |
— | ||
|
25
|
25
26970-61A01-000
ピストンアッシ,サーボ
3AT; 1988-05-01~1990-07-01 |
26970-61A01-000 |
— | ||
|
26
|
26
26912-61A00-000
リング,サーボピストンシール
3AT; 1988-05-01~1990-07-01 |
26912-61A00-000 |
— | ||
|
27
|
27
26915-61A00-000
Clip,servo piston
3AT; 1988-05-01~1990-07-01 |
26915-61A00-000 |
— | ||
|
28
|
28
26924-61A00-000
スタッドボルト,サーボピストンアジャスタ
3AT; 1988-05-01~1990-07-01 |
26924-61A00-000 |
— | ||
|
29
|
29
26925-61A00-000
ナット,サーボピストンアジャストボルト
3AT; 1988-05-01~1990-07-01 |
26925-61A00-000 |
— | ||
|
30
|
30
26922-61A00-000
リング,サーボピストンリテーナ
3AT; 1988-05-01~1990-07-01 |
26922-61A00-000 |
— | ||
|
31
|
31
26927-61A00-000 GASKET,SERVO PISTON COVER3AT; 1988-05-01~1990-07-01 |
26927-61A00-000 |
US $14.29 |
||
|
32
|
32
26926-61A00-000
カバー,サーボピストン
3AT; 1988-05-01~1990-07-01 |
26926-61A00-000 |
— | ||
|
33
|
33
26928-61A00-000
BOLT,SERVO PISTON COVER
3AT; 1988-05-01~1990-07-01 |
26928-61A00-000 |
— | ||
