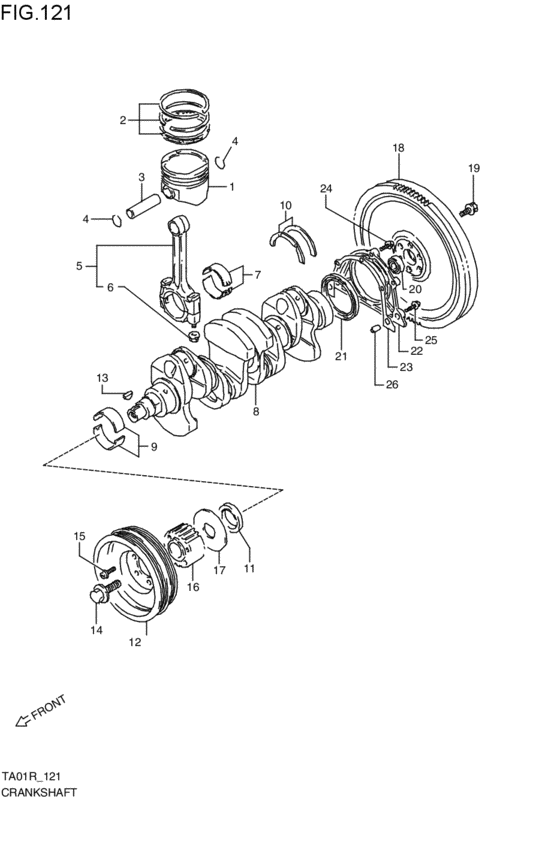

crankshaft (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-60A00-0A0
ピストン,STDマーク 1
マ-ク 1; 1988-05-01~1989-07-01 |
12111-60A00-0A0 |
— | ||
| replacements | |||||
|
1
|
1
12111-60A02-0A0
PISTON,STD
マ-ク 1; 1988-05-01~1989-07-01 |
12111-60A02-0A0 |
— | ||
|
1
|
1
09381-19001-000 RING,SNAPSnap ring マ-ク 1; 1988-05-01~1989-07-01 |
09381-19001-000 |
from US $0.90 |
||
|
1
|
1
12151-86501-000 PIN,PISTONマ-ク 1; 1988-05-01~1989-07-01 |
12151-86501-000 |
from US $5.42 |
||
|
1
|
1
12111-60A00-0B0
ピストン,STDマーク 2
マ-ク 2; 1988-05-01~1989-07-01 |
12111-60A00-0B0 |
— | ||
| replacements | |||||
|
1
|
1
12111-60A02-0B0
Piston std
マ-ク 2; 1988-05-01~1989-07-01 |
12111-60A02-0B0 |
— | ||
|
1
|
1
09381-19001-000 RING,SNAPSnap ring マ-ク 2; 1988-05-01~1989-07-01 |
09381-19001-000 |
from US $0.90 |
||
|
1
|
1
12151-86501-000 PIN,PISTONマ-ク 2; 1988-05-01~1989-07-01 |
12151-86501-000 |
from US $5.42 |
||
|
1
|
1
12111-60A01-0A0
ピストン,STDマーク 1
マ-ク 1; 1989-07-01~1990-07-01 |
12111-60A01-0A0 |
— | ||
| replacement | |||||
|
1
|
1
12111-60A02-0A0
PISTON,STD
マ-ク 1; 1989-07-01~1990-07-01 |
12111-60A02-0A0 |
— | ||
|
1
|
1
12111-60A01-0B0
ピストン,STDマーク 2
マ-ク 2; 1989-07-01~1990-07-01 |
12111-60A01-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12111-60A02-0B0
Piston std
マ-ク 2; 1989-07-01~1990-07-01 |
12111-60A02-0B0 |
— | ||
|
2
|
2
12140-71C00-000
リングセット,ピストン,STD
1988-05-01~1990-07-01 |
12140-71C00-000 |
— | ||
| replacement | |||||
|
2
|
2
12140-60A50-000 RING SET,PISTON1988-05-01~1990-07-01 |
12140-60A50-000 |
from US $59.13 |
||
|
3
|
3
12151-60A00-000
ピン,ピストン
1988-05-01~1990-07-01 |
12151-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-77500-000 PIN,PISTON1988-05-01~1990-07-01 |
12151-77500-000 |
US $8.98 |
||
|
3
|
3
12151-86500-000
ピン,ピストン
1989-07-01~1990-07-01 |
12151-86500-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-86501-000 PIN,PISTON1989-07-01~1990-07-01 |
12151-86501-000 |
from US $5.42 |
||
|
4
|
4
09381-19001-000 RING,SNAPSnap ring NHK; 1989-07-01~1990-07-01 |
09381-19001-000 |
from US $0.90 |
||
|
5
|
5
12160-60A01-000
Connrod assy
1988-05-01~1989-07-01 |
12160-60A01-000 |
— | ||
|
5
|
5
12160-71C00-000
Connrod assy
1989-07-01~1990-07-01 |
12160-71C00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-71C20-000 CONNROD ASSY1989-07-01~1990-07-01 |
12160-71C20-000 |
from US $73.98 |
||
|
6
|
6
09159-08033-000 NUT1988-05-01~1990-07-01 |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12100-60820-0A0
ベアリングセット,コンロッド
1988-05-01~1990-07-01 |
12100-60820-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-0A0 BEARING SET,CONNROD1988-05-01~1990-07-01 |
12100-60822-0A0 |
from US $14.47 |
||
|
7
|
7
12100-60821-025
Bearing set, connrod (us:0.25)
1988-05-01~1990-07-01 |
12100-60821-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-025 BEARING SET,CONNROD US:0251988-05-01~1990-07-01 |
12100-60822-025 |
from US $16.34 |
||
|
8
|
8
12221-60A00-000
クランクシャフト
1988-05-01~1990-07-01 |
12221-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-71C00-000 CRANKSHAFT1988-05-01~1990-07-01 |
12221-71C00-000 |
from US $607.07 |
||
|
9
|
9
12300-60810-0AA
BEARING SET (COLOR:RED/GREEN)
カラー:レッド/グリーン; 1988-05-01~1990-07-01 |
12300-60810-0AA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0CA BEARING SET,CRANK RED/GREENカラー:レッド/グリーン; 1988-05-01~1990-07-01 |
12300-57820-0CA |
from US $21.69 |
||
|
9
|
9
12300-58820-0AA
ベアリングセット,カラー:レッド/グリーン
カラー:レッド/グリーン; 1988-05-01~1990-07-01 |
12300-58820-0AA |
— | ||
|
9
|
9
12300-60810-0BA
BEARING SET (COLOR:RED/BLACK)
カラー:レッド/ブラック; 1988-05-01~1990-07-01 |
12300-60810-0BA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0DA BEARING SET,CRANK RED/BLACKカラー:レッド/ブラック; 1988-05-01~1990-07-01 |
12300-57820-0DA |
from US $19.26 |
||
|
9
|
9
12300-58820-0BA
Bearing set,crankshaft(us)
カラー:レッド/ブラック; 1988-05-01~1990-07-01 |
12300-58820-0BA |
— | ||
|
9
|
9
12300-60810-0CA
BEARING SET (COLOR:RED)
カラー:レッド; 1988-05-01~1990-07-01 |
12300-60810-0CA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0EA BEARING SET,CRANK REDカラー:レッド; 1988-05-01~1990-07-01 |
12300-57820-0EA |
from US $19.73 |
||
|
9
|
9
12300-58820-0CA
ベアリングセット,カラー:レッド
カラー:レッド; 1988-05-01~1990-07-01 |
12300-58820-0CA |
— | ||
|
9
|
9
12300-60810-0DA
BEARING SET (COLOR:RED/YELLOW)
カラー:レッド/イエロ; 1988-05-01~1990-07-01 |
12300-60810-0DA |
— | ||
| replacement | |||||
|
9
|
9
12300-58810-0DA BEARING SET,CRANK RED/YELLOWカラー:レッド/イエロ; 1988-05-01~1990-07-01 |
12300-58810-0DA |
US $22.26 |
||
|
9
|
9
12300-60810-0EA
BEARING SET (COLOR:RED/BLUE)
カラー:レッド/ブルー; 1988-05-01~1990-07-01 |
12300-60810-0EA |
— | ||
| replacement | |||||
|
9
|
9
12300-58810-0EA BEARING SET,CRANK RED/BLUEカラー:レッド/ブルー; 1988-05-01~1990-07-01 |
12300-58810-0EA |
US $22.26 |
||
|
9
|
9
12340-60A10-0A0
BEARING SET (COLOR:GREEN)
カラー:グリーン; 1988-05-01~1990-07-01 |
12340-60A10-0A0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0C0 BEARING SET,CRANK GREENカラー:グリーン; 1988-05-01~1990-07-01 |
12340-57K02-0C0 |
from US $14.87 |
||
|
9
|
9
12340-58BA0-0A0
Bearing set, main (green)
カラー:グリーン; 1988-05-01~1990-07-01 |
12340-58BA0-0A0 |
— | ||
|
9
|
9
12340-60A10-0B0
BEARING SET (COLOR:BLACK)
カラー:ブラック; 1988-05-01~1990-07-01 |
12340-60A10-0B0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0D0 BEARING SET,CRANK BLACKカラー:ブラック; 1988-05-01~1990-07-01 |
12340-57K02-0D0 |
from US $16.49 |
||
|
9
|
9
12340-58BA0-0B0 Bearing set, main (black)カラー:ブラック; 1988-05-01~1990-07-01 |
12340-58BA0-0B0 |
US $30.40 |
||
|
9
|
9
12340-60A10-0C0
BEARING SET (COLOR:NON)
カラー:ナシ; 1988-05-01~1990-07-01 |
12340-60A10-0C0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0E0 BEARING SET,CRANK NONカラー:ナシ; 1988-05-01~1990-07-01 |
12340-57K02-0E0 |
from US $14.96 |
||
|
9
|
9
12340-58BA0-0C0 Bearing set, main (n/paint)カラー:ナシ; 1988-05-01~1990-07-01 |
12340-58BA0-0C0 |
US $30.40 |
||
|
9
|
9
12340-60A10-0D0
BEARING SET (COLOR:YELLOW)
カラー:イエロ; 1988-05-01~1990-07-01 |
12340-60A10-0D0 |
— | ||
| replacement | |||||
|
9
|
9
12340-58B00-0D0 BEARING SET,CRANK YELLOWカラー:イエロ; 1988-05-01~1990-07-01 |
12340-58B00-0D0 |
from US $31.17 |
||
|
9
|
9
12340-60A10-0E0
BEARING SET (COLOR:BLUE)
カラー:ブルー; 1988-05-01~1990-07-01 |
12340-60A10-0E0 |
— | ||
| replacement | |||||
|
9
|
9
12340-58B00-0E0 BEARING SET,CRANK BLUEカラー:ブルー; 1988-05-01~1990-07-01 |
12340-58B00-0E0 |
US $32 |
||
|
10
|
10
12300-60820-000
Metal set,crank
1988-05-01~1990-07-01 |
12300-60820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUST1988-05-01~1990-07-01 |
12300-78890-000 |
from US $13.07 |
||
|
10
|
10
12300-60820-012
ベアリングセット,クランクスラスト
1988-05-01~1990-07-01 |
12300-60820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST US1988-05-01~1990-07-01 |
12300-78890-012 |
from US $12.96 |
||
|
11
|
11
09283-32026-000
オイルシール,32X47X6
1988-05-01~1990-07-01 |
09283-32026-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6)1988-05-01~1990-07-01 |
09283-32042-000 |
from US $8.03 |
||
|
12
|
12
12610-60A50-000
PULLEY,CRANKSHAFT
R,W; 1988-05-01~1990-07-01 |
12610-60A50-000 |
— | ||
|
13
|
13
08341-31059-000 KEYKey 1988-05-01~1990-07-01 |
08341-31059-000 |
from US $1.49 |
||
|
14
|
14
12619-60B00-000 BOLT,CRANK PULLEY1988-05-01~1990-07-01 |
12619-60B00-000 |
US $7.36 |
||
|
15
|
15
07120-06205-000
Bolt, pillion
1988-05-01~1990-07-01 |
07120-06205-000 |
— | ||
| replacement | |||||
|
15
|
15
07120-0620B-000 BOLT1988-05-01~1990-07-01 |
07120-0620B-000 |
from US $0.96 |
||
|
16
|
16
12631-86500-000
プーリ,クランクタイミングベルト
1988-05-01~1990-07-01 |
12631-86500-000 |
— | ||
| replacement | |||||
|
16
|
16
12631-86510-000 PULLEY,CRANK TIMING BELT1988-05-01~1990-07-01 |
12631-86510-000 |
US $118.40 |
||
|
17
|
17
12635-78401-000 GUIDE,TIMING BELT1988-05-01~1990-07-01 |
12635-78401-000 |
from US $3.65 |
||
|
21
|
21
09283-68002-000 SEAL,OIL(68X86X8)1988-05-01~1990-07-01 |
09283-68002-000 |
from US $22.68 |
||
|
22
|
22
11341-82000-000
Housing, oil seal
1988-05-01~1990-07-01 |
11341-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
11341-82001-000
HOUSING,OIL SEAL
1988-05-01~1990-07-01 |
11341-82001-000 |
— | ||
|
23
|
23
11349-60A00-000
ガスケット,オイルシールハウジング
1988-05-01~1990-07-01 |
11349-60A00-000 |
— | ||
| replacement | |||||
|
23
|
23
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing 1988-05-01~1990-07-01 |
11349-60A01-000 |
from US $6.05 |
||
|
24
|
24
01517-06203-000
Bolt
1988-05-01~1990-07-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0620B-000 BOLTBolt, inspection cap 1988-05-01~1990-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
24
|
24
01550-0620A-000 BOLT1988-05-01~1990-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
25
|
25
01517-06253-000
ボルト
1988-05-01~1990-07-01 |
01517-06253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0625A-000 BOLTBolt 1988-05-01~1990-07-01 |
01550-0625A-000 |
from US $0.96 |
||
|
25
|
25
01550-0625B-000 BOLTBolt, head cover 1988-05-01~1990-07-01 |
01550-0625B-000 |
from US $0.91 |
||
|
26
|
26
04211-09109-000 PINKnock pin 1988-05-01~1990-07-01 |
04211-09109-000 |
from US $0.96 |
||
