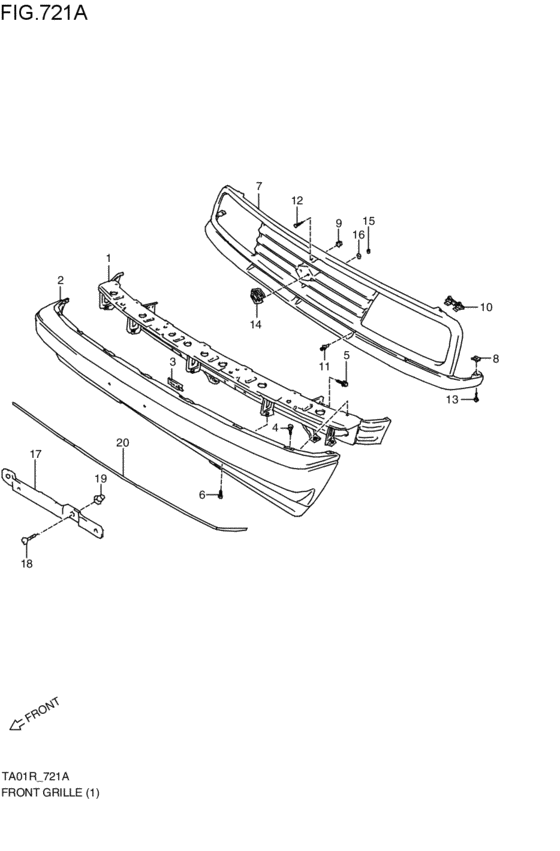

front grill / grill guard (ワゴン; R,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71701-60A00-000
MEMBER ASSY,FR BUMPER
R,W; 1988-05-01~1990-07-01 |
71701-60A00-000 |
— | ||
|
2
|
2
71711-60A20-799 BUMPER,FR(PRIMARY)プライマリ-; R,W:(XX,SA,SB); 1988-05-01~1990-07-01 |
71711-60A20-799 |
US $499.84 |
||
|
3
|
3
71771-60A00-000 RETAINER,FR LICENSE PLATER,W; 1988-05-01~1990-07-01 |
71771-60A00-000 |
US $4.16 |
||
|
4
|
4
09111-06058-000 BOLT(6X14.1)R,W; 1988-05-01~1990-07-01 |
09111-06058-000 |
from US $0.80 |
||
|
5
|
5
01517-08163-000
Bolt 8 x 16
R,W; 1988-05-01~1990-07-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BOLTR,W; 1988-05-01~1990-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear R,W; 1988-05-01~1990-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
02142-06123-000
Screw
R,W; 1988-05-01~1990-07-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0612B-000 SCREWR,W; 1988-05-01~1990-07-01 |
02142-0612B-000 |
from US $0.76 |
||
|
6
|
6
02142-0612A-000 SCREWR,W; 1988-05-01~1990-07-01 |
02142-0612A-000 |
from US $0.80 |
||
|
7
|
7
72111-60A30-000 GRILLE,FRR,W; 1988-05-01~1990-07-01 |
72111-60A30-000 |
US $312.80 |
||
|
8
|
8
09148-05003-000 NUTR,W; 1988-05-01~1990-07-01 |
09148-05003-000 |
US $1.28 |
||
|
9
|
9
09148-05018-000 NUTR,W; 1988-05-01~1990-07-01 |
09148-05018-000 |
from US $0.63 |
||
|
10
|
10
72115-60A00-000 CLIP,FR GRILLER,W; 1988-05-01~1990-07-01 |
72115-60A00-000 |
from US $1.60 |
||
|
11
|
11
09409-07313-000 CLIPR,W; 1988-05-01~1990-07-01 |
09409-07313-000 |
from US $1.28 |
||
|
12
|
12
03112-05255-000
スクリュ
R,W; 1988-05-01~1990-07-01 |
03112-05255-000 |
— | ||
| replacement | |||||
|
12
|
12
03112-0525B-000 SCREWR,W; 1988-05-01~1990-07-01 |
03112-0525B-000 |
US $0.80 |
||
|
13
|
13
09136-05034-000 SCREW(5X16)R,W; 1988-05-01~1990-07-01 |
09136-05034-000 |
from US $1.28 |
||
|
14
|
14
77811-60A00-0PG
エンブレム,Sマーク(クローム)
クロ-ム; R,W; 1988-05-01~1990-07-01 |
77811-60A00-0PG |
— | ||
| replacement | |||||
|
14
|
14
77811-60A01-0PG EMBLEM,S MARKクロ-ム; R,W; 1988-05-01~1990-07-01 |
77811-60A01-0PG |
from US $18.59 |
||
|
15
|
15
09148-05006-000 NUTR,W; 1988-11-01~1990-07-01 |
09148-05006-000 |
from US $0.74 |
||
|
16
|
16
09161-05016-000
Cushion
R,W; 1988-11-01~1990-07-01 |
09161-05016-000 |
— | ||
| replacement | |||||
|
16
|
16
09320-06501-000 CUSHIONCushion R,W; 1988-11-01~1990-07-01 |
09320-06501-000 |
from US $4.91 |
||
