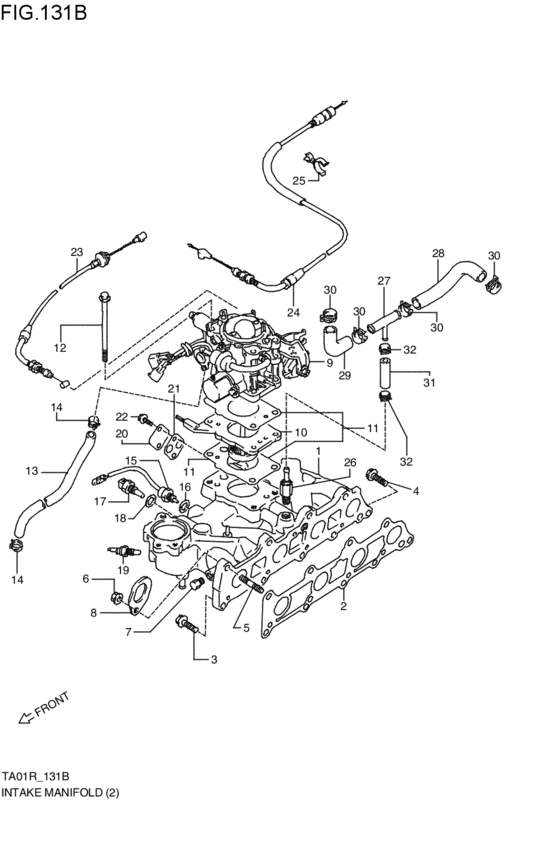

intake manifold (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-61A12-000
マニホールド,インテーク
3AT; 1988-05-01~1990-07-01 |
13110-61A12-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-61X50-000
MANIFOLD,INTK
3AT; 1988-05-01~1990-07-01 |
13110-61X50-000 |
— | ||
|
2
|
2
13119-60A00-000 GASKET,INTK MANF3AT; 1988-05-01~1990-07-01 |
13119-60A00-000 |
US $39.20 |
||
|
3
|
3
01517-08253-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0825A-000 |
from US $1.06 |
||
|
3
|
3
01550-0825B-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01517-08256-000
Bolt
3AT; 1988-05-01~1990-07-01 |
01517-08256-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
3AT; 1988-05-01~1990-07-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD3AT; 1988-05-01~1990-07-01 |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-16083-000 NutNut 3AT; 1988-05-01~1990-07-01 |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT3AT; 1988-05-01~1990-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
09246-04002-000
プラグ
3AT; 1988-05-01~1990-07-01 |
09246-04002-000 |
— | ||
| replacement | |||||
|
7
|
7
09246-04005-000 PLUGPlug, cylinder head cover 3AT; 1988-05-01~1990-07-01 |
09246-04005-000 |
from US $2.72 |
||
|
8
|
8
11851-73001-000
フック,エンジン
3AT; 1988-05-01~1990-07-01 |
11851-73001-000 |
— | ||
| replacement | |||||
|
8
|
8
11851-62B00-000 HOOK3AT; 1988-05-01~1990-07-01 |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
13400-61A50-000
ボディアッシ,スロットル
3AT; 1988-05-01~1988-12-01 |
13400-61A50-000 |
— | ||
| replacements | |||||
|
9
|
9
13400-61A70-000
Body assy,throttle
3AT; 1988-05-01~1988-12-01 |
13400-61A70-000 |
— | ||
|
9
|
9
15910-61A02-000 CABLE ASSY,ACCEL3AT; 1988-05-01~1988-12-01 |
15910-61A02-000 |
US $24.66 |
||
|
9
|
9
13400-61A51-000
ボディアッシ,スロットル
3AT; 1988-12-01~1990-07-01 |
13400-61A51-000 |
— | ||
| replacement | |||||
|
9
|
9
13400-61A70-000
Body assy,throttle
3AT; 1988-12-01~1990-07-01 |
13400-61A70-000 |
— | ||
|
10
|
10
13120-61A00-000
ヒータ,PTC
3AT; 1988-05-01~1988-12-01 |
13120-61A00-000 |
— | ||
| replacements | |||||
|
10
|
10
13120-61A01-000
HEATER,PTC
3AT; 1988-05-01~1988-12-01 |
13120-61A01-000 |
— | ||
|
10
|
10
13421-61A00-000 GASKET,THROTTLE BODY3AT; 1988-05-01~1988-12-01 |
13421-61A00-000 |
US $12.32 |
||
|
10
|
10
13120-61A01-000
HEATER,PTC
3AT; 1988-12-01~1990-07-01 |
13120-61A01-000 |
— | ||
|
11
|
11
13421-61A00-000 GASKET,THROTTLE BODY3AT; 1988-12-01~1990-07-01 |
13421-61A00-000 |
US $12.32 |
||
|
12
|
12
09103-08133-000 BOLT(8X105)Bolt, engine mounting (8x105) 3AT; 1988-05-01~1990-07-01 |
09103-08133-000 |
US $23.90 |
||
|
13
|
13
13492-61A00-000
Hose,water throt body,outlet
3AT; 1988-05-01~1990-07-01 |
13492-61A00-000 |
— | ||
|
14
|
14
09401-12404-000 CLIPClip 3AT; 1988-05-01~1990-07-01 |
09401-12404-000 |
from US $1.52 |
||
|
15
|
15
13650-61A00-000
センサ,インレットエアテンパレチャ
3AT; 1988-05-01~1990-07-01 |
13650-61A00-000 |
— | ||
| replacement | |||||
|
15
|
15
13650-61A01-000
SENSOR,INLET AIR TEMP
3AT; 1988-05-01~1990-07-01 |
13650-61A01-000 |
— | ||
|
16
|
16
09168-12016-000 GASKET(12.2X21X0.8)3AT; 1988-05-01~1990-07-01 |
09168-12016-000 |
from US $1.12 |
||
|
17
|
17
13650-84101-000
Sensor,water Temp
DENSO; 3AT; 1988-05-01~1990-07-01 |
13650-84101-000 |
— | ||
|
18
|
18
09168-12016-000 GASKET(12.2X21X0.8)3AT; 1988-05-01~1990-07-01 |
09168-12016-000 |
from US $1.12 |
||
|
19
|
19
34850-82001-000
Gauge assy, water temperature
DENSO; 3AT; 1988-05-01~1990-07-01 |
34850-82001-000 |
— | ||
| replacement | |||||
|
19
|
19
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; 3AT; 1988-05-01~1990-07-01 |
34850-50A00-000 |
from US $40.80 |
||
|
20
|
20
18491-61A00-000 PLATE,EGR VALVE3AT; 1988-05-01~1990-07-01 |
18491-61A00-000 |
US $9.92 |
||
|
21
|
21
18529-60A00-000 GASKET,EGR VALVE3AT; 1988-05-01~1990-07-01 |
18529-60A00-000 |
US $1.60 |
||
|
22
|
22
01517-06123-000
Bolt
3AT; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp 3AT; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
15910-60A01-000
ケーブルアッシ,アクセル
CHKK; 3AT; 1988-05-01~1988-12-01 |
15910-60A01-000 |
— | ||
| replacement | |||||
|
23
|
23
15910-60A03-000 CABLE ASSY,ACCEL,RCHKK; 3AT; 1988-05-01~1988-12-01 |
15910-60A03-000 |
US $29.26 |
||
|
23
|
23
15910-61A01-000
ケーブルアッシ,アクセル
CHKK; 3AT; 1988-12-01~1990-07-01 |
15910-61A01-000 |
— | ||
| replacement | |||||
|
23
|
23
15910-61A02-000 CABLE ASSY,ACCELCHKK; 3AT; 1988-12-01~1990-07-01 |
15910-61A02-000 |
US $24.66 |
||
|
24
|
24
15940-61A00-000
CABLE ASSY,KICK DOWN
CHKK; 3AT; 1988-05-01~1990-07-01 |
15940-61A00-000 |
— | ||
|
25
|
25
09408-00110-000 CLAMP3AT; 1988-05-01~1990-07-01 |
09408-00110-000 |
US $26.50 |
||
|
26
|
26
18118-80010-000 VALVE,PCV3AT; 1988-05-01~1990-07-01 |
18118-80010-000 |
US $38.40 |
||
|
27
|
27
09367-14002-000 JOINT3AT; 1988-05-01~1990-07-01 |
09367-14002-000 |
US $58.90 |
||
|
28
|
28
11191-61A00-000
HOSE,BREATHER
3AT; 1988-05-01~1990-07-01 |
11191-61A00-000 |
— | ||
|
29
|
29
11193-85010-000
ホース,PCV
3AT; 1988-05-01~1990-07-01 |
11193-85010-000 |
— | ||
| replacement | |||||
|
29
|
29
11192-76JA0-000 HOSE,BREATHER T/C INLET3AT; 1988-05-01~1990-07-01 |
11192-76JA0-000 |
US $11.52 |
||
|
30
|
30
09401-18402-000 クリップ3AT; 1988-05-01~1990-07-01 |
09401-18402-000 |
US $1.10 |
||
| replacement | |||||
|
30
|
30
09401-18404-000 CLIP3AT; 1988-05-01~1990-07-01 |
09401-18404-000 |
from US $1.33 |
||
|
31
|
31
09354-70153-300
ホース,ID:7 OD:15
L:300>45; 3AT; 1988-05-01~1990-07-01 |
09354-70153-300 |
— | ||
| replacement | |||||
|
31
|
31
09354-70153-600 HOSE(7X15X600)L:300>45; 3AT; 1988-05-01~1990-07-01 |
09354-70153-600 |
US $16.80 |
||
|
32
|
32
09401-13406-000
Clamp
3AT; 1988-05-01~1990-07-01 |
09401-13406-000 |
— | ||
| replacement | |||||
|
32
|
32
09401-13404-000
CLIP
3AT; 1988-05-01~1990-07-01 |
09401-13404-000 |
— | ||
