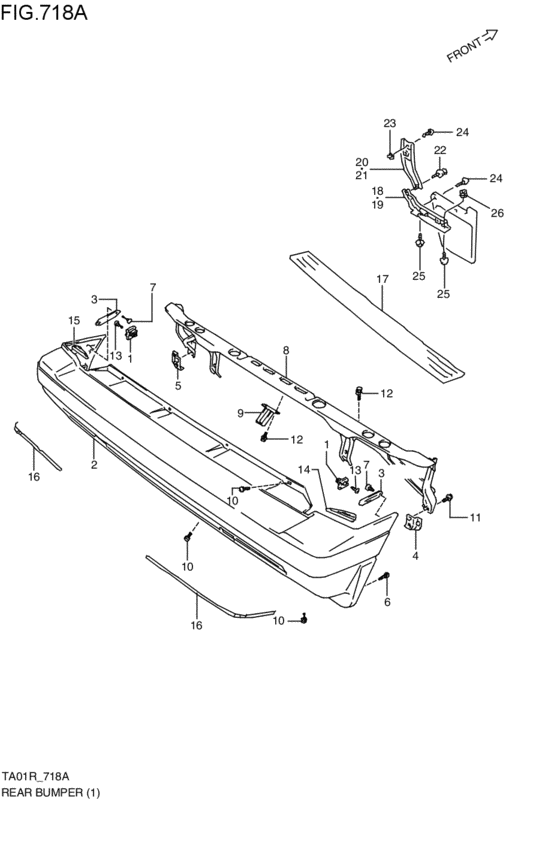

rear bumper (ワゴン; R,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71752-86000-000 SUPPORT,BUMPER SIDER,W; 1988-05-01~1990-07-01 |
71752-86000-000 |
US $3.04 |
||
|
2
|
2
71811-60A00-799
Bumper,rear
プライマリ-; W:(SA,SB,XX); 1988-05-01~1990-07-01 |
71811-60A00-799 |
— | ||
| replacement | |||||
|
2
|
2
71811-60A30-5PK
BAR,RR BUMPER(BLACK)
プライマリ-; W:(SA,SB,XX); 1988-05-01~1990-07-01 |
71811-60A30-5PK |
— | ||
|
3
|
3
71751-86000-000 ATTACHMENT,BUMPER SIDER,W; 1988-05-01~1990-07-01 |
71751-86000-000 |
US $3.04 |
||
|
4
|
4
71812-60A10-000 BRACKET,RR BUMPER OUT SIDE,RR,W; 1988-05-01~1990-07-01 |
71812-60A10-000 |
US $7.25 |
||
|
5
|
5
71813-60A10-000 BRACKET,RR BUMPER OUT SIDE,LR,W; 1988-05-01~1990-07-01 |
71813-60A10-000 |
US $7.95 |
||
|
6
|
6
09139-06052-000
Screw, plate
R,W; 1988-05-01~1990-07-01 |
09139-06052-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-66007-000 SCREW(6X14)R,W; 1988-05-01~1990-07-01 |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
03241-04123-000
Screw
R,W; 1988-05-01~1990-07-01 |
03241-04123-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0412B-000 SCREWR,W; 1988-05-01~1990-07-01 |
03242-0412B-000 |
from US $0.80 |
||
|
8
|
8
71820-60A10-000
MEMBER,RR BUMPER
R,W; 1988-05-01~1990-07-01 |
71820-60A10-000 |
— | ||
|
9
|
9
71854-60A00-000 STAY,RR BUMPER LOWER CTRR,W; 1988-05-01~1990-07-01 |
71854-60A00-000 |
US $8.83 |
||
|
10
|
10
09139-06052-000
Screw, plate
R,W; 1988-05-01~1990-07-01 |
09139-06052-000 |
— | ||
| replacement | |||||
|
10
|
10
09122-66007-000 SCREW(6X14)R,W; 1988-05-01~1990-07-01 |
09122-66007-000 |
from US $0.80 |
||
|
11
|
11
01174-06163-000
ボルト
R,W; 1988-05-01~1990-07-01 |
01174-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0616A-000 BOLTR,W; 1988-05-01~1990-07-01 |
01580-0616A-000 |
from US $0.96 |
||
|
12
|
12
01187-08163-000
ボルト
R,W; 1988-05-01~1990-07-01 |
01187-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0816A-000 BoltR,W; 1988-05-01~1990-07-01 |
01580-0816A-000 |
from US $0.96 |
||
|
13
|
13
03511-05123-000
スクリュ
R,W; 1988-05-01~1990-07-01 |
03511-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0512A-000 SCREWR,W; 1988-05-01~1990-07-01 |
03511-0512A-000 |
from US $0.80 |
||
|
14
|
14
71815-60A01-000 SPACER,REAR BUMPER SIDE,RR,W; 1988-05-01~1990-07-01 |
71815-60A01-000 |
US $26.40 |
||
|
15
|
15
71816-60A01-000 SPACER,REAR BUMPER SIDE,LR,W; 1988-05-01~1990-07-01 |
71816-60A01-000 |
US $26.40 |
||
