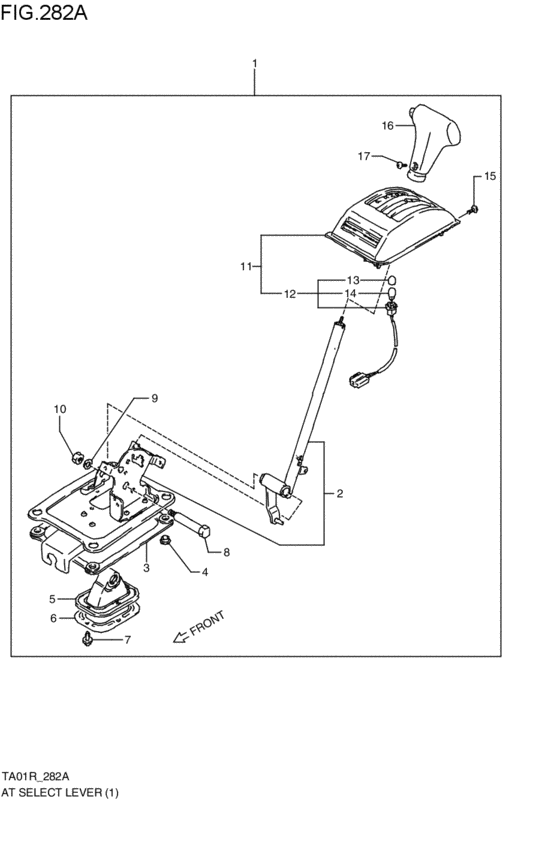

select lever (R-800322マデ,W-802044マデ; 3AT; 1988-05-01~1988-09-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-61A31-000
セレクタアッシ,マニュアル
3AT; 1988-05-01~1988-09-01 |
28100-61A31-000 |
— | ||
|
2
|
2
28100-61820-000
レバー/ハウジングセット
3AT; 1988-05-01~1988-09-01 |
28100-61820-000 |
— | ||
|
3
|
3
28176-61A00-000 GASKET,MANUAL SELECTOR ASSY3AT; 1988-05-01~1988-09-01 |
28176-61A00-000 |
US $11.30 |
||
|
4
|
4
09169-08043-000 WASHER3AT; 1988-05-01~1988-09-01 |
09169-08043-000 |
US $30.20 |
||
|
5
|
5
28174-61A00-000
ブーツ,セレクトレバー,ロア
3AT; 1988-05-01~1988-09-01 |
28174-61A00-000 |
— | ||
|
6
|
6
28175-61A00-000
プレート,セレクトレバーロアブーツ
3AT; 1988-05-01~1988-09-01 |
28175-61A00-000 |
— | ||
|
7
|
7
09409-06313-000 CLIP3AT; 1988-05-01~1988-09-01 |
09409-06313-000 |
from US $3.20 |
||
|
8
|
8
28131-82300-000
シャフト,セレクタレバー
3AT; 1988-05-01~1988-09-01 |
28131-82300-000 |
— | ||
|
9
|
9
08321-21103-000 Lock washer3AT; 1988-05-01~1988-09-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end 3AT; 1988-05-01~1988-09-01 |
08321-0110B-000 |
from US $0.80 |
||
|
9
|
9
08321-0110A-000 WASHER,LOCK3AT; 1988-05-01~1988-09-01 |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
08310-12103-000 Nut3AT; 1988-05-01~1988-09-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT3AT; 1988-05-01~1988-09-01 |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUT3AT; 1988-05-01~1988-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
28150-61A10-000
INDICATOR ASSY,SELECT LEVER
3AT; 1988-05-01~1988-09-01 |
28150-61A10-000 |
— | ||
|
12
|
12
28180-61A00-000 LAMP ASSY,SELECT LEVER ILLUM3AT; 1988-05-01~1988-09-01 |
28180-61A00-000 |
US $11.89 |
||
|
13
|
13
28182-61A00-000 FILTER,BULB3AT; 1988-05-01~1988-09-01 |
28182-61A00-000 |
US $2.58 |
||
|
14
|
14
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 3AT; 1988-05-01~1988-09-01 |
09471-12077-000 |
from US $1.52 |
||
|
15
|
15
02112-15106-000
スクリュ
3AT; 1988-05-01~1988-09-01 |
02112-15106-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0510B-000 SCREWBolt 3AT; 1988-05-01~1988-09-01 |
02142-0510B-000 |
from US $0.76 |
||
|
16
|
16
28160-61A10-5PK
KNOB ASSY,SELECT LEVER
ブラック; 3AT; 1988-05-01~1988-09-01 |
28160-61A10-5PK |
— | ||
|
17
|
17
02142-05065-000
New Genuine Part
3AT; 1988-05-01~1988-09-01 |
02142-05065-000 |
— | ||
| replacement | |||||
|
17
|
17
09125-05117-000 SCREW(5X6)Screw (5x6) 3AT; 1988-05-01~1988-09-01 |
09125-05117-000 |
from US $0.96 |
||
