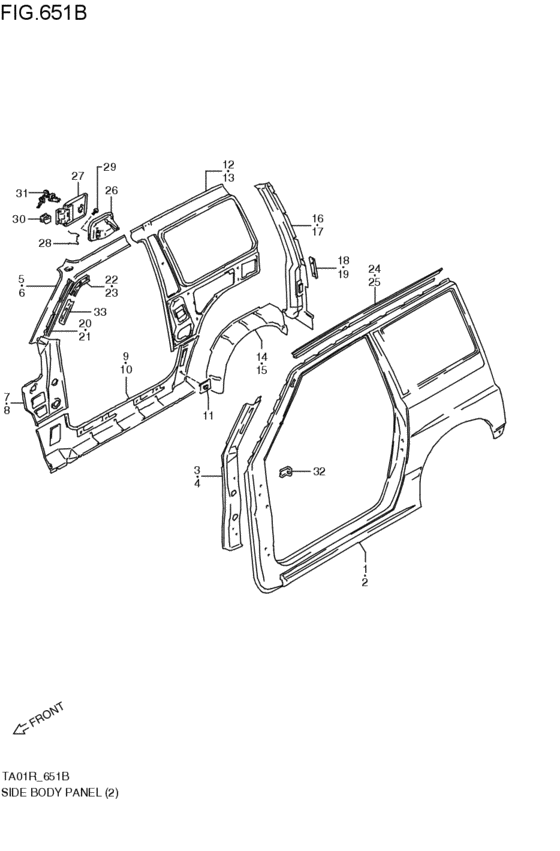

side body panel (ハードトップ; V,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-61A50-000
パネル,サイドボディアウタ,ライト
W; 1988-05-01~1990-07-01 |
64110-61A50-000 |
— | ||
| replacement | |||||
|
1
|
1
64111-61A30-000
Panel,side body outer,r
W; 1988-05-01~1990-07-01 |
64111-61A30-000 |
— | ||
|
2
|
2
64510-61A50-000
パネル,サイドボディアウタ,レフト
V,W; 1988-05-01~1990-07-01 |
64510-61A50-000 |
— | ||
| replacement | |||||
|
2
|
2
64511-61A10-000
Panel,side body outer,l
V,W; 1988-05-01~1990-07-01 |
64511-61A10-000 |
— | ||
|
3
|
3
64120-60A00-000
リンフォースメント,フロントピラー,ライト
V,W; 1988-05-01~1990-07-01 |
64120-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
64120-60A11-000 REINFORCEMENT,FR PILLAR,RV,W; 1988-05-01~1990-07-01 |
64120-60A11-000 |
US $110.21 |
||
|
4
|
4
64520-60A00-000
リンフォースメント,フロントピラー,レフト
V,W; 1988-05-01~1990-07-01 |
64520-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
64520-60A11-000 REINFORCEMENT,FR PILLAR,LV,W; 1988-05-01~1990-07-01 |
64520-60A11-000 |
US $127.70 |
||
|
5
|
5
63111-61A20-000 PANEL,ROOF SIDE INR,RW; 1988-05-01~1990-07-01 |
63111-61A20-000 |
US $55.57 |
||
|
6
|
6
63511-61A20-000
PANEL,ROOF SIDE INR,L
W; 1988-05-01~1990-07-01 |
63511-61A20-000 |
— | ||
|
7
|
7
61480-60A01-000
パネル,フロントピラーインナロア,ライト
V,W; 1988-05-01~1990-07-01 |
61480-60A01-000 |
— | ||
| replacement | |||||
|
7
|
7
61480-62A10-000
Panel,fr pilla inr lwr,r
V,W; 1988-05-01~1990-07-01 |
61480-62A10-000 |
— | ||
|
8
|
8
61580-60A01-000
パネル,フロントピラーインナロア,レフト
V,W; 1988-05-01~1990-07-01 |
61580-60A01-000 |
— | ||
| replacements | |||||
|
8
|
8
09100-08294-000 BOLT(8X13)V,W; 1988-05-01~1990-07-01 |
09100-08294-000 |
US $12.50 |
||
|
8
|
8
61580-62A00-000
Panel comp,fr pillar inr lwr,l
V,W; 1988-05-01~1990-07-01 |
61580-62A00-000 |
— | ||
|
9
|
9
61490-60A00-000
PANEL,SILL SIDE INNER,R
V,W; 1988-05-01~1990-07-01 |
61490-60A00-000 |
— | ||
|
10
|
10
61590-60A00-000 PANEL,SILL SIDE INNER,LV,W; 1988-05-01~1990-07-01 |
61590-60A00-000 |
US $200 |
||
|
11
|
11
61492-80000-000
リンフォースメント,シートベルト,ロア
V,W; 1988-05-01~1990-07-01 |
61492-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
61492-80010-000 REINFORCEMENT,SEAT BELT LOWERV,W; 1988-05-01~1990-07-01 |
61492-80010-000 |
US $5.63 |
||
|
12
|
12
63210-61A50-000
パネル,サイドボディインナ,ライト
W; 1988-05-01~1990-07-01 |
63210-61A50-000 |
— | ||
| replacement | |||||
|
12
|
12
63210-61X02-000
Panel, side body inner rh
W; 1988-05-01~1990-07-01 |
63210-61X02-000 |
— | ||
|
13
|
13
63610-61A50-000
パネル,サイドボディインナ,レフト
W; 1988-05-01~1990-07-01 |
63610-61A50-000 |
— | ||
| replacement | |||||
|
13
|
13
63610-61X02-000
Panel, side body inner lh
W; 1988-05-01~1990-07-01 |
63610-61X02-000 |
— | ||
|
14
|
14
63410-60A00-000 PANEL,WHEEL HOUSING OUTER,RV,W; 1988-05-01~1990-07-01 |
63410-60A00-000 |
US $209.60 |
||
|
15
|
15
63811-60A00-000 PANEL,RR WHEEL HSG OTR,LV,W; 1988-05-01~1990-07-01 |
63811-60A00-000 |
US $209.60 |
||
|
16
|
16
64310-61A00-000
パネル,バックピラーアウタ,ライト
V,W; 1988-05-01~1990-07-01 |
64310-61A00-000 |
— | ||
| replacement | |||||
|
16
|
16
64310-61A01-000 PANEL,BACK PILLAR OUTER,RV,W; 1988-05-01~1990-07-01 |
64310-61A01-000 |
US $189.52 |
||
|
17
|
17
64710-61A00-000
パネル,バックピラーアウタ,レフト
V,W; 1988-05-01~1990-07-01 |
64710-61A00-000 |
— | ||
| replacement | |||||
|
17
|
17
64710-61A22-000 PANEL,BACK PILLAR OUTER,LV,W; 1988-05-01~1990-07-01 |
64710-61A22-000 |
US $307.28 |
||
|
18
|
18
65965-61A00-000 GARNISH,BACK PLR,RV,W; 1988-05-01~1990-07-01 |
65965-61A00-000 |
US $32.38 |
||
|
19
|
19
65966-61A00-000 GARNISH,BACK PLR,LV,W; 1988-05-01~1990-07-01 |
65966-61A00-000 |
US $32.38 |
||
|
20
|
20
64130-61A00-000 PANEL,FRONT WINDOW SIDE,RV,W; 1988-05-01~1990-07-01 |
64130-61A00-000 |
US $33.30 |
||
|
21
|
21
64530-61A00-000 PANEL,FRONT WINDOW SIDE,LV,W; 1988-05-01~1990-07-01 |
64530-61A00-000 |
US $44.16 |
||
|
22
|
22
64141-61A00-000 REINFORCEMENT,FR PILLAR UPR,RV,W; 1988-05-01~1990-07-01 |
64141-61A00-000 |
US $13.87 |
||
|
23
|
23
64541-61A00-000 REINFORCEMENT,FR PILLAR UPR,LV,W; 1988-05-01~1990-07-01 |
64541-61A00-000 |
US $13.87 |
||
|
24
|
24
64241-61A00-000
RAIL,ROOF SIDE OUTER,R
V,W; 1988-05-01~1990-07-01 |
64241-61A00-000 |
— | ||
|
25
|
25
64641-61A00-000
RAIL,ROOF SIDE OUTER,L
V,W; 1988-05-01~1990-07-01 |
64641-61A00-000 |
— | ||
|
26
|
26
64231-60A10-000
BOX,FUEL INLET
W; 1988-05-01~1990-07-01 |
64231-60A10-000 |
— | ||
|
27
|
27
65950-60A20-000 LID,FUEL INLETW; 1989-12-01~1990-07-01 |
65950-60A20-000 |
US $44.53 |
||
|
27
|
27
65951-60A20-000
リッド,フューエルインレット
W; 1988-05-01~1989-12-01 |
65951-60A20-000 |
— | ||
| replacements | |||||
|
27
|
27
65950-60A20-000 LID,FUEL INLETW; 1988-05-01~1989-12-01 |
65950-60A20-000 |
US $44.53 |
||
|
27
|
27
76531-60A20-000 SPRING,FUEL LID NO.2W; 1988-05-01~1989-12-01 |
76531-60A20-000 |
US $5.67 |
||
|
27
|
27
77117-60B00-000 STOPPER,FUEL LIDW; 1988-05-01~1989-12-01 |
77117-60B00-000 |
US $1.76 |
||
|
27
|
27
77131-60A10-000 CUSHION,FUEL LIDW; 1988-05-01~1989-12-01 |
77131-60A10-000 |
US $2.94 |
||
|
28
|
28
65952-60A00-000
Hinge,fuel inlet lid
V,W; 1988-05-01~1990-07-01 |
65952-60A00-000 |
— | ||
| replacement | |||||
|
28
|
28
65952-60A0V-000
Hinge,fuel inlet lid
V,W; 1988-05-01~1990-07-01 |
65952-60A0V-000 |
— | ||
|
29
|
29
02152-05123-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
02152-05123-000 |
— | ||
| replacements | |||||
|
29
|
29
02142-0512A-000 SCREWScrew, lower V,W; 1988-05-01~1990-07-01 |
02142-0512A-000 |
from US $0.80 |
||
|
29
|
29
02112-1512A-000 SCREWV,W; 1988-05-01~1990-07-01 |
02112-1512A-000 |
US $9.90 |
||
|
30
|
30
77132-60A00-000
ストッパ,フューエルリッド
V,W; 1989-12-01~1990-07-01 |
77132-60A00-000 |
— | ||
| replacement | |||||
|
30
|
30
77117-60B00-000 STOPPER,FUEL LIDV,W; 1989-12-01~1990-07-01 |
77117-60B00-000 |
US $1.76 |
||
|
32
|
32
64214-60A00-000 BRACKET,COWL SIDE GARNISH RRV,W; 1988-05-01~1990-07-01 |
64214-60A00-000 |
US $3.64 |
||
|
33
|
33
64151-60A00-000 REINFORCEMENT,RADIO ANTENNAV,W; 1988-05-01~1990-07-01 |
64151-60A00-000 |
US $6.59 |
||
